Overview

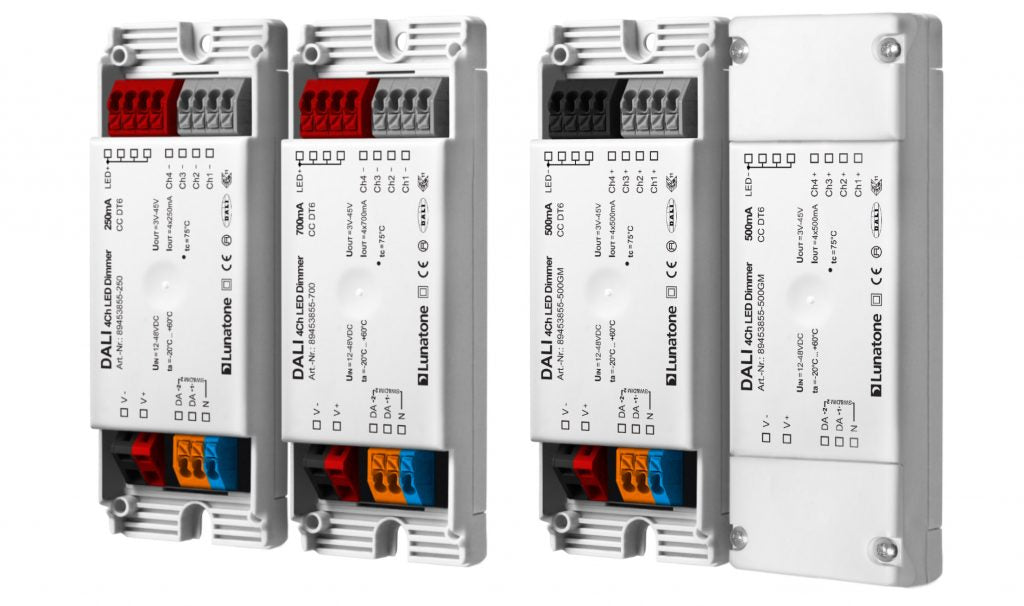

• The 4-channel DALI LED Dimmer is designed for constant current LED modules.
• It supports two operating modes: DT6 for individual channel control using 4 DALI addresses, and Colour&Dim, which uses 2 DALI addresses—one for light level adjustment and one for color adjustment.
• Additionally, SwitchDim2 mode allows control of light level and color with 2 switch inputs, bypassing DALI.
• The dimmer offers a dimming range from 0.1% to 100% and comes in versions with a common plus connector for currents up to 500mA or a common minus connector (GM) for currents up to 700mA.
• It is an independent control gear suitable for integrating into luminaires (Class II) and for remote ceiling installations.
• The device operates with a supply voltage of 12V to 48V DC and provides an output voltage of up to 45V DC.

Overview

• The 4-channel DALI LED Dimmer is designed for constant current LED modules.
• It supports two operating modes: DT6 for individual channel control using 4 DALI addresses, and Colour&Dim, which uses 2 DALI addresses—one for light level adjustment and one for color adjustment.
• Additionally, SwitchDim2 mode allows control of light level and color with 2 switch inputs, bypassing DALI.
• The dimmer offers a dimming range from 0.1% to 100% and comes in versions with a common plus connector for currents up to 500mA or a common minus connector (GM) for currents up to 700mA.
• It is an independent control gear suitable for integrating into luminaires (Class II) and for remote ceiling installations.
• The device operates with a supply voltage of 12V to 48V DC and provides an output voltage of up to 45V DC.

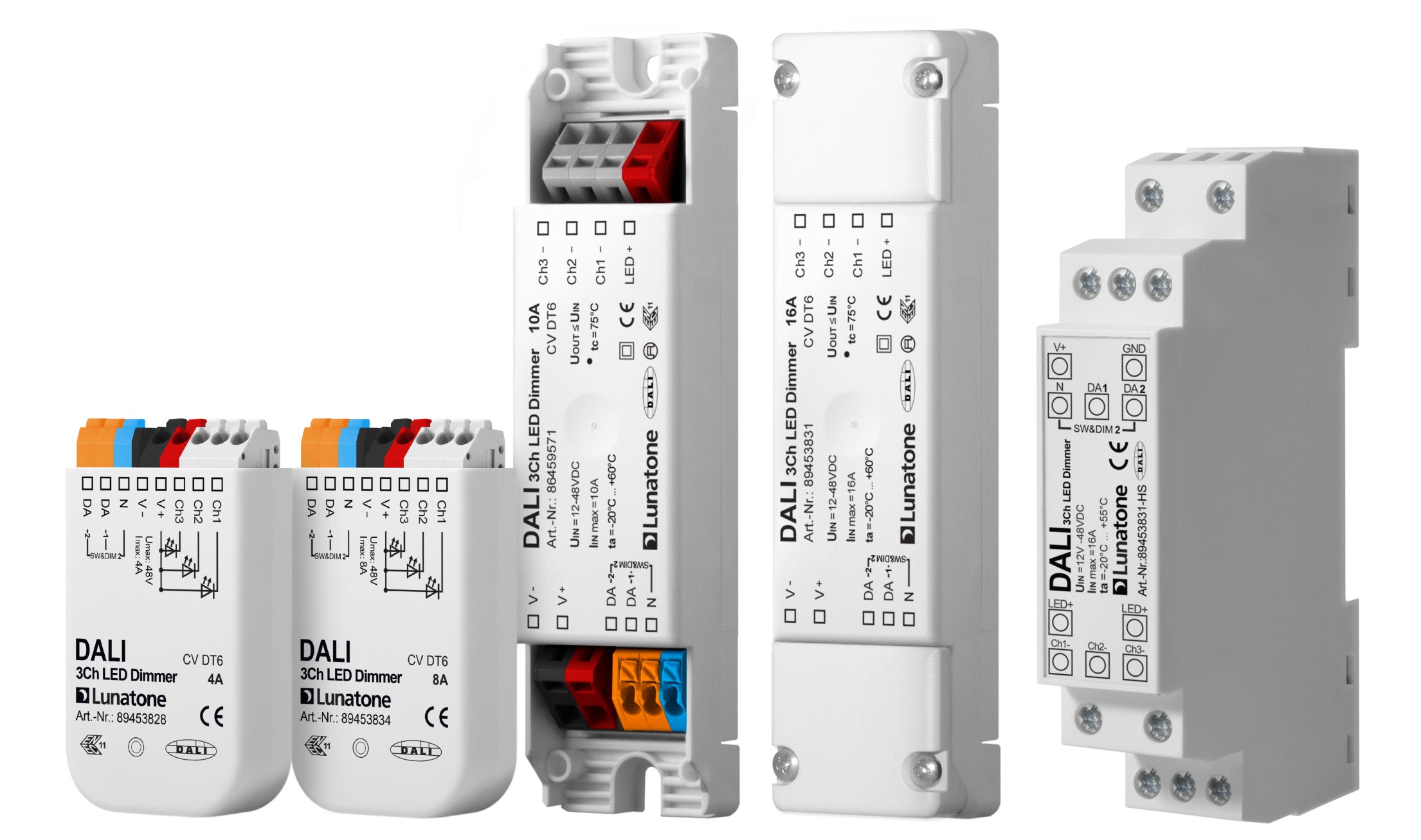

Overview

• The 3-channel DALI LED Dimmer is designed for constant voltage LED modules operating between 12V and 48V.
• It offers two main operating modes:
• DT6: Each channel can be controlled via its own DALI address (3 addresses total).
• Colour&Dim: Uses 2 DALI addresses—one for light level adjustment and one for color adjustment.
• SwitchDim2: Provides control via 2 switch inputs for light level and color without DALI.
• The dimmer supports a range of 0.1% to 100% dimming and features adjustable PWM frequencies (122Hz, 244Hz, 488Hz, 976Hz; with firmware version 4.6 and later, frequencies are 250Hz, 500Hz, 1kHz).
• It is compact for integration in luminaires and remote ceiling applications.
• The supply voltage ranges from 12V to 48V DC, with maximum input currents of 4A, 8A, 10A, or 16A, which can be distributed among the channels (max 10A per channel).
• The dimmer is energy-efficient with low standby power consumption and is configurable via PC software DALICockpit and a DALI USB interface.
• It includes user-friendly factory default settings.

Overview

• The 3-channel DALI LED Dimmer is designed for constant voltage LED modules operating between 12V and 48V. It offers two main operating modes:
• DT6: Each channel can be controlled via its own DALI address (3 addresses total).
• Colour&Dim: Uses 2 DALI addresses—one for light level adjustment and one for color adjustment.
• SwitchDim2: Provides control via 2 switch inputs for light level and color without DALI.
• The dimmer supports a range of 0.1% to 100% dimming and features adjustable PWM frequencies (122Hz, 244Hz, 488Hz, 976Hz; with firmware version 4.6 and later, frequencies are 250Hz, 500Hz, 1kHz).
• It is compact for integration in luminaires and remote ceiling applications.
• The supply voltage ranges from 12V to 48V DC, with maximum input currents of 4A, 8A, 10A, or 16A, which can be distributed among the channels (max 10A per channel).

Overview

• The 3-channel DALI LED Dimmer is designed for constant voltage LED modules operating between 12V and 48V.
•  It offers two main operating modes:
• DT6: Each channel can be controlled via its own DALI address (3 addresses total).
• Colour&Dim: Uses 2 DALI addresses—one for light level adjustment and one for color adjustment.
• SwitchDim2: Provides control via 2 switch inputs for light level and color without DALI.
• The dimmer supports a range of 0.1% to 100% dimming and features adjustable PWM frequencies (122Hz, 244Hz, 488Hz, 976Hz; with firmware version 4.6 and later, frequencies are 250Hz, 500Hz, 1kHz).
• It is compact for integration in luminaires and remote ceiling applications.
• The supply voltage ranges from 12V to 48V DC, with maximum input currents of 4A, 8A, 10A, or 16A, which can be distributed among the channels (max 10A per channel).

Overview

• The 3-channel DALI LED Dimmer is designed for constant voltage LED modules operating between 12V and 48V. It offers two main operating modes:
• DT6: Each channel can be controlled via its own DALI address (3 addresses total).
• Colour&Dim: Uses 2 DALI addresses—one for light level adjustment and one for color adjustment.
• SwitchDim2: Provides control via 2 switch inputs for light level and color without DALI.
• The dimmer supports a range of 0.1% to 100% dimming and features adjustable PWM frequencies (122Hz, 244Hz, 488Hz, 976Hz; with firmware version 4.6 and later, frequencies are 250Hz, 500Hz, 1kHz).
• It is compact for integration in luminaires and remote ceiling applications.
• The supply voltage ranges from 12V to 48V DC, with maximum input currents of 4A, 8A, 10A, or 16A, which can be distributed among the channels (max 10A per channel).

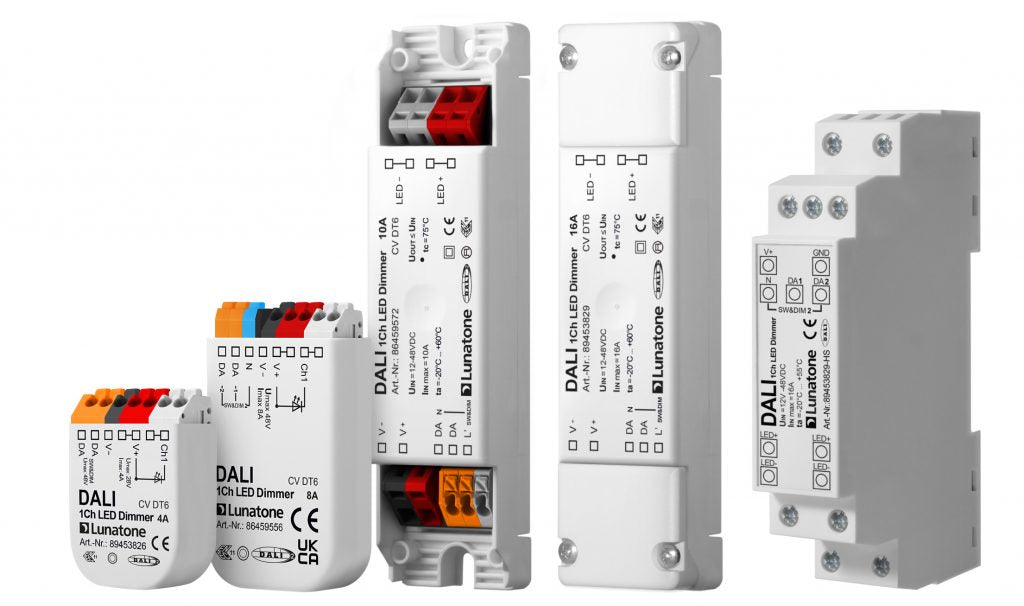

Overview

• The 1-channel DALI LED Dimmer is designed for constant voltage LED modules with operating voltages from 12V to 48V.
• It supports Sw&Dim and SwitchDim2 modes, allowing light level control through 1 or 2 switch inputs without DALI.
• From firmware version 4.0 onward, the device can also be controlled directly by a motion sensor, enabling the "corridor function."
• The dimmer is compact, suitable for integration into luminaires or remote ceiling installations.
• It supports maximum input currents of 4A, 8A, 10A, or 16A, depending on the type.
• The dimmer features low standby power consumption, high efficiency, and is configured via PC software DALICockpit and a DALI USB interface.
• It also comes with user-friendly factory default settings.

Overview

• The 1-channel DALI LED Dimmer is designed for constant voltage LED modules with operating voltages from 12V to 48V.
• It supports Sw&Dim and SwitchDim2 modes, allowing light level control through 1 or 2 switch inputs without DALI.
• From firmware version 4.0 onward, the device can also be controlled directly by a motion sensor, enabling the "corridor function."
• The dimmer is compact, suitable for integration into luminaires or remote ceiling installations.
• It supports maximum input currents of 4A, 8A, 10A, or 16A, depending on the type.
• The dimmer features low standby power consumption, high efficiency, and is configured via PC software DALICockpit and a DALI USB interface.
• It also comes with user-friendly factory default settings.

Overview

• The DALI dimmer is designed for dimming 230V LED retrofit bulbs via DALI (Device Type 4 from firmware 3.0 onward).
• It is available in various types to support different loads: 3W to 25W (PD) for back box installation and 10W to 300W (PD300) for remote ceiling and DIN rail installations.
• The dimmer supports trailing edge phase cut for resistive and capacitive loads, leading edge phase cut for resistive and inductive loads, and is also available as a universal dimmer.
• It converts the DALI dim level into a phase cut controlled voltage, either trailing or leading edge.
• The minimum dim level can be set via DALI (MIN LEVEL), and an additional operating mode as a switch (DT7 compliant) is available from firmware 3.5 onward.
• The module functions as a DALI-line client, possessing its own DALI address.
• It also features double DALI terminals, allowing the DALI signal line to be connected through.

Overview

• The DALI dimmer is designed for dimming 230V LED retrofit bulbs via DALI (Device Type 4 from firmware 3.0 onward).
• It is available in various types to support different loads: 3W to 25W (PD) for back box installation and 10W to 300W (PD300) for remote ceiling and DIN rail installations.
• The dimmer supports trailing edge phase cut for resistive and capacitive loads, leading edge phase cut for resistive and inductive loads, and is also available as a universal dimmer.
• It converts the DALI dim level into a phase cut controlled voltage, either trailing or leading edge.
• The minimum dim level can be set via DALI (MIN LEVEL), and an additional operating mode as a switch (DT7 compliant) is available from firmware 3.5 onward.
• The module functions as a DALI-line client, possessing its own DALI address.
• It also features double DALI terminals, allowing the DALI signal line to be connected through.

Overview

• The DALI dimmer is designed for dimming 230V LED retrofit bulbs via DALI (Device Type 4 from firmware 3.0 onward).
• It is available in various types to support different loads: 3W to 25W (PD) for back box installation and 10W to 300W (PD300) for remote ceiling and DIN rail installations.
• The dimmer supports trailing edge phase cut for resistive and capacitive loads, leading edge phase cut for resistive and inductive loads, and is also available as a universal dimmer.
• It converts the DALI dim level into a phase cut controlled voltage, either trailing or leading edge.
• The minimum dim level can be set via DALI (MIN LEVEL), and an additional operating mode as a switch (DT7 compliant) is available from firmware 3.5 onward.
• The module functions as a DALI-line client, possessing its own DALI address.
•  It also features double DALI terminals, allowing the DALI signal line to be connected through.

Overview

• 4 channel relay control
• For the control of switched ballast via DALI
• Suitable for circuit breakers and relays with coils-voltages of 12V to 48V DC
• 4 DALI adresses, one for each channel (Device Type 7)
• Configuration with DALI-Cockpit software tool and DALI USB-Interface
• 2 types of housing
• Maximum input current 8A
• Maximum output current of 2A per channel

Overview

• The compact DALI relay module allows direct control of 230V AC loads via DALI and is available in DALI-2 certified variants (art. nr.: 86456944-_ and 86456203 -_).
• It enables integration of ballasts without DALI input into a DALI lighting control system, allowing loads to be switched ON and OFF by DALI commands.
• The DALI RM8/16 module meets the requirements for DALI Device Type 7 (switching function) with firmware 2.0 and higher.
• This module includes configurable Power-Up and System-Failure behavior and is supported by the free DALI-Cockpit software package for configuring DALI systems and Lunatone DALI components.
• The RM8/16 is powered directly by the DALI signal line and features zero-cross switching.
• The RM16-HS and RM16-DE variants (art. nr.: 86458629-HS, 86456203-HS, 86458629-DE, 86456203-DE) include an integrated current limiter, making them suitable for loads with high inrush current (>100A).
• The DALI RM8/16 module functions like any conventional DALI ballast, allowing it to be addressed and configured as needed.

Overview

• The compact DALI relay module allows direct control of 230V AC loads via DALI and is available in DALI-2 certified variants (art. nr.: 86456944-_ and 86456203 -_).
• It enables integration of ballasts without DALI input into a DALI lighting control system, allowing loads to be switched ON and OFF by DALI commands.
• The DALI RM8/16 module meets the requirements for DALI Device Type 7 (switching function) with firmware 2.0 and higher.
• This module includes configurable Power-Up and System-Failure behavior and is supported by the free DALI-Cockpit software package for configuring DALI systems and Lunatone DALI components.
• The RM8/16 is powered directly by the DALI signal line and features zero-cross switching.
• The RM16-HS and RM16-DE variants (art. nr.: 86458629-HS, 86456203-HS, 86458629-DE, 86456203-DE) include an integrated current limiter, making them suitable for loads with high inrush current (>100A).
• The DALI RM8/16 module functions like any conventional DALI ballast, allowing it to be addressed and configured as needed.

Overview

• Module converting DALI dimming commands into PWM signal
• Easy integration of electronic ballast with PWM control input (e.g.Meanwell HLG, HLN, NPF or LPF series) in DALI lighting systems
• Advantage of fail-safe digital signal data communication compared to types with analog output voltage
• Transformation of DALI 8-Bit arc power level into PWM output signal (~500Hz) from 0% to 100%
• Selection of linear or logarithmic dimming curve (DT5)
• Output range selectable between 0-100% and 10-100% (DT5)

Overview

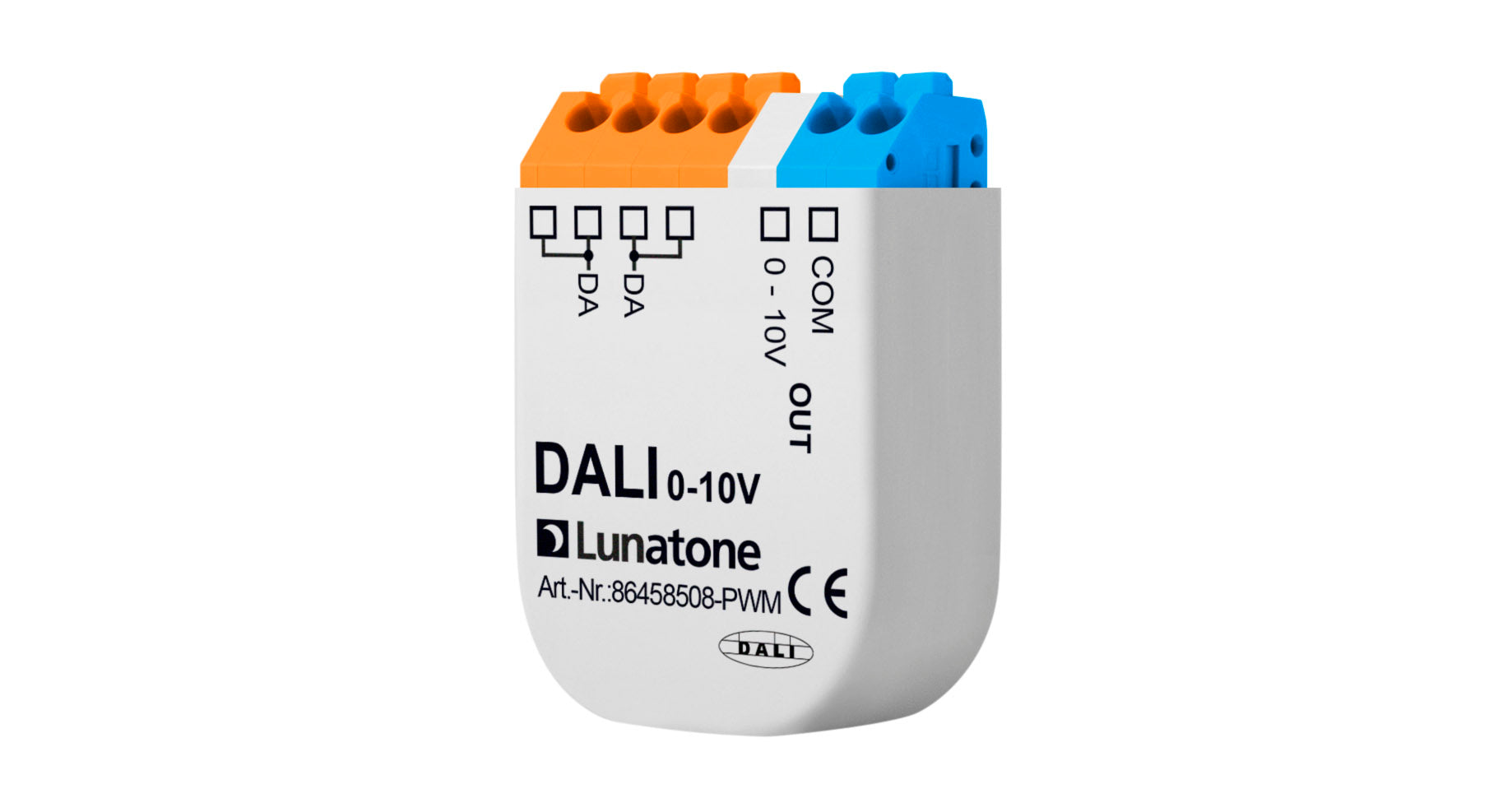

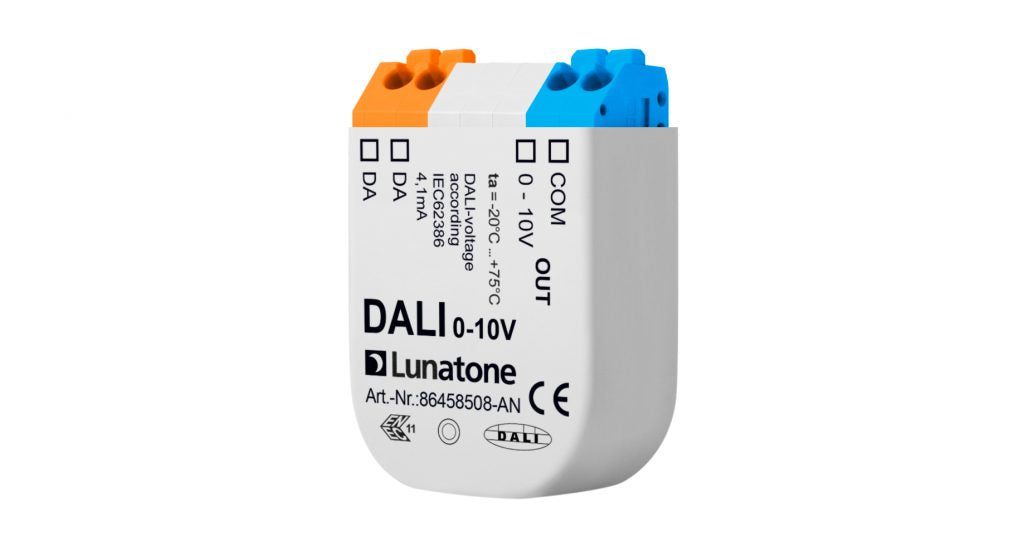

• Module converting DALI dimming commands into analogue 0-10V signal (DALI DT5)
• The module is especially designed to operate with drivers with 0-10V control input
• Transformation of DALI 8-Bit arc power level into analogue output signal from 0V to 10V
• Selection of linear or logarithmic dimming curve (DT5)
• Factory default are the default DT5 settings: output range 1-10V, logarithmic dimming curve
• Maximum output current of 1mA (current sink)
• The DALI 0-10V must not be connected to the mains. It is supplied directly by the DALI signal line.

Overview

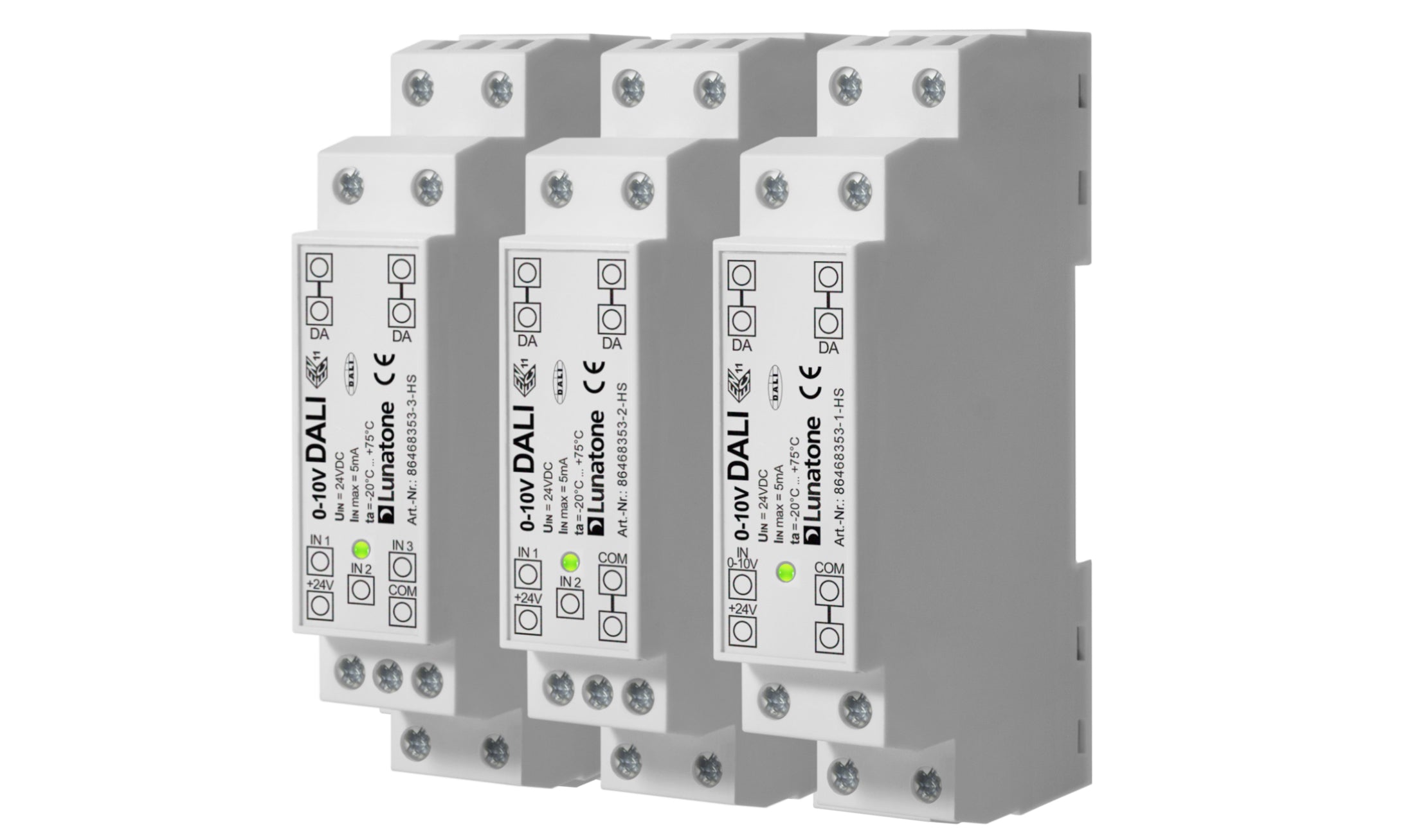

• Small interface module for the conversion of 0-10V control signals to DALI dim levels
• Devices with 1, 2 and 3 channels available
• The 0-10V voltage is transformed to a a DALI dim level and DALI-command Off and sent to the defined effective range on the DALI line
• A change on the 0-10V input voltage (<1%) is used as event trigger
• Supply voltage 12V to 24V DC (e.g. 24V/300mA Art.Nr. 24166012-24HS), multiple devices can be supplied by the same supply voltage
• Configuration of effective range and conversion characteristic (conversion curve and behaviour below 1V input voltage) via DALI-Cockpit and DALIUSB-interface

Overview

• Small interface module for the conversion of 0-10V control signals to DALI dim levels
• Devices with 1, 2 and 3 channels available
• The 0-10V voltage is transformed to a a DALI dim level and DALI-command Off and sent to the defined effective range on the DALI line
• A change on the 0-10V input voltage (<1%) is used as event trigger
• Supply voltage 12V to 24V DC (e.g. 24V/300mA Art.Nr. 24166012-24HS), multiple devices can be supplied by the same supply voltage
• Configuration of effective range and conversion characteristic (conversion curve and behaviour below 1V input voltage) via DALI-Cockpit and DALIUSB-interface

Overview

• Compact interface module for the conversion of 0-10V control signals to DALI dim levels
• The interface module provides a 30mA DALI power supply for up to 10 standard DALI ballasts, up to 64 ballasts controllable with the help of a DALI-Expander
• Passive and active 0-10V input
• The converted value is sent broadcast on the DALI subnet
• A change in the 0-10V input voltage signal (>1%) is used as trigger event.

Overview

• DALI control module with 4 switching inputs for mains voltage
• Galvanic isolation between switching input and DALI-line
• Configurable function for each input
• Destination address, switching mode and DALI-commands can be assigned to each input
• DALI DT8 support for adjustable white luminaires with the help of special macros
• Adjustable „power-up“-function
• The function of the switching input can be configured with the help of the DALI Cockpit and a DALI USB interface
• Multi-master capability, several modules can be installed on the same DALI-line
• Suitable for installation in protection class II devices or back box installation
