LUNATONE

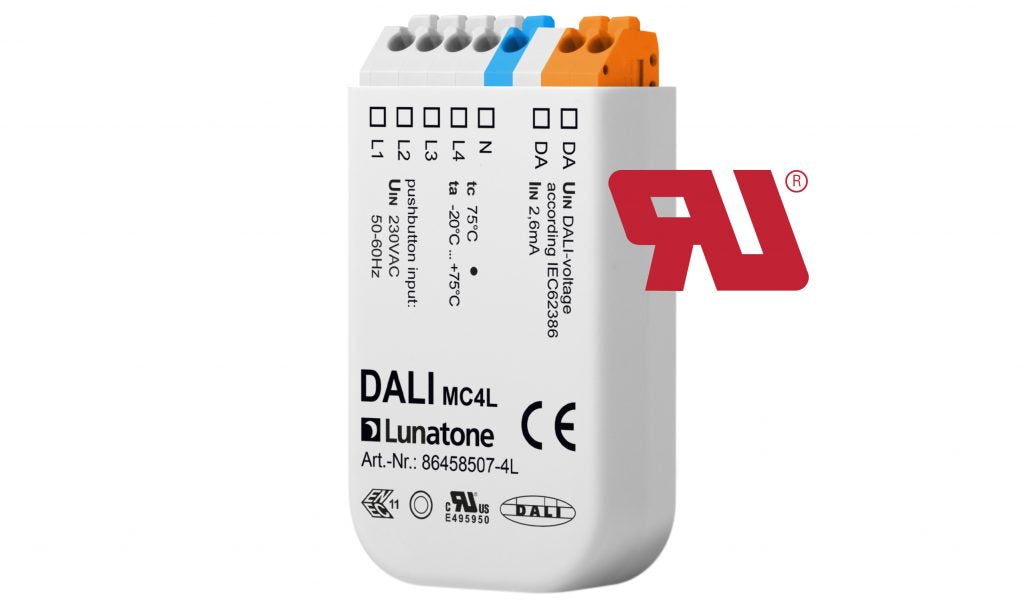

Overview

• DALI control module with 4 switching inputs for mains voltage
• Galvanic isolation between switching input and DALI-line
• Configurable function for each input
• Destination address, switching mode and DALI-commands can be assigned to each input
• DALI DT8 support for adjustable white luminaires with the help of special macros Adjustable „power up“-function
• The function of the switching input can be configured with the help of the DALI Cockpit and a DALI USB interface
• Multi-master capability, several modules can be installed on the same DALI-line
• Suitable for installation in protection class II devices or back box installation

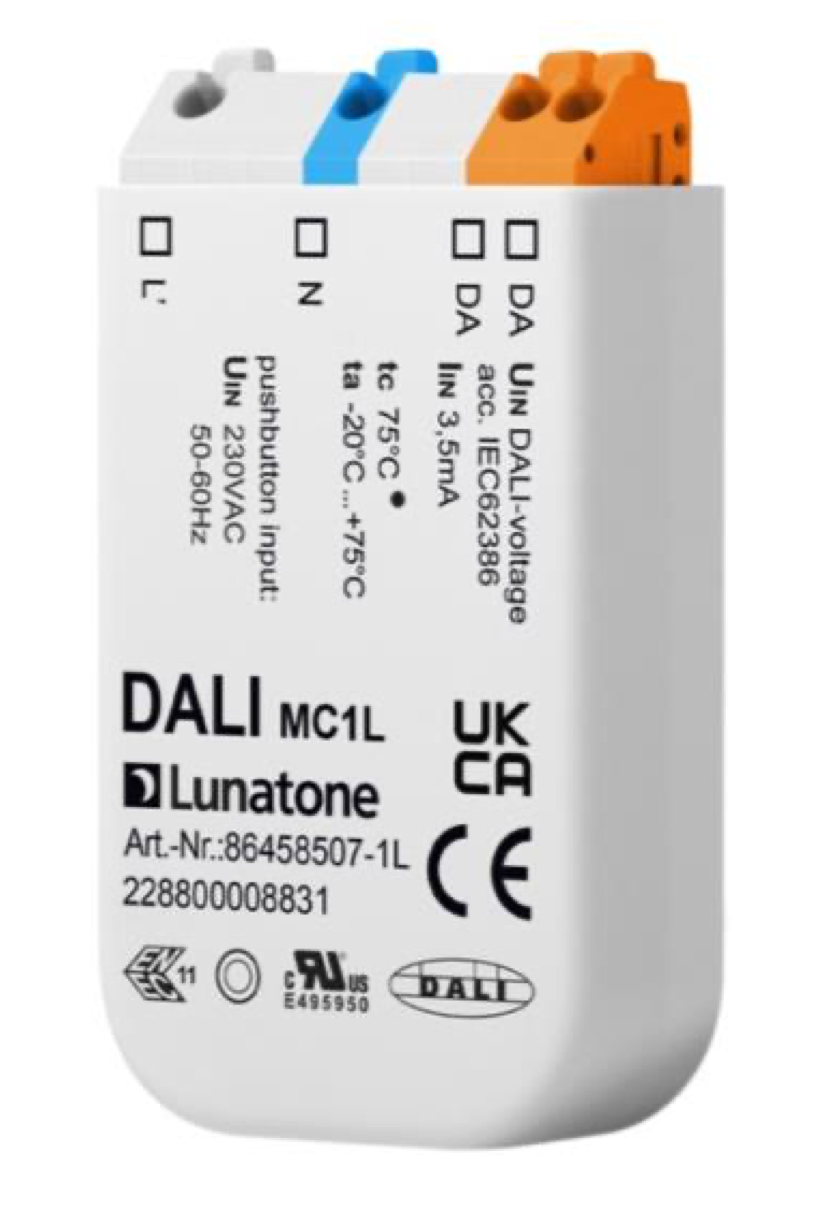

Overview

• DALI-2 control module with 2 switching inputs for mains voltage
• Version with integrated DALI Bus power supply (50mA) – article number: 86458507-1L-PS
• Galvanic isolation between switching input and DALI-line
• Application controller: different DALI commands, destination addresses and switching modes can be assigned to each input.
• Multi-master capability, several modules can be installed on the same DALI-line.
• DALI DT8 support for adjustable white luminaires with the help of special macros

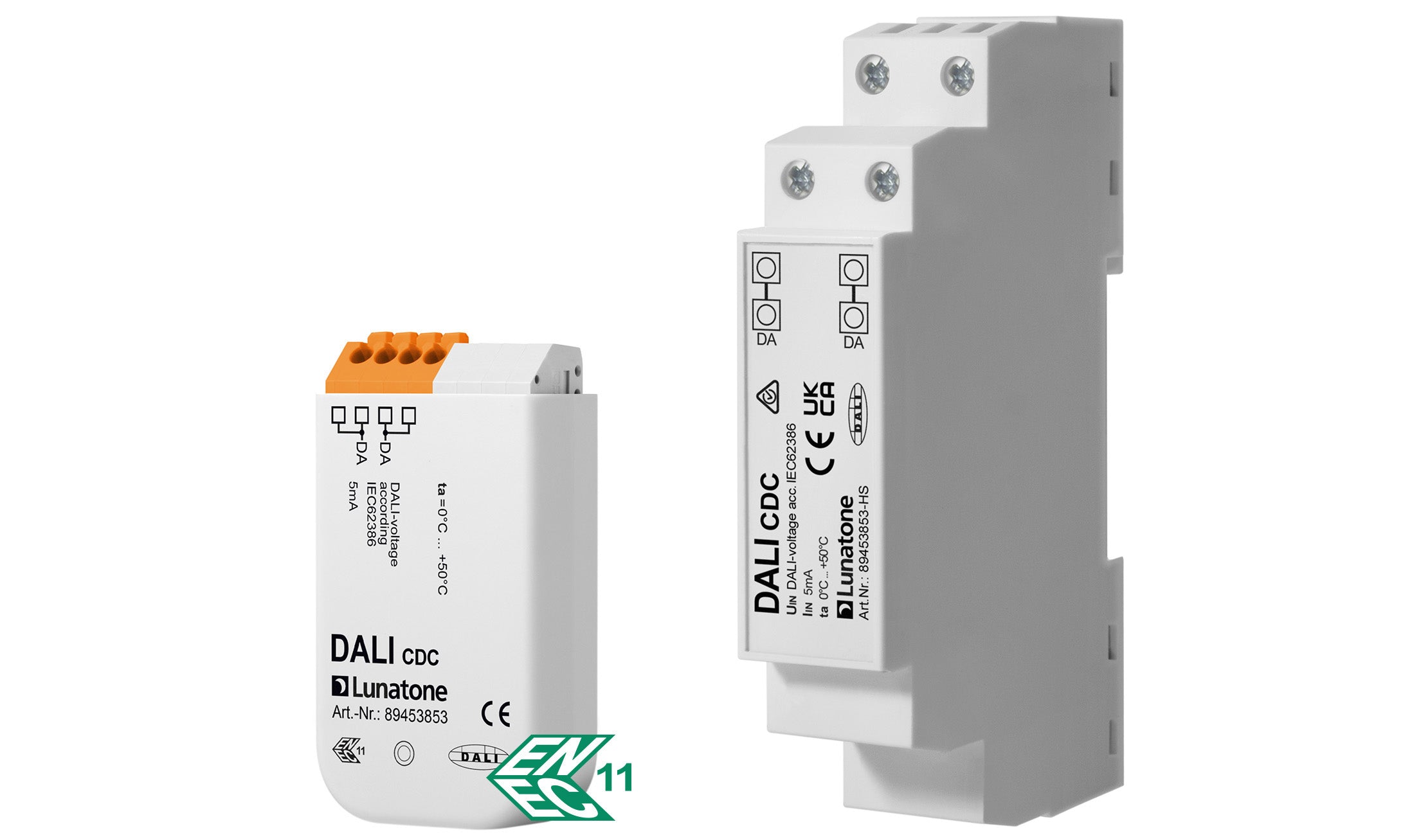

Overview

• Control device for DALI DT8 uminaires (colour mode Tc)
• Ciorhythmic time-adjusted colour temperature (Tc) reference value
• DALI real time clock
• Daylight saving time (DST)
• Configurable scene behaviour (firmware 1.5+)
• Light level curve (firmware 2.0+)
• The time and the colour temperature characteristics over time can be configured with the help of the DALI Cockpit software tool
• The DALI CDC module is supplied directly via the DALI line, no additional power supply is required.
• A battery is included, the clock is set to local time (GMT+1) as factory default
• Simple installation due to DALI double-clamp connector
• Types for backbox installation and DIN rail mounting, suitable for installation in protection class II devices

Overview

• Control device for DALI DT8 uminaires (colour mode Tc)
• Ciorhythmic time-adjusted colour temperature (Tc) reference value
• DALI real time clock
• Daylight saving time (DST) Configurable scene behaviour (firmware 1.5+) Light level curve (firmware 2.0+)
• The time and the colour temperature characteristics over time can be configured with the help of the DALI Cockpit software tool
• The DALI CDC module is supplied directly via the DALI line, no additional power supply is required.
• A battery is included, the clock is set to local time (GMT+1) as factory default
• Simple installation due to DALI double-clamp connector
• Types for backbox installation and DIN rail mounting, suitable for installation in protection class II devices

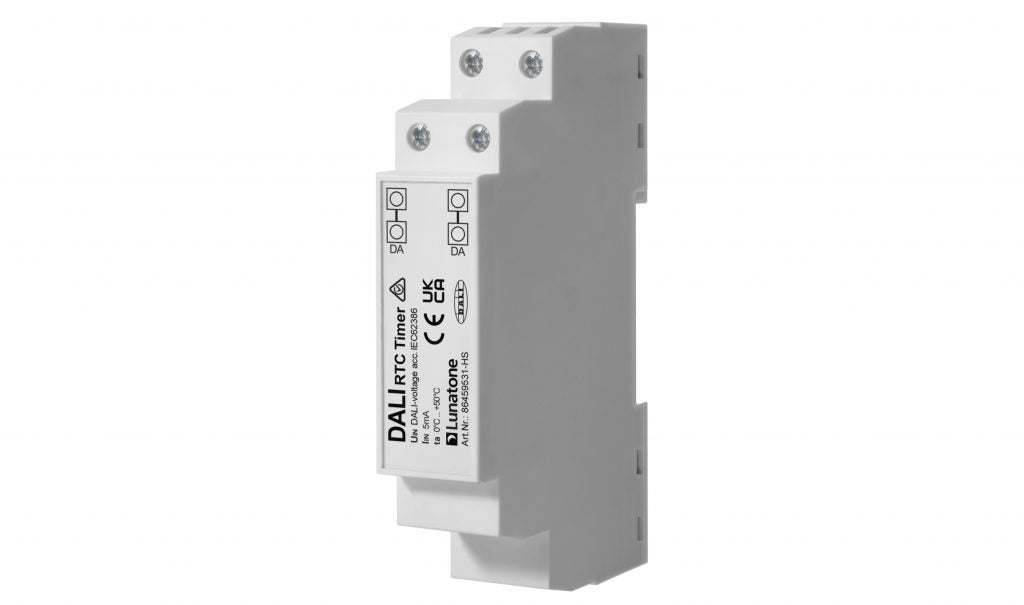

• DALI Real Time Clock
• Time can be set and queried via DALI
• Scheduler Function – up to 28 entries
• Astro-clock function (up from firmware 2.4)
• For each scheduler job weekday mask, time stamp and a DALI command can be defined
• Easy schedule configuration via DALI Cockpit software tool and DALI USB interface
• Daylight saving mode
• The DALI RTC module must not be connected to the mains. It is supplied directly via the DALI signal line.
• Battery inside, as factory default the clock is set to local time (GMT+1)
• Simple installation due to DALI double-clamp connector
• Types for backbox installation and DIN rail mounting, suitable for installation in protection class II devices

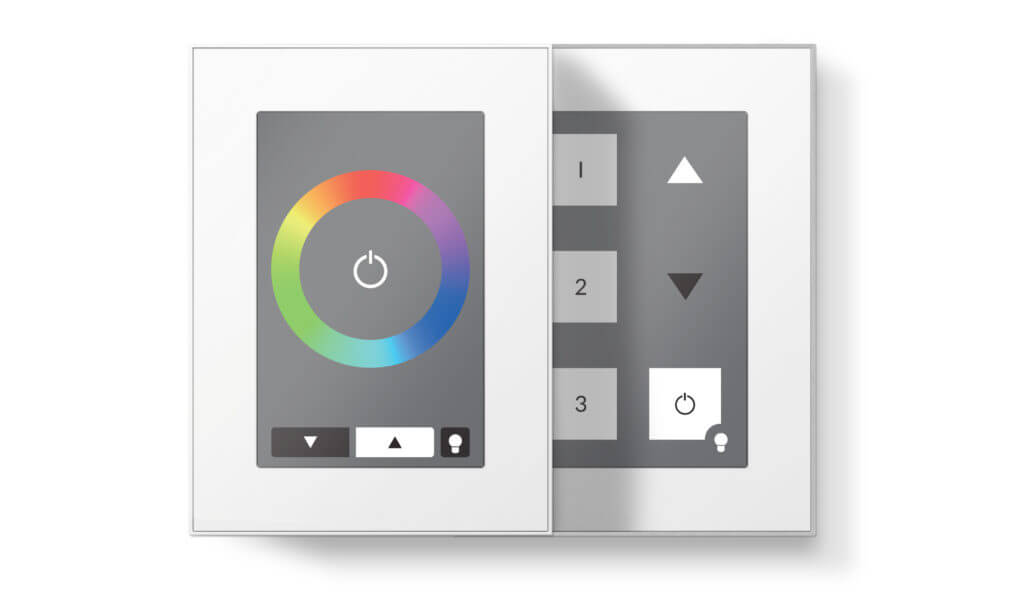

Overview

• Control device for DALI-systems
• 4 standard layouts for colour and colour temperature control and Switching/Dimming
• Individual layout configuration (up from firmware 4.8)
• Configuration with DALI-Cockpit software tool and DALI-USB interface
• Multimaster capable - multiple touch panels can be installed on the same DALI-line.
• Frame material in plastic
• Customized frame colours and directly printed surface for OEM
• The DALI touch panel can be mounted on a conduit box.
• The module is supplied directly via the DALI signal line

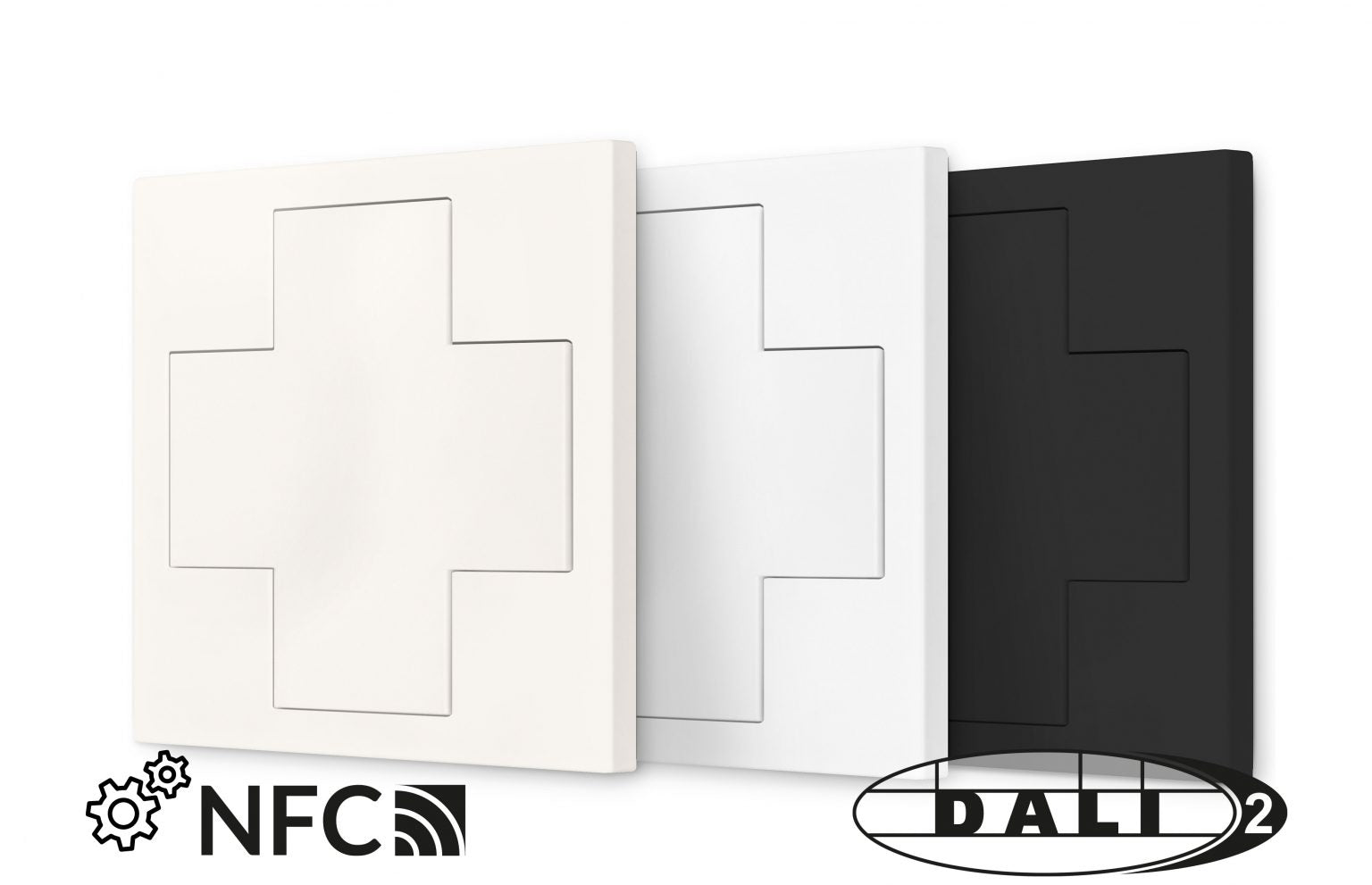

Overview

• Multimaster capable, multiple modules can be installed on the DALI-line
• The module is supplied directly by th DALI-line, no additional supply required
• Mmounting on cavity walls or conduit boxes
• Various cross plates available as accessory
• Application controller: freely assignable
• Function for each button for direct control of luminaires
• Factory settings provide common functions (switch and dim) without need of configuration
• Easy configuration via DALI USB and DALI Cockpit Software tool
• Individual addresses (0-63), group addresses (0-15) or broadcast can be used as effective range
• Different switching modes can be assigned to each pushbutton (short, long press; toggle; etc.)

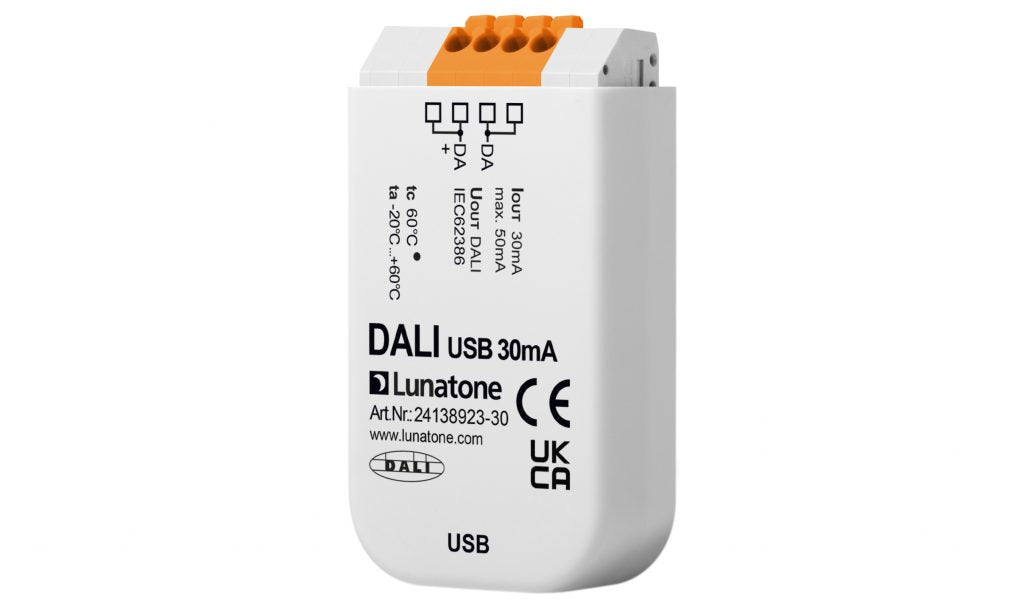

Overview

• Communication interface between DALIsystems and the configuration software tool: DALI Cockpit.
• Bidirectional data communication for DALI bus monitoring, configuration and control.
• Support of the Standard DALI protocol, DALI-2 protocol, and various extended DALI protocols
• USB and DALI-line are galvanically isolated.
• Supply via DALI-line and USB interface
• Various types available: standard, mini, with integrated 30mA bus power supply, DALI-2 version with integrated 30mA bus power supply, for DIN rail mounting, for DIN rail mounting with flash memory, wireless.
• 2 sets of DALI terminals for easy connection - signal line can be looped through

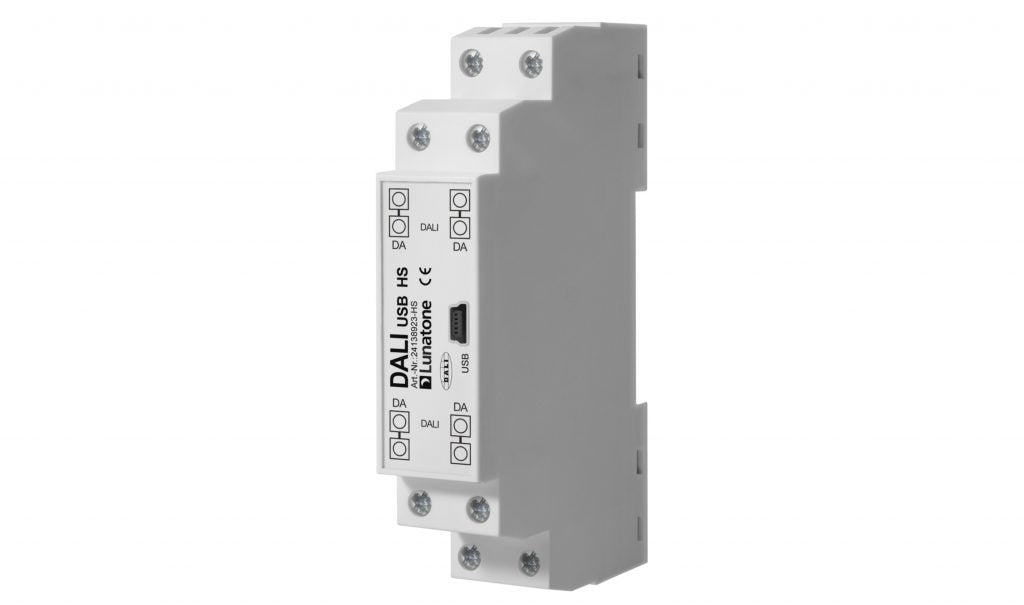

Overview

• Communication interface between DALIsystems and the configuration software tool: DALI Cockpit.
• Bidirectional data communication for DALI bus monitoring, configuration and control.
• Support of the Standard DALI protocol, DALI-2 protocol, and various extended DALI protocols
• USB and DALI-line are galvanically isolated.
• Supply via DALI-line and USB interface
• Various types available: standard, mini, with integrated 30mA bus power supply, DALI-2 version with integrated 30mA bus power supply, for DIN rail mounting, for DIN rail mounting with flash memory, wireless
• 2 sets of DALI terminals for easy connection - signal line can be looped through

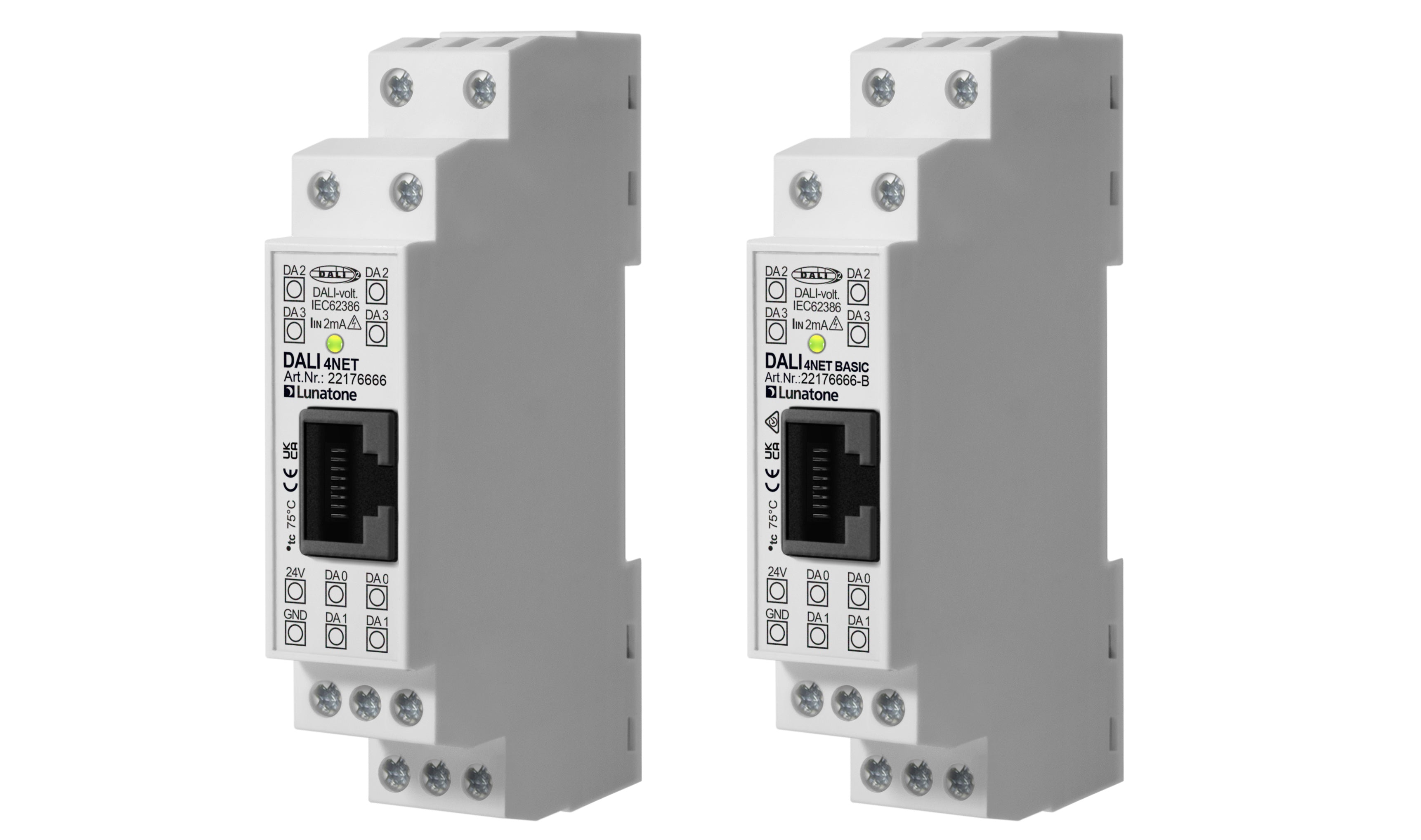

Overview

•  Independent light control of up to 256 DALI ballasts on 4 DALI-lines
• Configuration via Ethernet and PCsoftware tool DALI Cockpit
• Modbus TCP access (control & visualisation)
• With the DALI4Net control devices (input devices and sensors) and control devices on each DALI-line can be configured (Ethernet/DALI Interface)
• Addressing, configuration, status queries, monitoring
• Collision detection
• DIN rail mounting
• 24V power supply (e.g. 24V/300mA Art.Nr. 24166012-24HS)
• Basic version and standard version with additional central functions available

Overview

• Independent light control of up to 256 DALI ballasts on 4 DALI-lines
• Configuration via Ethernet and PCsoftware tool DALI Cockpit.
• Modbus TCP access (control & visualisation).
• With the DALI4Net control devices (input devices and sensors) and control devices on each DALI-line can be configured (Ethernet/DALI Interface).
• Addressing, configuration, status queries, monitoring.
• Collision detection.
• DIN rail mounting.
• 24V power supply (e.g. 24V/300mA Art.Nr. 24166012-24HS).
• Basic version and standard version with additional central functions available.

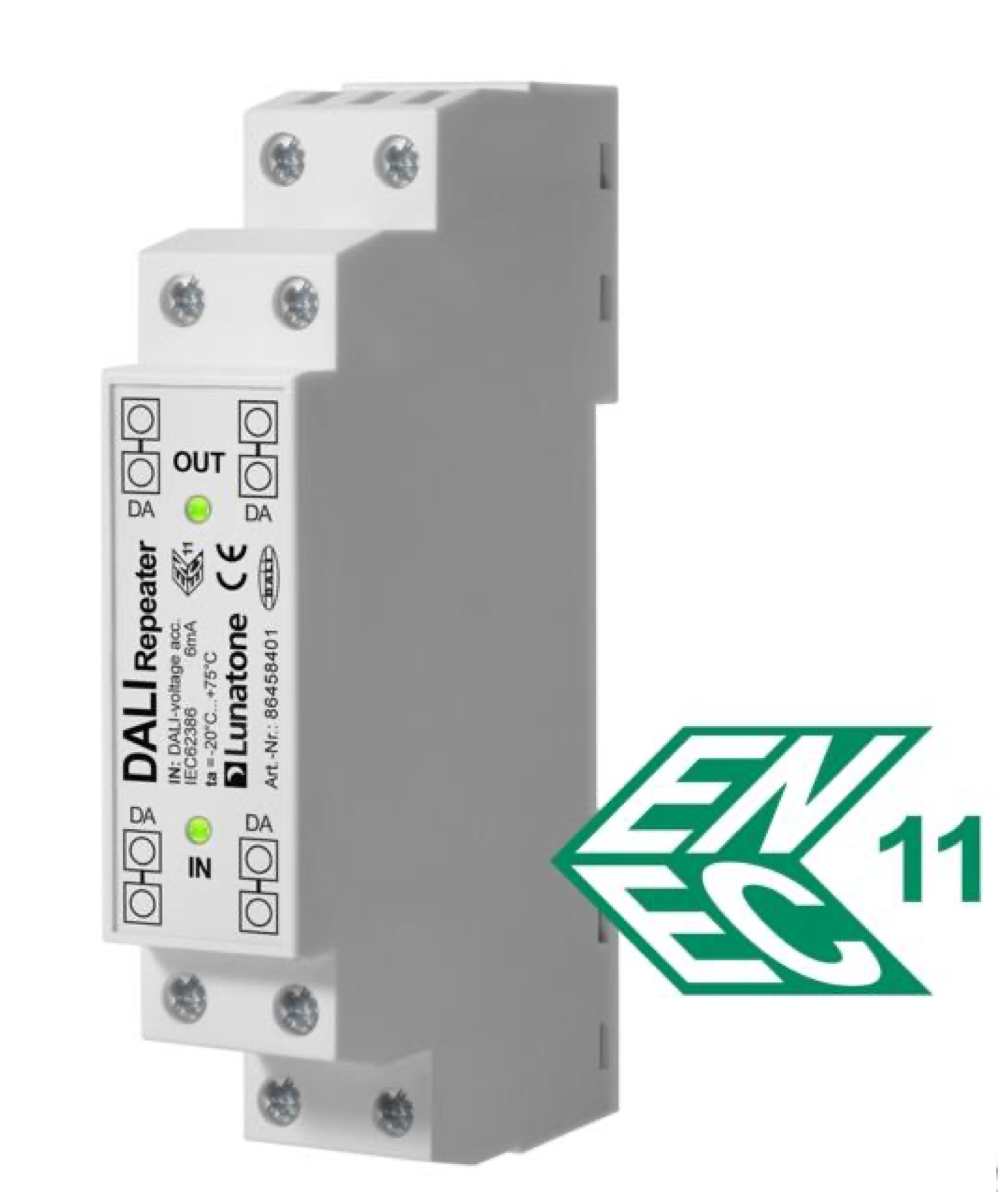

Overview

• Device to enhance the maximum DALI cable length from 300m up to 600m.
• Enhancement and Transmission of the DALI-signals (bidirectional).
• Galvanic separation between DALIcircuits.
• Either radially arranged network layout or cascaded system mounting operated with single master.
• Cascading (Series wiring) of up to 3 repeaters
• The maximum amount of DALI-devices in the total network is limited to 64, the devices can be divided on the subcircuits freely.
• For each subordinate DALI circuit, a separate bus power supply is needed. (DALI PS)
• Type with integrated power supply available

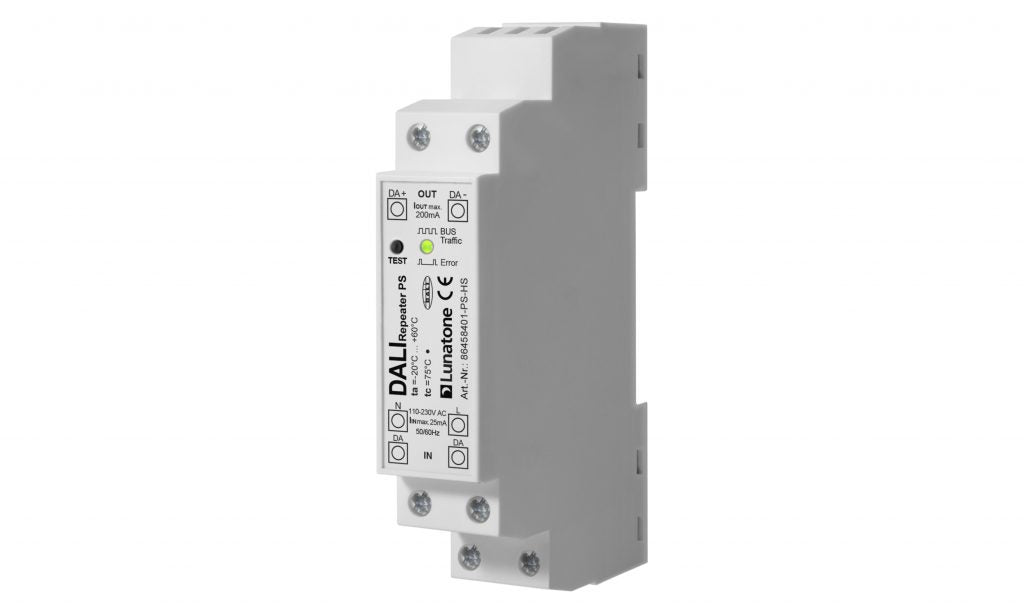

• Repeater PS: Test button for simple function check of all DALI bus ballasts.
• Repeater PS: Module for DIN rail mounting and for remote ceiling installation available.

Overview

• Device to enhance the maximum DALI cable length from 300m up to 600m.
• Enhancement and Transmission of the DALI-signals (bidirectional).
• Galvanic separation between DALIcircuits.
• Either radially arranged network layout or cascaded system mounting operated with single master.
• Cascading (Series wiring) of up to 3 repeaters
• The maximum amount of DALI-devices in the total network is limited to 64, the devices can be divided on the subcircuits freely.
• For each subordinate DALI circuit, a separate bus power supply is needed. (DALI PS)
• Type with integrated power supply available
• Repeater PS: Test button for simple function check of all DALI bus ballasts.
• Repeater PS: Module for DIN rail mounting and for remote ceiling installation available.

Overview

•  Device for DALI-line expansion
• Control of several DALI-devices via 3 DALI-addresses
•  3 DALI outputs (DALI A,B,C) with integrated DALI power supply (50mA each) for powering control gear and control devices
• For the superordinate DALI circuit the DALI expander acts like 3 separate DALI control gear – 3 DALI addresses, one for each subnet (A, B, C)
• Forwarding commands received at the input (DALI IN) to the corresponding output (DALI A, B, C) broadcast
• Alternative control options of the DALI-output circuits via Switch&Diminputs (Broadcast).
• Group commands are passed from one to the other output circuits (cross function)

Overview

• Device for simple DALI line expansion.

• Control of several DALI-devices via one DALI-address.

• For the superordinate DALI line the DALI Expander acts as a DALI EVG (DALI IN) with a single address.

• Output (DALI OUT) with DALI power supply (200mA) for the supply of DALI EVG's and DALI control modules.

• Forwarding commands received at the input (DALI IN) to the output (DALI OUT) broadcast.

• Alternative control options of the DALI-output line via Switch&Dim-input (Broadcast).

Overview

• Device for DALI-line expansion
• Control of several DALI-devices via 3 DALI-addresses
• 3 DALI outputs (DALI A,B,C) with integrated DALI power supply (50mA each) for powering control gear and control devices
• For the superordinate DALI circuit the DALI expander acts like 3 separate DALI control gear – 3 DALI addresses, one for each subnet (A, B, C)
• Forwarding commands received at the input (DALI IN) to the corresponding output (DALI A, B, C) broadcast
• Alternative control options of the DALI-output circuits via Switch&Diminputs (Broadcast).
• Group commands are passed from one to the other output circuits (cross function)
• Galvanic isolation between DALI-input and DALI-outputs
• Independent control gear for remote ceiling an integration in luminaires

Overview

• DALI bus power supply unit
• Guaranteed Supply Current 30mA for Version 24033444-30, and. 80mA for Version 24033444-80
• Maximum supply current allowed on a DALI line in total: 250mA
• Version 24033444-30 is suitable to power a DALI-line with up to 15 standard DALI ballasts
• Version 24033444-80 is suitable to power a DALI-line with up to 40 standard DALI ballasts
• Suitable for back box installation and integration in protection class II devices
• Power supply range 110Vac … 240Vac for worldwide use
• Surge immunity up to 400V

Overview

• DALI bus power supply unit
• Guaranteed Supply Current 30mA for Version 24033444-30, and. 80mA for Version 24033444-80
• Maximum supply current allowed on a DALI line in total: 250mA
• Version 24033444-30 is suitable to power a DALI-line with up to 15 standard DALI ballasts
• Version 24033444-80 is suitable to power a DALI-line with up to 40 standard DALI ballasts
• Suitable for back box installation and integration in protection class II devices
• Power supply range 110Vac … 240Vac for worldwide use
• Surge immunity up to 400V

Overview

• DALI bus power supply unit
• Guaranteed Supply Current 128mA
• Maximum Supply Current 250mA
• Suitable to power an entire DALI-line with 64 standard DALI ballasts
• Independent electronic device for remote ceiling and integration in protection class II devices
  power supply range 110Vac … 240Vac for worldwide use
• Surge immunity up to 400V

Overview

• DALI bus power supply unit
• Guaranteed Supply Current 200mA
• Maximum Supply Current 250mA
• Suitable to power an entire DALI-line with 64 standard DALI ballasts
• Independent electronic device for remote ceiling and integration in protection class II devices
• Power supply range 110Vac … 240Vac for worldwide use
• Surge immunity up to 400V
