WEINZIERL

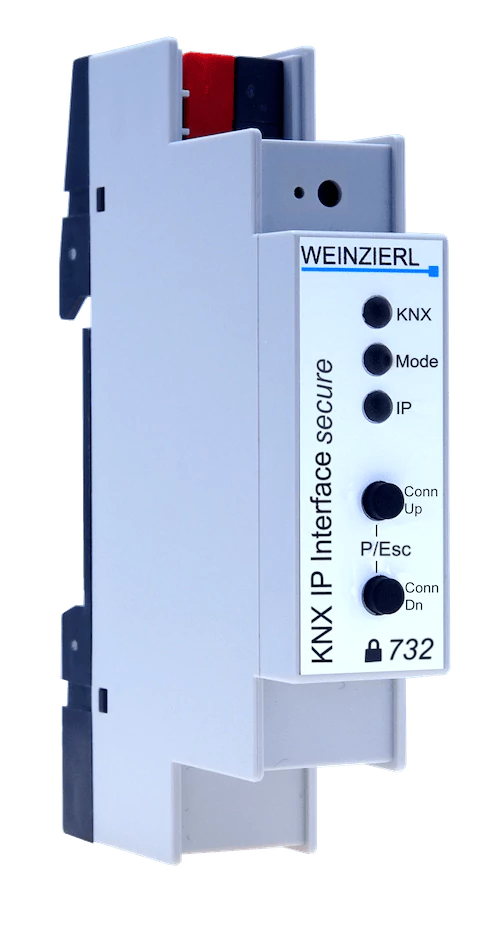

Compact bus powered interface between LAN/Ethernet and KNX bus.
Application area
The KNX IP Interface 732 secure with its compact design has a width of only 1 module (18 mm) and is powered by the KNX bus.
The device is an interface between IP and KNX and can be used as programming interface for ETS®
Software.
You can access the KNX Bus from every point of your LAN.
Furthermore, the KNX IP Interface 732 secure allows you to program the KNX bus over the Internet.
The device supports KNX Security which can be enabled in ETS.
With its interface functionality (tunneling) KNX security prevents from unauthorized access.
The buttons and LEDs on the device allow a local diagnosis including the operating status and communication errors.

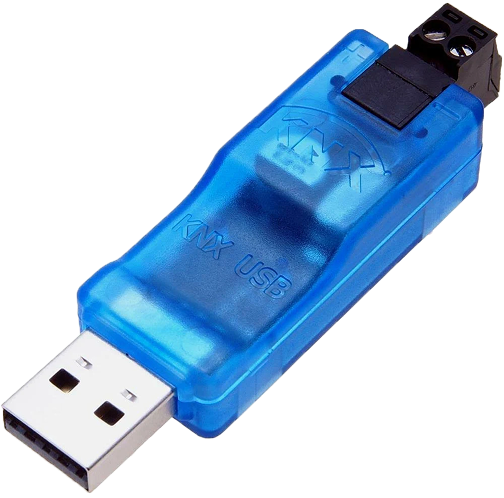

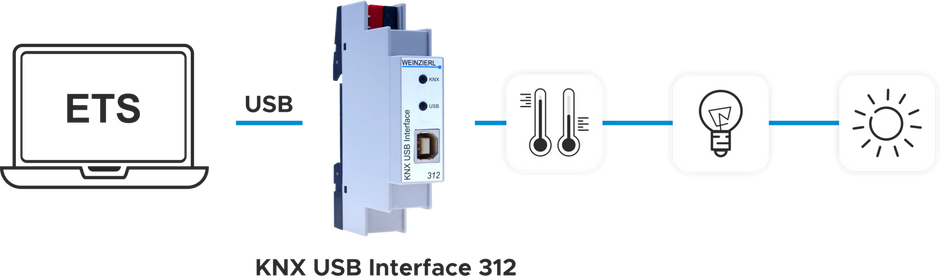

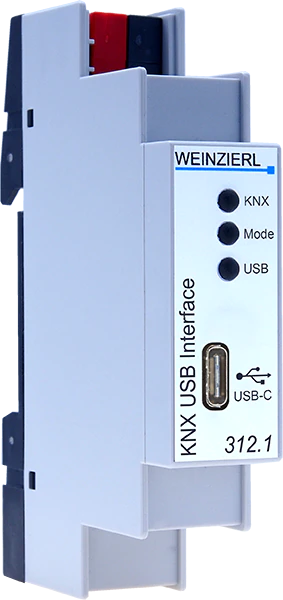

Compact USB Interface between PC and KNX bus.
Installation Instructions
- The device shall be used in indoor areas only.
- It can be connected directly to a USB port of a PC or laptop.
- The KNX connector is marked at the enclosure with +/- for bus polarity.
Blind/Shutter control with one output of a KNX Multi IO.
- The device may be used for permanent interior installations in dry locations or within distribution boards with DIN rail.
Bi-stable coupling relay for KNX Multi IO.
Application area
The Multi IO Extension Switch 590 serves as a power-saving alternative to commercial standard coupling relays.
The coupling relay is controlled as a mono-stable relay, but uses a bi-stable relay internally, thus reducing the holding current by up to 95%.
The Multi IO Extension Switch 590 has an integrated fuse to protect high-quality equipment.

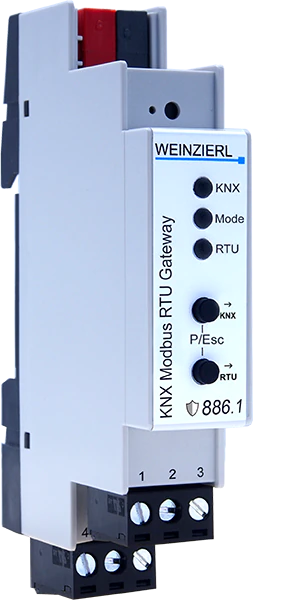

KNX Modbus Gateway with 250 data points.
Application area
The KNX Modbus RTU Gateway 886 is a compact Gateway between KNX TP and Modbus RTU with 250
freely configurable channels.
The device enables easy integration of Modbus devices that support the RTU protocol via RS-485 and can act as a Modbus master or slave.
As Master the device can address up to 25 slave devices.
The assignment between KNX objects and Modbus registers can be configured via parameters in the ETS
without an additional tool.
The gateway provides a galvanic isolation between KNX bus and Modbus.
Two buttons and three LEDs allow local operation and visualization of the device status.
Serial Interface and ObjectServer for KNX Bus.
Application
The KNX Serial Interface BAOS 870 serves as a simple integration solution for non-KNX devices.
Designed as a RS-232 interface, the KNX Serial BAOS 870 uses the proven FT1.2 protocol (PEI 10) as message format.
Moreover, the device supports the BAOS protocol for accessing data points.
This allows non-KNX devices to be fully integrated into a KNX network via a RS-232 link.
For a quick start, free SDKs, a demonstration tool as well as an ETS entry with 250 group objects are available.
Furthermore, individual ETS representations for OEM versions can be created.

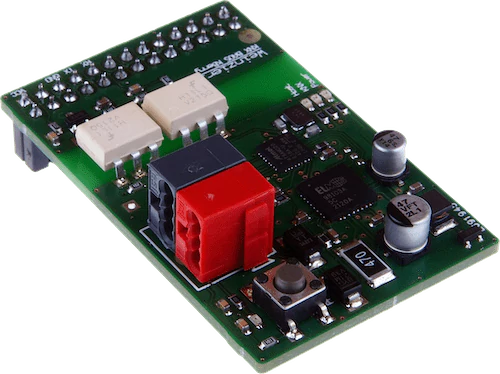

KNX Module for Raspberry Pi.
Application area
The KNX BAOS Module 838 kBerry is an extension board for the Raspberry PI® single-board computer.
It can be plugged directly on the Raspberry board and serves as a serial interface to KNX.
BAOS stands for “Bus Access and Object Server”.
So the module allows the access to the KNX bus on telegram level (KNX Link Layer) as well as on data point level (KNX Application Layer).
The connection between application and KNX BAOS Module is established via a UART connection (FT1.2 framing).
For a quick start a generic ETS® entry with 1000 group objects is available.
Individual ETS entries can be created as well.
The KNX BAOS Module 838 is powered via the bus and provides galvanic isolation.
The firmware of the KNX BAOS Module 838 is fully compatible with the KNX BAOS Module 830.

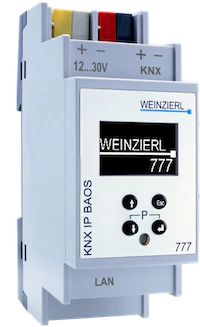

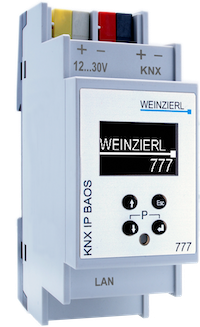

Interface and ObjectServer between LAN and KNX Bus.
Application area

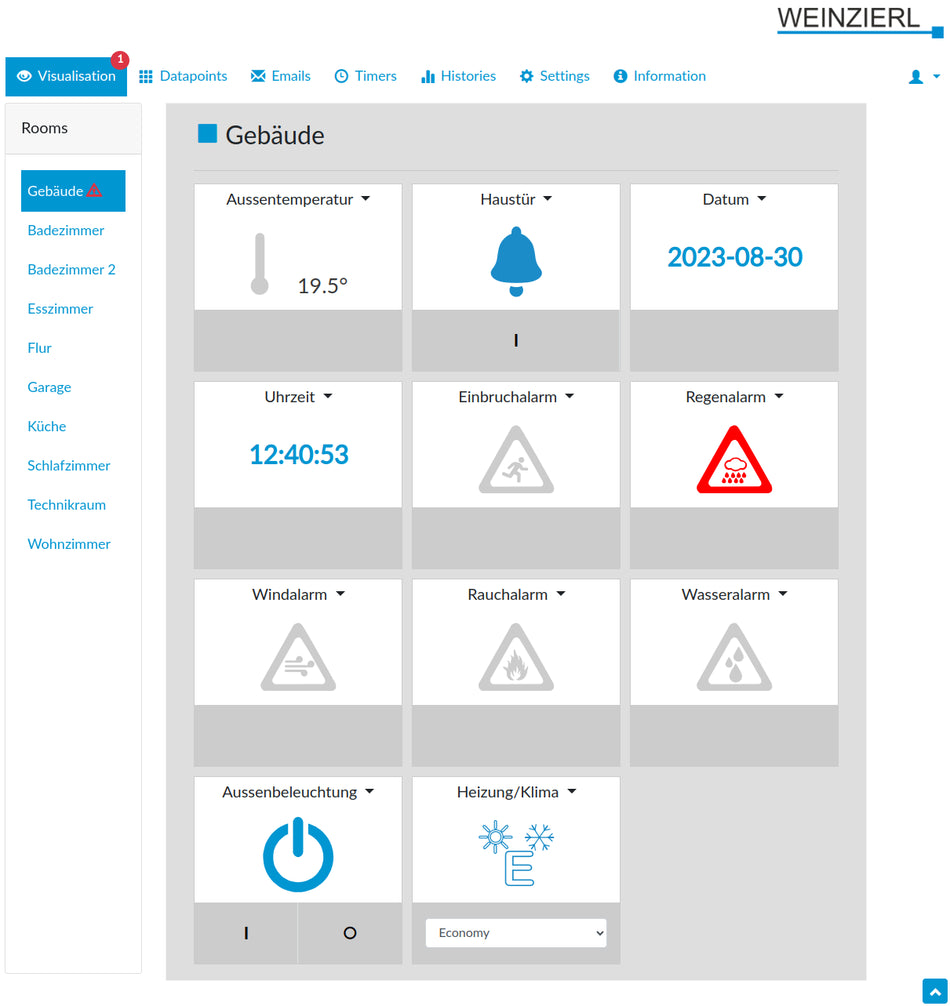

The KNX IP BAOS 777 integrates a web server for the KNX installation.
This allows the visualization in a web browser on a PC or mobile device.
The email function allows the notification e.g. in case of an alarm.
The integration of a Date & Time Server (NTP) allows to obtain date and time automatically via the Internet
and to synchronize the KNX installation.
Extensive time functions offer a powerful KNX time switch with week function.
The configuration is done with the ETS software.

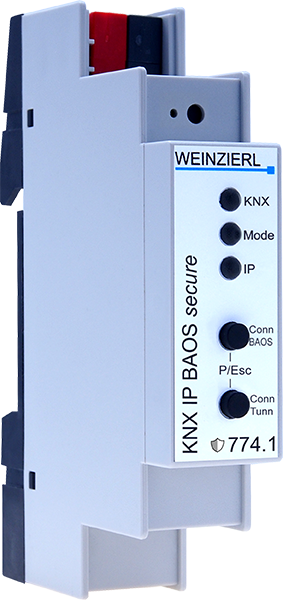

Compact bus powered Interface and ObjectServer between LAN and KNX-Bus.
Application area
The KNX IP BAOS 774 is used as Interface for connecting to KNX both on telegram level (KNXnet/IP Tunneling) and on data point level (KNX Application Layer).
Clients can directly access Group Objects via either a Binary Protocol (over TCP/IP or UDP/IP) or via JSON (Java Script Object Notation) Web Services.
The device is configured with the ETS and supports up to 1000 Group Objects.
10 simultaneous client connections are supported.
BAOS is an acronym for “Bus Access and Object Server”.
It is possible to connect to the KNX bus everywhere over LAN.
Bus connection over the internet with KNX IP BAOS 774 is also possible.
The device supports 5 simultaneous KNXnet/IP tunneling connections.
The buttons are for diagnostic purposes.
The LEDs indicate
the operating status and communication errors on the bus.
Power is supplied via the KNX bus
Compact bus powered Interface and ObjectServer between LAN and KNX-Bus.
Application area
The KNX IP BAOS 773 is used as Interface for connecting to KNX both on telegram level (KNXnet/IP Tunneling) and on data point level (KNX Application Layer).
Clients can directly access Group Objects via either a Binary Protocol (over TCP/IP or UDP/IP) or via JSON (Java Script Object Notation) Web Services.
The device is configured with the ETS and supports up to 250 Group Objects.
10 simultaneous client connections are supported.
BAOS is an acronym for “Bus Access and Object Server”.
It is possible to connect to the KNX bus everywhere over LAN.
Bus connection over the internet with KNX IP BAOS 773 is also possible.
The device supports 5 simultaneous KNXnet/IP tunneling connections.
The buttons are for diagnostic purposes.
The LEDs indicate the operating status and communication errors on the bus.
Power is supplied via the KNX bus.

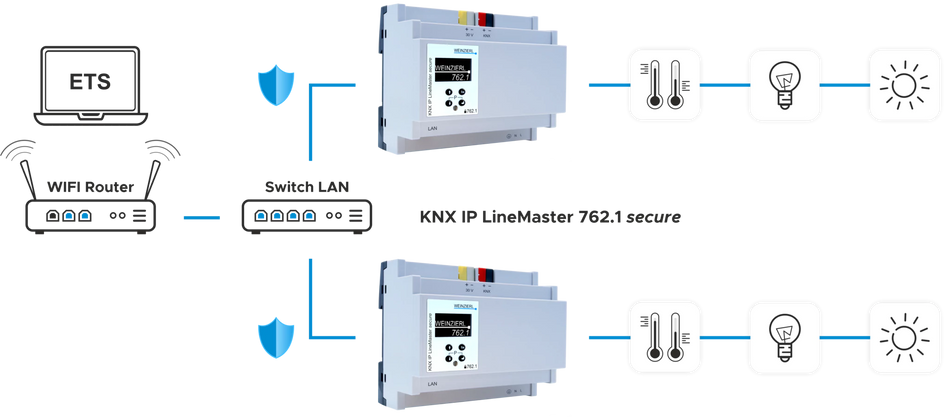

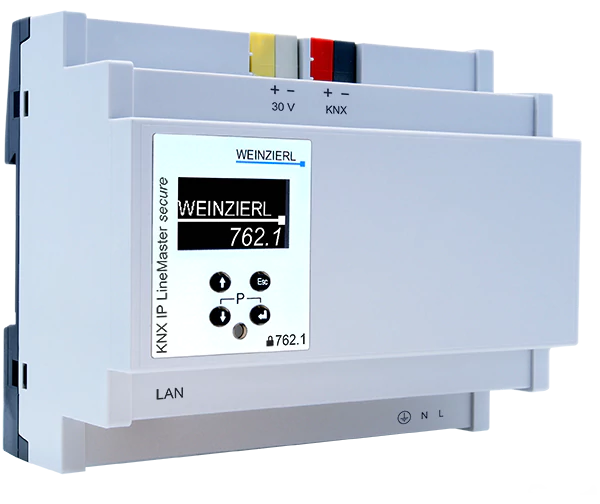

KNX power supply 640 mA with KNX IP router.
Application area
The KNX IP LineMaster 762.1 secure combines the essential functions of a KNX bus line: KNX power supply with choke, KNX IP router and KNX IP interface.
In addition to the bus voltage the power supply offers an auxiliary voltage.
The KNX IP router in the KNX IP LineMaster 762.1 secure allows forwarding of telegrams between different lines through a LAN (IP) as a fast backbone.
Using the embedded KNX IP interface, the KNX line can be connected directly to a PC (e.g. by ETS).
The device supports KNX Security which can be enabled in ETS.
As secure router the device allows coupling of not secured communication on KNX TP to a secured IP
backbone.
Also for the interface functionality (tunneling) KNX Security prevents from unauthorized access.
The IP address can be obtained by a DHCP server or by manual configuration (ETS) respectively.

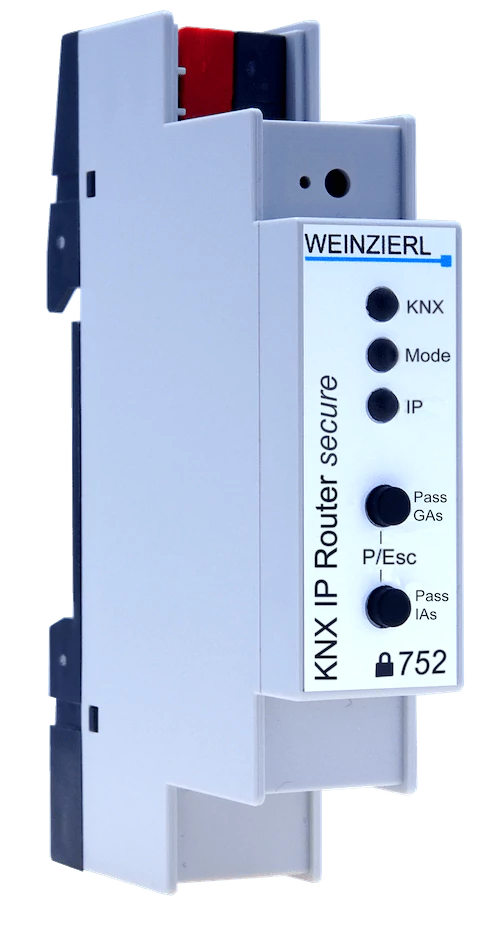

Compact bus powered Router between LAN/Ethernet and KNX bus.
Application area

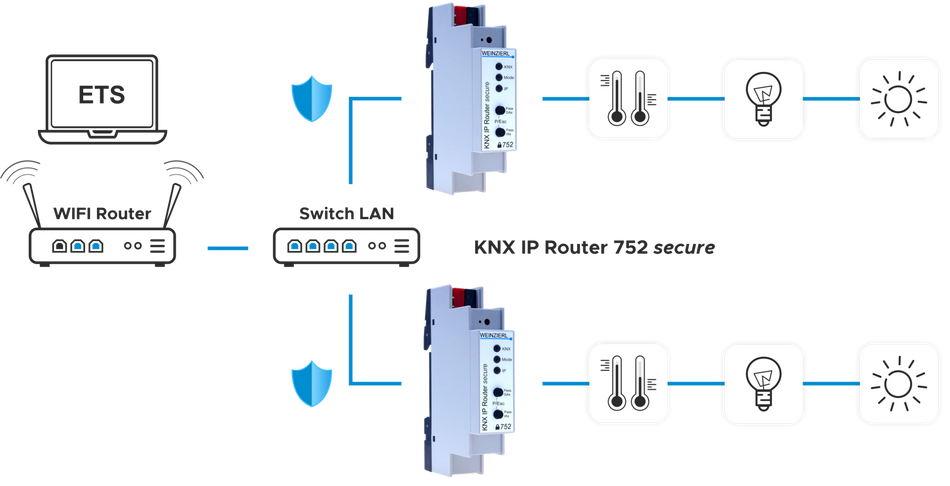

The compact KNX IP Router 752 secure allows forwarding of telegrams between different lines through a LAN (IP) as a fast backbone.
In addition this device is suited to connect a PC to the KNX network e.g. for ETS programming.
The device supports KNX Security which can be enabled in ETS.
As secure router the device allows coupling of not secured communication on KNX TP to a secured IP
backbone.
Also for the interface functionality (tunneling) KNX security prevents from unauthorized access.
The IP address can be obtained by a DHCP server or by manual configuration (ETS) respectively.
This device works according to the KNXnet/IP specification using the core, the device management, the tunneling and the routing part.
The KNX IP Router 752 secure has an extended filter table for main group 0..31 and is able to buffer up to 150 telegrams.
Power is supplied via the KNX bus.

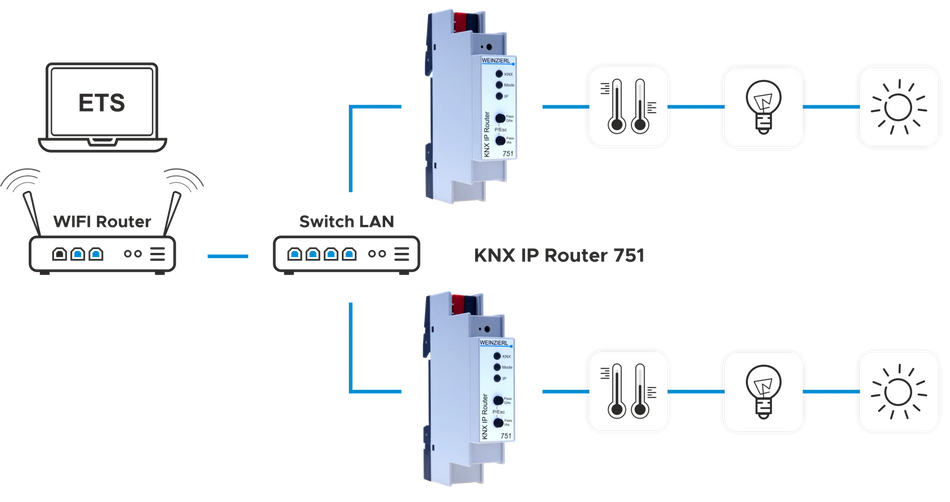

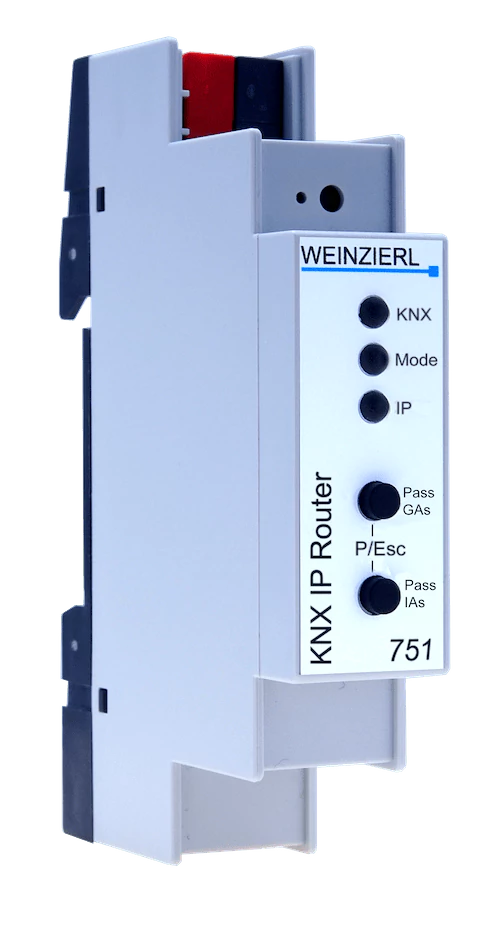

Compact bus powered Router between LAN/Ethernet and KNX bus.
Application area
The compact KNX IP Router 751 allows forwarding of telegrams between different lines through a LAN (IP) as a fast backbone.
In addition this device is suited to connect a PC to the KNX network e.g. for ETS programming.
The IP address can be obtained by a DHCP server or by manual configuration (ETS) respectively.
This device works according to the KNXnet/IP specification using the core, the device management, the tunneling and the routing part.
The KNX IP Router 751 has an extended filter table for main group 0..31 and is able to buffer up to 150 telegrams.
Power is supplied via the KNX bus.
Wireless KNX IP interface.
Application area
The KNX IP Interface 740.1 wireless serves as a wireless interface to the KNX bus based on WLAN.
The device can be used as a programming interface for the ETS® and is a wireless alternative to USB or wired IP interfaces.
The bus access via WIFI allows the installer to move freely in the building with his laptop to a large extent.
The KNX IP Interface 740.1 wireless has an integrated WIFI access point to which the laptop can connect.
Alternatively, the device can be connected to an existing WIFI in client mode, the connection can be made via WPS (WIFI Protected Setup).
The device supports the security standard WPA2.
Power is supplied via the KNX bus.
The device works according to the KNXnet/IP specification.
It can be used with the ETS® from version 5.

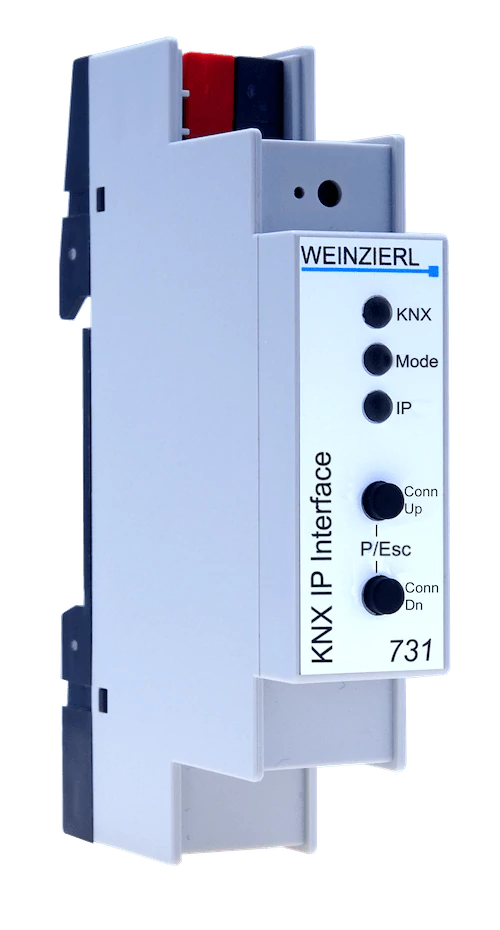

Compact bus powered interface between LAN/Ethernet and KNX bus.
Application area
The KNX IP Interface 731 is a compact interface used to connect a PC to the KNX network.
The connection is made through LAN (IP).
Power is supplied via the KNX bus.
The IP address can be obtained by a DHCP server or by manual configuration (ETS) respectively.
This device works according to the KNXnet/IP specification using the core, the device management and the tunneling part.
The buttons are for diagnostic purposes.
The LEDs indicate the operating status and communication errors on the bus.
With KNX IP interface, bus powered.
Application area
The KNX Modbus TCP Gateway 716 secure is a compact gateway between KNX TP and modbus TCP with 250 freely configurable datapoints.
The device enables easy integration of modbus devices that support the TCP protocol via IP and can act as a modbus master or slave.
As master the device can address up to 5 slave devices.
The assignment between KNX objects and modbus registers can be configured via parameters in the ETS
without an additional tool.
Two buttons and three LEDs allow local operation and visualization of the device status.
Furthermore, the device can be used as a programming interface to connect one or more PCs to the KNX bus (e.g. for ETS®).
Power is supplied via the KNX bus.
The device supports KNX Security.

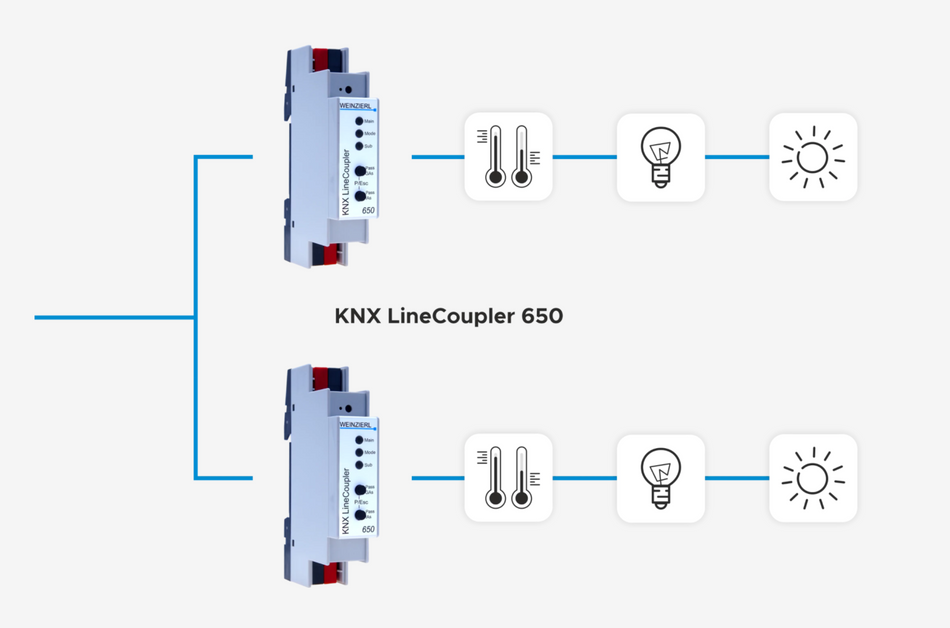

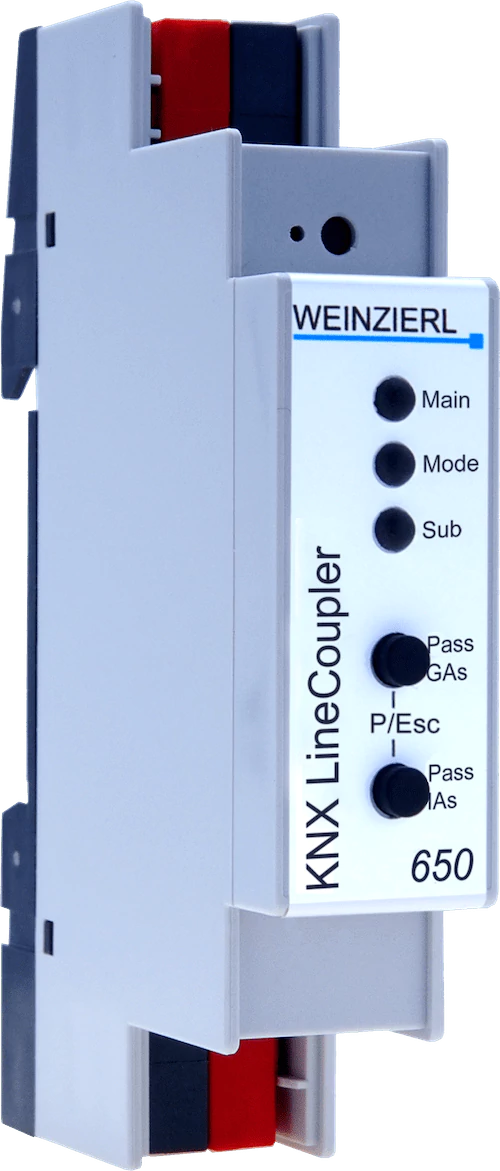

Compact KNX Line Coupler.
Application area
The KNX LineCoupler 650 is a KNX line coupler in a compact design.
It connects two KNX bus segments (for example, a KNX line with a KNX area).
The device has an extended filter table for main group 0 … 31 and ensures a galvanic isolation between the lines.
The coupler supports KNX longframes and is compatible with the ETS® software (ETS 4.2 or higher).
The buttons on the front panel allow disabling the telegram filter for testing purposes.
The LEDs indicate operating conditions as well as communication errors on the KNX bus.
The power is supplied via the KNX bus (main line).
KNX IP Multi IO with 48 configurable In- and Outputs.
Application area
The KNX IP Multi IO 580 is a universal binary interface for building control.
It provides 48 I/O lines.
Each line can be used as binary input as well as binary output.
The peripherals can be fed by an external voltage of 24 V⎓.
Channels which are configured as inputs can be used to control lights or blinds via the KNX network.
They also can be used to count impulses, e.g. as interface for energy meters.
Channels which are configured as outputs can directly drive signal LEDs, external coupling relays (e.g.
590) or jalousie relays (592).
The device works using the medium KNX IP.
It can be configured using the ETS (Version 4.2 or higher) with native parameters and standard group objects.
Also the KNX addressing scheme, based on individual device
address and group objects, is unchanged.
An easy to read OLED display on the front panel enables a manual operation to test the installation.
KNX TP Multi IO with 48 configurable In- and Outputs.
Application area
The KNX TP Multi IO 570 is a universal binary interface for building control.
It provides 48 I/O lines.
Each line can be used as binary input as well as binary output.
The peripherals can be fed by an external voltage of 24 V⎓.
Channels which are configured as inputs can be used to control lights or blinds via the KNX network.
They also can be used to count impulses, e.g. as interface for energy meters.
Channels which are configured as outputs can directly drive signal LEDs, external coupling relays (e.g.590) or jalousie relays (592).
The integrated USB interface allows establishing a bidirectional connection between a PC and the KNX bus.
The USB connector has a galvanic separation from the KNX bus.
Both ETS (Version 4.2 or later) and visualization tools support this interface.
The configuration of the device is done with ETS, a local download is possible.
An easy to read OLED display on the front panel enables a manual operation to test the installation.
Combined dimming/switching actuator with 1 dimming output for active electronic ballasts and 1 switching output.
Application area
The KNX IO 546.1 secure (1D1O) is a compact combined dimming/switching actuator with 1 dimming output for active electronic ballasts with a 0/1-10V interface and 1 bi-stable relay output.
The dimming actuator can be used for several active electronic ballasts e.g. for LED panels or stripes.
The configuration allows controlling the channel by switching, rel.
Dimming and dimming value.
Several comfort functions are integrated as well, including scenes, slumber fading, staircase light and sequencer.
The switching actuator provides the function for universal outputs including scene control, timer, staircase lighting and heating valves (PWM for thermoelectric valve drives).
