Best Selling Products
1HOME
1Home Server for KNX/Loxone/Crestron. Full integration with Apple Home, Google Home, Samsung SmartThings, voice interfaces and Matter
It connects professional smart home systems such as KNX and Loxone to Apple Home, Google Home, Samsung SmartThings and other smart assistants and voice interfaces via a new open standard Matter (what is the Matter standard?).
- Matter Bridge - Bring KNX to Apple Home, Google Home, Samsung SmartThings and other Matter compatible apps
- KNX integration over KNX TP Bus and KNXnet/IP Tunneling
- Incredibly quick setup with automatic device detection from ETS project file and automatic configuration validation
- KNX IP interface with KNXnet/IP Tunnelling support
- KNX (ETS) remote programming
- Remote access
- Logic module (coming in Q1 2024)
- Matter accessories integration (coming later in 2024)
For detailed KNX integration related documentation, please see the KNX integration page.
KNX cable, 20 AWG two conductor Shielded, Orange/Green plenum rated PVC jacket.
Suitable application: KNX installations, Sound, Audio, Security and Data communication.
2 wires for data and power, suitable for KNX installations.
DT5 Converter Module for the integration of 0-10V drivers with electrically isolated control output (+/-1mA) in DALI lighting systems.
Replaces Art. Nr. 86458508-OS
KNX cable, 20 AWG two conductor Shielded, Orange/Green plenum rated PVC jacket.
Suitable application: KNX installations, Sound, Audio, Security and Data communication.
2 wires for data and power, suitable for KNX installations.
Black / red
For solid core cables 0.6 - 0.8 mm²
Packaging unit: 50 pieces
Communication interface between PC and modules on a DALI Bus.
- The DALI-2 USB is recognized as hardware interface / serial port interface. Windows 10 and higher includes automatic drivers for recognizing the device. Drivers for windows 7 and lower are available on request.
- After installation the device can be found in the Windows Device Manager section “Ports (COM)”
- The DALI-2 USB supports the transmission and monitoring of Standard DALI commands as well as several proprietary protocol extensions.
More info: https://www.lunatone.com/wp-content/uploads/2023/01/24138215_DALI-2_USB30mA_EN_D0114.pdf

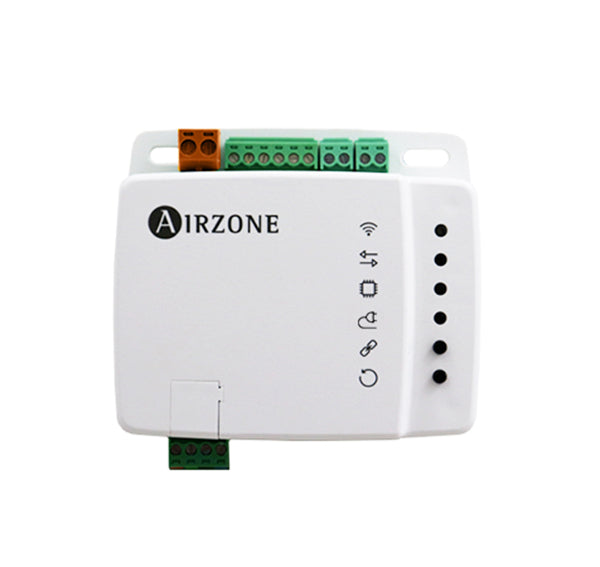

Device to manage and integrate units remotely from the Cloud.
Online control with the “Airzone Cloud” App (available for iOS and Android).
Wireless Wi-Fi connection.
Self-powered by external power supply provided.
Features:
• Control of the parameters of the unit.
• Dual Wi-FI communications (2.4/5 GHz).
• Possibility of integration via Local API and Cloud API.
• Communication errors detection.
• Temperature and operating mode time schedules.
• Multi-user and multi-session.
• Port for integration via Modbus/BACnet protocol.
• Cloud and/or third party smart thermostat integrations (3PTI).
• On/Off input and auxiliary heat output.
• Automatic mode change.
• Temperature limits for hot and cold.

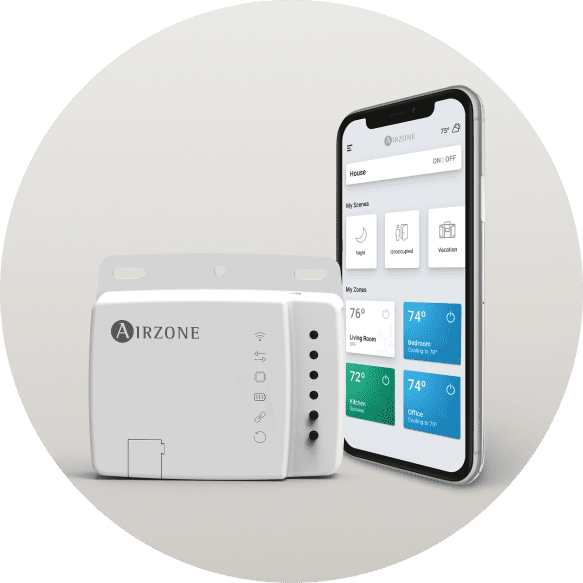

A device designed for remote unit management via the Cloud, with online control through the "Airzone Cloud" App (available for iOS and Android).
It uses a dual-band Wi-Fi connection (2.4/5 GHz) and is powered by an external power supply.
Key features include:
Unit control and error detection.
Configurable digital input for open window detection, occupancy presence, or ECO function.
Auxiliary heat control and heat source locking.
Automatic operation mode change with adjustable set-point temperatures.
Temperature limits for cooling and heating modes.
Scheduling for status, temperature, mode, and fan speed.
Integration with third-party thermostats via Modbus RTU/TCP, BACnet MS-TP/IP, Airzone thermostat, Lutron Palladiom thermostat, AirQ Box, and AirQ Sensor.
Local and Cloud API integration, along with mDNS multica
Compact USB Interface between PC and KNX bus.
Application area
The KNX USB Interface 312 is a data interface between a PC or laptop and the KNX installation bus.
It can be used as a programming interface for ETS® Software Version 3 (or higher) and supports KNX long frames.
Long telegrams enable a faster download to devices that can receive these telegrams.
The LEDs on the device indicate the operating status and communication errors on the bus.
The USB connector is galvanic isolated from the KNX bus.
- Communication interface between DALI systems and the configuration software tool: DALI Cockpit.
- Bidirectional data communication for DALI bus monitoring, configuration and control.
- Support of the Standard DALI protocol, DALI-2 protocol, and various extended DALI protocols
- USB and DALI-line are galvanically isolated.
- Supply via DALI-line and USB interface
- Various types available: Standard Mini, with integrated 30mA bus power supply, DALI-2 version with integrated 30mA bus power supply, for DIN rail mounting, for DIN rail mounting with flash memory Wireless.
- 2 sets of DALI terminals for easy connection - signal line can be looped through
- The device may be used for permanent interior installations in dry locations within distribution boards or small casings with DIN rail EN 60715-TH35.
- To ensure an uninterrupted power supply a separate circuit with safety separation should be used for the power supply unit power supply line.
Features
- AC input range: 85~264Vac (277Vac available)
- Operating temperature range: -30~+70°C
- Safety approvals: UL60950-1, UL508
- High efficiency
- Pass LPS
- Class II isolation
- Installed on DIN rail TS35 / 7.5 or 15
- LED indicator for power on
- Low no load power consumption: <0.3W
- Adjustable DC output voltage
- Standard protections: short circuit / over load / over voltage
- MEAN WELL 3 year warranty
Experience versatile control with the KNX Push Button Sensor, featuring 4/6/8 configurable buttons.
This multifunctional device supports essential functions including Switching, Dimming, RGB/RGBW
Lighting, Color Temperature Control, Blinds, Scene Activation, Value Sending, Shift Register, Multiple Operations, Delay Mode, RTC (Real-Time Clock) Operation, and String Sending.
Additionally, it comes equipped with a built-in temperature sensor to monitor the ambient temperature and offers RGB indication for intuitive feedback.
Elevate your smart home or office with this all-in-one solution.
Compact USB Interface between PC and KNX bus.
Installation Instructions
- The device shall be used in indoor areas only.
- It can be connected directly to a USB port of a PC or laptop.
- The KNX connector is marked at the enclosure with +/- for bus polarity.
KNX Supply
KNX Cable 2x2xAWG20 (4 wires), Halogen-Free Cable for Smart Building Automation *NON UL*, 1000ft.
- Conductor: Polished copper, 0.0315 inches (0.80 mm).
- Operating Voltage: 250V A.C / 300V D.C.
- Compliance: CPR-certified, low smoke, halogen-free, flame-resistant.
- Applications: KNX/EIB home automation (lighting, blinds, HVAC).
- Sizes: 1-pair and 2-pair options; ~0.2–0.26 inches diameter, 22–40 lbs/1000 ft.
- Note: This is a non-UL listed cable.
NETIO PowerPDU 8KS is smart 19" 1U PDU with RJ45 LAN & web interface .
8 power outputs (C13) / 1 power input (C20).
Total & Output 1 metering, each output is switched and metered individually, Web interface, HTTPs, ZVS.
Several M2M APIs (SNMPv1 & MQTT-flex supported), NETIO Coud.
19" montage holders included.
US power cord included.
Set the operating temperature using the Hisense thermostat probe measurement.
Access the function selection and set value 1 in parameter C8 (refer to the installation manual).
Disconnect the indoor unit and follow the assembly steps:Screw attachment or double-sided adhesive attachment.
Connect the Aidoo to the KNX bus and the indoor unit terminals using the supplied cable.
Power the indoor unit and check the LED indicators (refer to the self-diagnosis section).
Configure the device in ETS using the provided database.
(Optional) Configuration to impose temperature:
An external device with a temperature probe (e.g., KNX thermostat) is required.
Autonomous mode: Aidoo operates as the master and can impose the room temperature from the external probe without specific configuration.
Master-slave mode: The unit’s thermostat must be configured as a slave (parameter F2 set to “Sub”).
This summary highlights the key points for installing and configuring the device.
Dive into the world of smart building technology with our streamlined KNX Certified Training.
This course offers essential knowledge and hands-on experience in KNX, a leading standard in home and building automation.
Key Benefits:
- In-Depth Knowledge: Learn the fundamentals and advanced aspects of KNX from industry experts.
- Practical Skills: Gain hands-on experience with KNX systems for real-world application.
- Global Recognition: Earn a certification recognized worldwide, enhancing your career prospects.
- Professional Growth: Boost your marketability and credibility in the smart technology sector.
Ideal for professionals seeking to advance in smart building, our KNX Training is your gateway to becoming a part of this innovative field.
More info: https://www.wolfbtech.com/knx-training/#
The Siemens Industry Gamma Lighting Control Enclosures support Gamma Lighting system components and other panel-mounted devices that snap into DIN rails.
Specially designed to accommodate the different DIN rail-based KNX modules, regardless of the manufacturer.
The following table provides ordering information:
Description | Product Number |
Gamma Lighting Control 20" (51 cm) Enclosure | LCC-2020-MV |
Gamma Lighting Control 28" (71 cm) Enclosure | LCC-2028-MV |
Gamma Lighting Control 44" (112 cm) Enclosure | LCC-2044-MV |
Enclosure Type: UL and cUL Certified NEMA Type 1 Industrial Control Enclosure
Compact bus powered interface between LAN/Ethernet and KNX bus.
Application area
The KNX IP Interface 731 is a compact interface used to connect a PC to the KNX network.
The connection is made through LAN (IP).
Power is supplied via the KNX bus.
The IP address can be obtained by a DHCP server or by manual configuration (ETS) respectively.
This device works according to the KNXnet/IP specification using the core, the device management and the tunneling part.
The buttons are for diagnostic purposes.
The LEDs indicate the operating status and communication errors on the bus.
