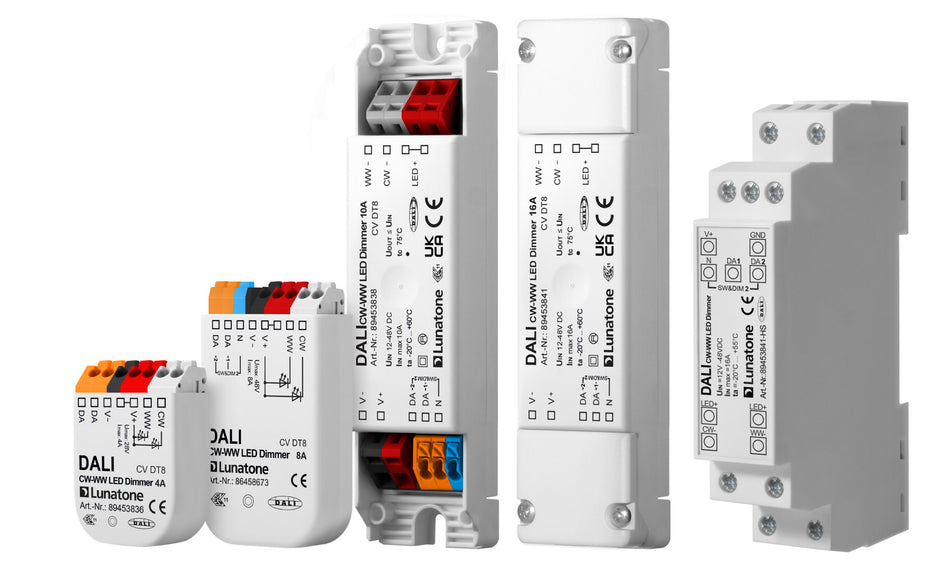

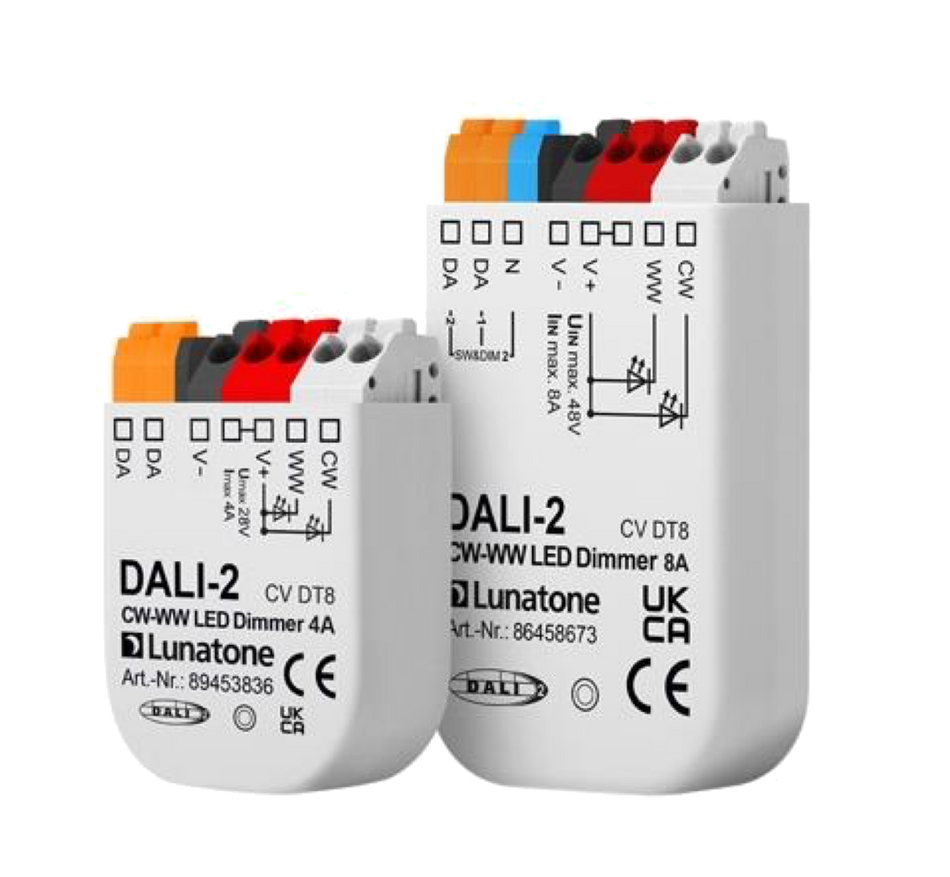

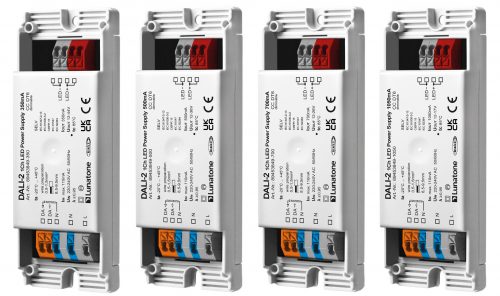

Drivers and ECGs

• Communication interface between DALI systems and the configuration software tool: DALI Cockpit.
• Bidirectional data communication for DALI bus monitoring, configuration and control.
• Support of the Standard DALI protocol, DALI-2 protocol, and various extended DALI protocols
• USB and DALI-line are galvanically isolated.
• Supply via DALI-line and USB interface
• Various types available: Standard Mini, with integrated 30mA bus power supply, DALI-2 version with integrated 30mA bus power supply, for DIN rail mounting, for DIN rail mounting with flash memory Wireless.
• 2 sets of DALI terminals for easy connection - signal line can be looped through

Communication interface between PC and modules on a DALI Bus.

• The DALI-2 USB is recognized as hardware interface / serial port interface. Windows 10 and higher includes automatic drivers for recognizing the device. Drivers for windows 7 and lower are available on request.
• After installation the device can be found in the Windows Device Manager section “Ports (COM)”
• The DALI-2 USB supports the transmission and monitoring of Standard DALI commands as well as several proprietary protocol extensions.

More info: https://www.lunatone.com/wp-content/uploads/2023/01/24138215_DALI-2_USB30mA_EN_D0114.pdf

Overview

• DALI bus power supply unit.
• Guaranteed supply current 100mA.
• Maximum supply current 130mA.
• Suitable to power a DALI-line with up to 50 standard DALI ballasts.
• Suitable for back box installation and integration in protection class II devices.
• Power supply range 24Vdc … 48Vdc.

• Communication interface between DALI systems and the configuration software tool: DALI Cockpit.
•  Bidirectional data communication for DALI bus monitoring, configuration and control.
• Support of the Standard DALI protocol, DALI-2 protocol, and various extended DALI protocols
•  USB and DALI-line are galvanically isolated.
• Supply via DALI-line and USB interface
• Various types available: Standart, mini, with integrated 30mA bus, power supply, DALI-2 version with integrated 30mA bus power supply, for DIN rail mounting, for DIN rail mounting with flash memory, wireless
• 2 sets of DALI terminals for easy connection - signal line can be looped through

Overview

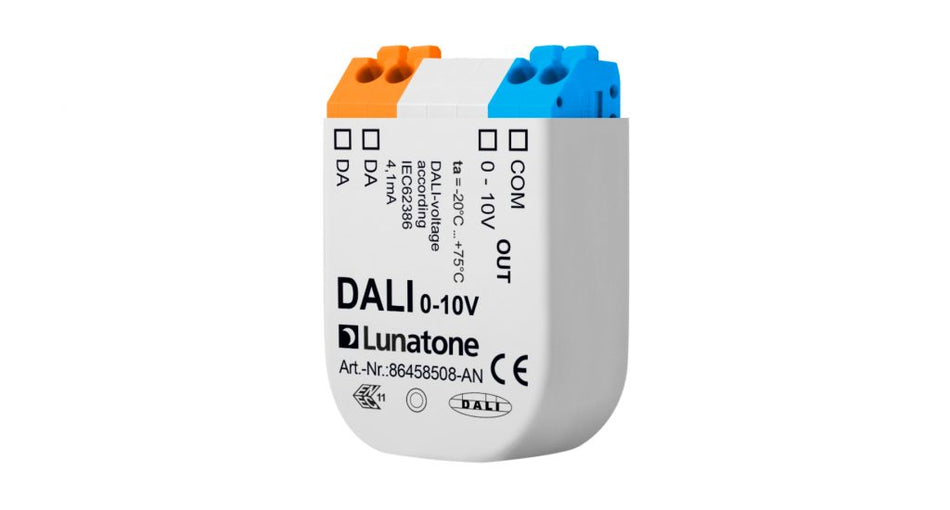

• Small interface module for the conversion of 0-10V control signals to DALI dim levels
• Devices with 1, 2 and 3 channels available
• The 0-10V voltage is transformed to a a DALI dim level and DALI-command Off and sent to the defined effective range on the DALI line
• A change on the 0-10V input voltage (<1%) is used as event trigger
• Supply voltage 12V to 24V DC (e.g. 24V/300mA Art.Nr. 24166012-24HS), multiple devices can be supplied by the same supply voltage
• Configuration of effective range and conversion characteristic (conversion curve and behaviour below 1V input voltage) via DALI-Cockpit and DALIUSB-interface

Total up to 32 KNX channels and 32 CASAMBI scenes can be registered in the gateway, which to implement:

• Unidirectional KNX -> CASAMBI, up to 16
• Unidirectional CASAMBI -> KNX, up to 16
• Bidirectional CASAMBI <-> KNX, up to 16
• It also can control scene on/off and dimming in KNX -> CASAMBI direction.

Overview

• DALI bus power supply unit
• Guaranteed Supply Current 220mA
• Maximum Supply Current 250mA
• Suitable to power an entire DALI-line with 64 standard DALI ballasts
• Suitable for DIN rail mounting
• Power supply range 120Vac … 240Vac for worldwide use
• Surge immunity up to 400V
• Load indicator
• Integrated test button for function check
• System status queries (DALI current, bus load, runtime etc.) with DALICockpit Software

Overview

• DALI bus power supply unit
• Guaranteed Supply Current 200mA
• Maximum Supply Current 250mA
• Suitable to power an entire DALI-line with 64 standard DALI ballasts
• Independent electronic device for remote ceiling and integration in protection class II devices
• Power supply range 110Vac … 240Vac for worldwide use
• Surge immunity up to 400V

Overview

• DALI bus power supply unit
• Guaranteed Supply Current 128mA
• Maximum Supply Current 250mA
• Suitable to power an entire DALI-line with 64 standard DALI ballasts
• Independent electronic device for remote ceiling and integration in protection class II devices
  power supply range 110Vac … 240Vac for worldwide use
• Surge immunity up to 400V

Overview

• DALI bus power supply unit
• Guaranteed Supply Current 30mA for Version 24033444-30, and. 80mA for Version 24033444-80
• Maximum supply current allowed on a DALI line in total: 250mA
• Version 24033444-30 is suitable to power a DALI-line with up to 15 standard DALI ballasts
• Version 24033444-80 is suitable to power a DALI-line with up to 40 standard DALI ballasts
• Suitable for back box installation and integration in protection class II devices
• Power supply range 110Vac … 240Vac for worldwide use
• Surge immunity up to 400V

Overview

• DALI bus power supply unit
• Guaranteed Supply Current 30mA for Version 24033444-30, and. 80mA for Version 24033444-80
• Maximum supply current allowed on a DALI line in total: 250mA
• Version 24033444-30 is suitable to power a DALI-line with up to 15 standard DALI ballasts
• Version 24033444-80 is suitable to power a DALI-line with up to 40 standard DALI ballasts
• Suitable for back box installation and integration in protection class II devices
• Power supply range 110Vac … 240Vac for worldwide use
• Surge immunity up to 400V

Overview

• Device for DALI-line expansion
• Control of several DALI-devices via 3 DALI-addresses
• 3 DALI outputs (DALI A,B,C) with integrated DALI power supply (50mA each) for powering control gear and control devices
• For the superordinate DALI circuit the DALI expander acts like 3 separate DALI control gear – 3 DALI addresses, one for each subnet (A, B, C)
• Forwarding commands received at the input (DALI IN) to the corresponding output (DALI A, B, C) broadcast
• Alternative control options of the DALI-output circuits via Switch&Diminputs (Broadcast).
• Group commands are passed from one to the other output circuits (cross function)
• Galvanic isolation between DALI-input and DALI-outputs
• Independent control gear for remote ceiling an integration in luminaires

Overview

• Device for simple DALI line expansion.

• Control of several DALI-devices via one DALI-address.

• For the superordinate DALI line the DALI Expander acts as a DALI EVG (DALI IN) with a single address.

• Output (DALI OUT) with DALI power supply (200mA) for the supply of DALI EVG's and DALI control modules.

• Forwarding commands received at the input (DALI IN) to the output (DALI OUT) broadcast.

• Alternative control options of the DALI-output line via Switch&Dim-input (Broadcast).

Overview

•  Device for DALI-line expansion
• Control of several DALI-devices via 3 DALI-addresses
•  3 DALI outputs (DALI A,B,C) with integrated DALI power supply (50mA each) for powering control gear and control devices
• For the superordinate DALI circuit the DALI expander acts like 3 separate DALI control gear – 3 DALI addresses, one for each subnet (A, B, C)
• Forwarding commands received at the input (DALI IN) to the corresponding output (DALI A, B, C) broadcast
• Alternative control options of the DALI-output circuits via Switch&Diminputs (Broadcast).
• Group commands are passed from one to the other output circuits (cross function)

Overview

• Device to enhance the maximum DALI cable length from 300m up to 600m.
• Enhancement and Transmission of the DALI-signals (bidirectional).
• Galvanic separation between DALIcircuits.
• Either radially arranged network layout or cascaded system mounting operated with single master.
• Cascading (Series wiring) of up to 3 repeaters
• The maximum amount of DALI-devices in the total network is limited to 64, the devices can be divided on the subcircuits freely.
• For each subordinate DALI circuit, a separate bus power supply is needed. (DALI PS)
• Type with integrated power supply available
• Repeater PS: Test button for simple function check of all DALI bus ballasts.
• Repeater PS: Module for DIN rail mounting and for remote ceiling installation available.

Overview

• Device to enhance the maximum DALI cable length from 300m up to 600m.
• Enhancement and Transmission of the DALI-signals (bidirectional).
• Galvanic separation between DALIcircuits.
• Either radially arranged network layout or cascaded system mounting operated with single master.
• Cascading (Series wiring) of up to 3 repeaters
• The maximum amount of DALI-devices in the total network is limited to 64, the devices can be divided on the subcircuits freely.
• For each subordinate DALI circuit, a separate bus power supply is needed. (DALI PS)
• Type with integrated power supply available
• Repeater PS: Test button for simple function check of all DALI bus ballasts.
• Repeater PS: Module for DIN rail mounting and for remote ceiling installation available.

Overview

• Independent light control of up to 256 DALI ballasts on 4 DALI-lines
• Configuration via Ethernet and PCsoftware tool DALI Cockpit.
• Modbus TCP access (control & visualisation).
• With the DALI4Net control devices (input devices and sensors) and control devices on each DALI-line can be configured (Ethernet/DALI Interface).
• Addressing, configuration, status queries, monitoring.
• Collision detection.
• DIN rail mounting.
• 24V power supply (e.g. 24V/300mA Art.Nr. 24166012-24HS).
• Basic version and standard version with additional central functions available.

Overview

•  Independent light control of up to 256 DALI ballasts on 4 DALI-lines
• Configuration via Ethernet and PCsoftware tool DALI Cockpit
• Modbus TCP access (control & visualisation)
• With the DALI4Net control devices (input devices and sensors) and control devices on each DALI-line can be configured (Ethernet/DALI Interface)
• Addressing, configuration, status queries, monitoring
• Collision detection
• DIN rail mounting
• 24V power supply (e.g. 24V/300mA Art.Nr. 24166012-24HS)
• Basic version and standard version with additional central functions available

Overview

• Communication interface between DALIsystems and the configuration software tool: DALI Cockpit.
• Bidirectional data communication for DALI bus monitoring, configuration and control.
• Support of the Standard DALI protocol, DALI-2 protocol, and various extended DALI protocols
• USB and DALI-line are galvanically isolated.
• Supply via DALI-line and USB interface
• Various types available: standard, mini, with integrated 30mA bus power supply, DALI-2 version with integrated 30mA bus power supply, for DIN rail mounting, for DIN rail mounting with flash memory, wireless
• 2 sets of DALI terminals for easy connection - signal line can be looped through

Overview

• Communication interface between DALIsystems and the configuration software tool: DALI Cockpit.
• Bidirectional data communication for DALI bus monitoring, configuration and control.
• Support of the Standard DALI protocol, DALI-2 protocol, and various extended DALI protocols
• USB and DALI-line are galvanically isolated.
• Supply via DALI-line and USB interface
• Various types available: standard, mini, with integrated 30mA bus power supply, DALI-2 version with integrated 30mA bus power supply, for DIN rail mounting, for DIN rail mounting with flash memory, wireless.
• 2 sets of DALI terminals for easy connection - signal line can be looped through
