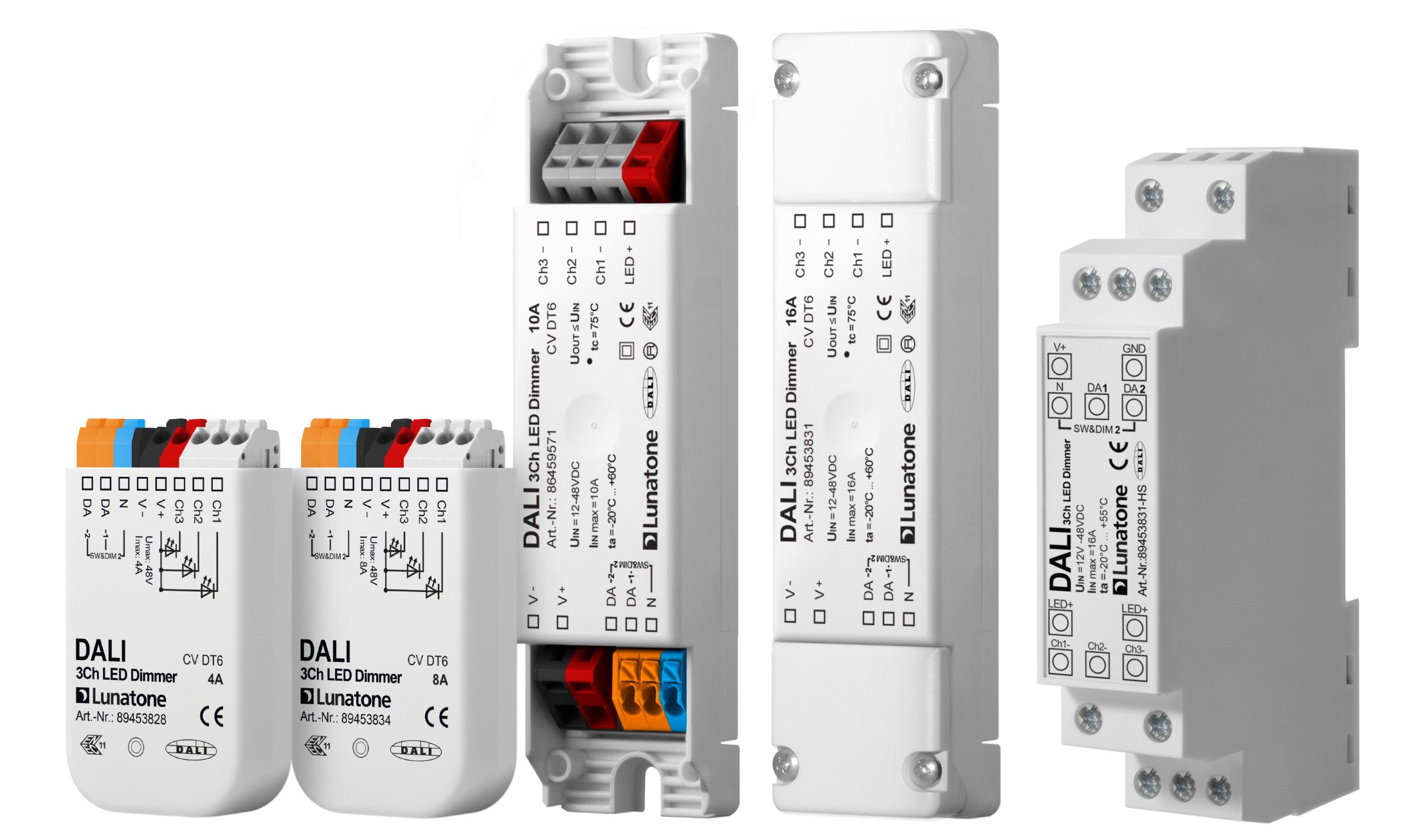

DALI 3Ch LED Dimmer 16A DIN rail

Overview

• The 3-channel DALI LED Dimmer is designed for constant voltage LED modules operating between 12V and 48V.
• It offers two main operating modes:
• DT6: Each channel can be controlled via its own DALI address (3 addresses total).
• Colour&Dim: Uses 2 DALI addresses—one for light level adjustment and one for color adjustment.
• SwitchDim2: Provides control via 2 switch inputs for light level and color without DALI.
• The dimmer supports a range of 0.1% to 100% dimming and features adjustable PWM frequencies (122Hz, 244Hz, 488Hz, 976Hz; with firmware version 4.6 and later, frequencies are 250Hz, 500Hz, 1kHz).
• It is compact for integration in luminaires and remote ceiling applications.
• The supply voltage ranges from 12V to 48V DC, with maximum input currents of 4A, 8A, 10A, or 16A, which can be distributed among the channels (max 10A per channel).
• The dimmer is energy-efficient with low standby power consumption and is configurable via PC software DALICockpit and a DALI USB interface.
• It includes user-friendly factory default settings.
