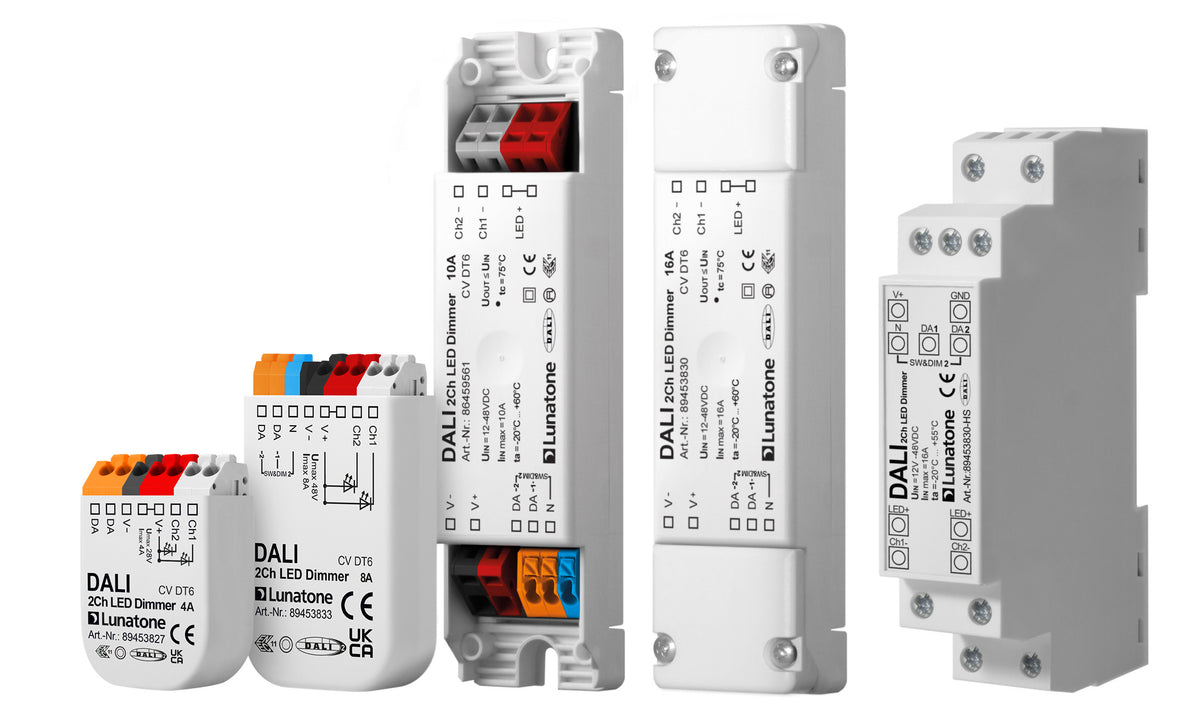

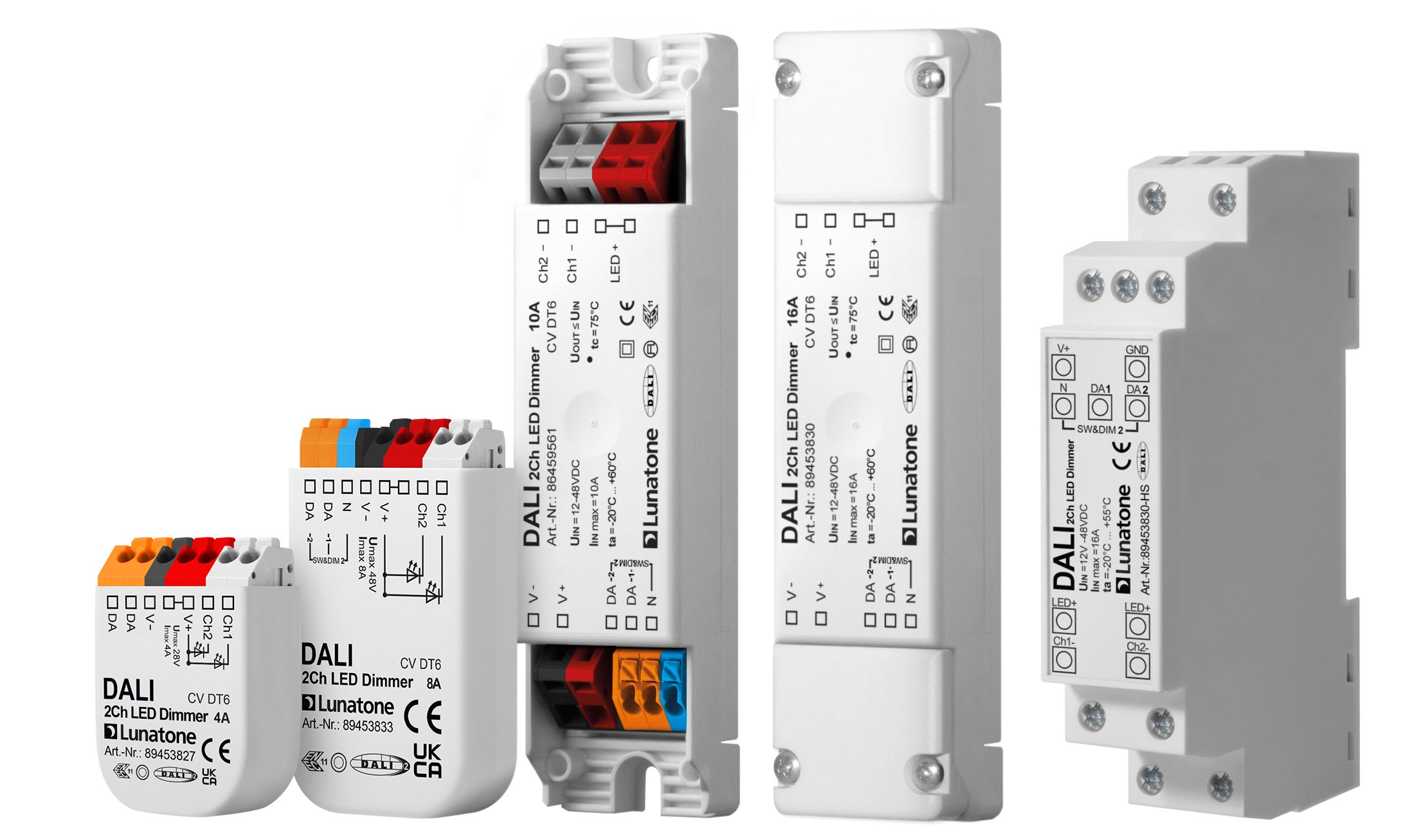

DALI 2Ch LED Dimmer 16A

DALI 2Ch LED Dimmer 16A

DALI 2Ch LED Dimmer 16A

Product SKU: 89453830

UL Listed: Yes

Overview

The 3-channel DALI LED Dimmer is designed for constant voltage LED modules operating between 12V and 48V. It offers two main operating modes:
DT6: Each channel can be controlled via its own DALI address (3 addresses total).
Colour&Dim: Uses 2 DALI addresses—one for light level adjustment and one for color adjustment.
SwitchDim2: Provides control via 2 switch inputs for light level and color without DALI.
The dimmer supports a range of 0.1% to 100% dimming and features adjustable PWM frequencies (122Hz, 244Hz, 488Hz, 976Hz; with firmware version 4.6 and later, frequencies are 250Hz, 500Hz, 1kHz).
It is compact for integration in luminaires and remote ceiling applications.
The supply voltage ranges from 12V to 48V DC, with maximum input currents of 4A, 8A, 10A, or 16A, which can be distributed among the channels (max 10A per channel).

Want it delivered by

Available:

Only 0 item in stock

0 item in stock

In stock

Out of stock

Back in stock

$90.60

~~$120.80~~

Description
Reviews

DALI 2Ch LED constant voltage PWM 16A, Uin 12-48V, SwitchDim2, dim2warm, balance&DIM

The device offers two operating modes: DT6 and Colour&Dim.
DT6 (Factory Default): Each channel is controlled via its own DALI address (Device Type 6).
Alternatively, it can be managed with two switch inputs for mains voltage (SwitchDim2):
SwD1: Controls light level (short press for On/Off, long press for dimming).
SwD2: Scene selector (short press to select pre-set scenes).
From firmware version 4.6, the dimmer supports DALI 2 commands and is compatible with DALI 2 standards.
Colour&Dim: Designed for RGB luminaires, using two DALI addresses—one for light level and one for color distribution.
This mode allows independent adjustment of color and light level.
It supports standard DALI commands like dim up/down and DAP, making it compatible with common controls and gateways (e.g., KNX).
Colour&Dim mode serves as an alternative to the DT8-RGBWAF device.
