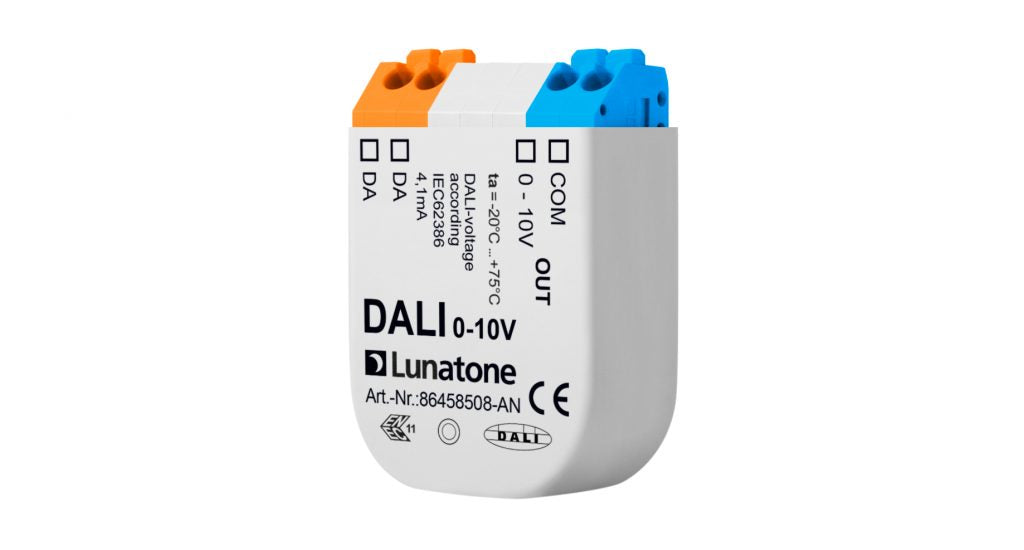

DALI 0-10V analog galv. getrennt
DALI 0-10V analog galv. getrennt
LUNATONE

DALI 0-10V analog galv. getrennt

Product SKU: 86458508-AN
UL Listed: Yes

Overview

  • Module converting DALI dimming commands into analogue 0-10V signal (DALI DT5)
  • The module is especially designed to operate with drivers with 0-10V control input
  • Transformation of DALI 8-Bit arc power level into analogue output signal from 0V to 10V
  • Selection of linear or logarithmic dimming curve (DT5)
  • Factory default are the default DT5 settings: output range 1-10V, logarithmic dimming curve
  • Maximum output current of 1mA (current sink)
  • The DALI 0-10V must not be connected to the mains. It is supplied directly by the DALI signal line.
Want it delivered by
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
$41.59
$55.45
Notify me When Available
You will receive an email when the product is available.
Wishlist
  • Description
  • Auto Calibration Mode

Converter DALI to 1-10V 1mA, elec. Isolated, DALI supplied, built in

  • The DALI 0-10V module is based on the standard for DALI control gear (IEC 62386-102) and device type 5 extension (IEC 62386-206).
  • With few exceptions the entire instruction set defined by the DALI standard is supported.
  • For changing dimming curve DALI commands for device type 5 are implemented.
  • Commands and functions referring to the SYSTEM FAILURE LEVEL are not supported.
  • This parameter is used as the dim level that should be applied on the output in case of a DALI line outage.
  • Since the DALI 0-10V is a bus powered device there is no possibility to apply a specific predefined signal on the output without being under power.
  • In the case of a DALI-line outage 100% are applied on the output.
  • On power up the DALI 0-10V converter is evaluating if the calibration values for the output values are still correct or if a recalibration is required.
  • A calibration will last up to 2 minutes.
  • The auto calibration routine can be deactivated and manually triggered via DALI-Cockpit software tool.
  • During the calibration the device does not react to any dimming commands.
  • The DALI Cockpit provides information if the device is in normal operation or if the auto calibration is running.
