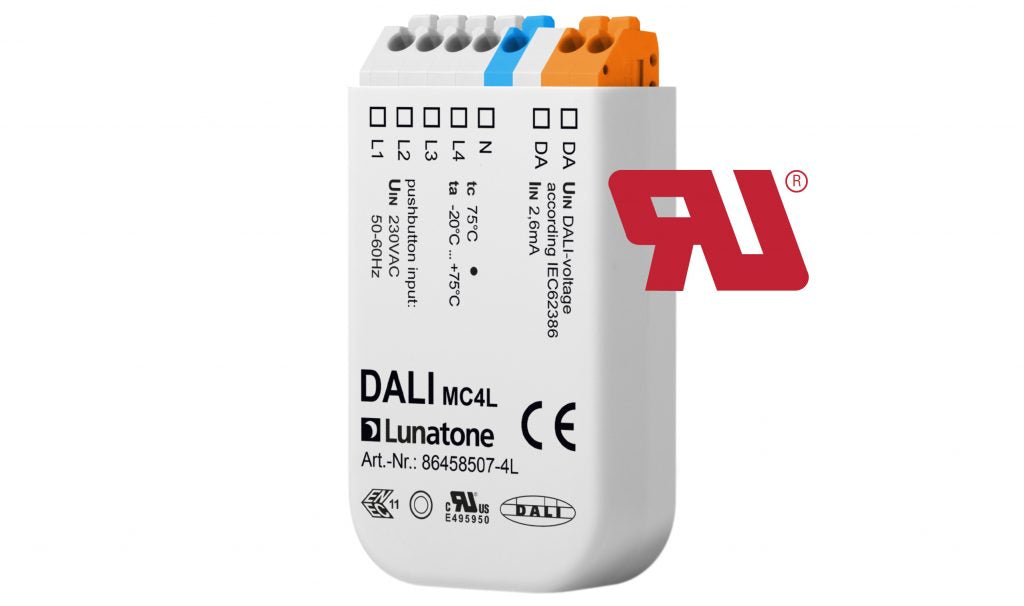

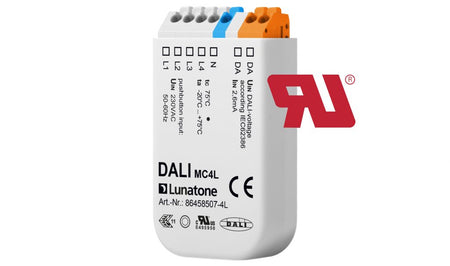

DALI MC4L DIN Rail

Push Button Coupler, input 4 x 230V (10m), flexible configurable, sequencer, macros, DT8, DIN Rail

• The DALI MC4L is designed for back box installation or integration in protection class II devices, with proper cable relief required for installation.
• The DALI MC4L-HS is suitable for DIN rail mounting, ensuring protection against electric shock with an appropriate enclosure.
• Wiring must be a fixed installation in a dry, clean environment, performed only by qualified personnel when no voltage is applied.
• National electrical installation regulations must be followed.
• The DALI MC4L/MC4L-HS is powered by the DALI line, eliminating the need for a separate power supply, and the connection to the DALI line is polarity-free.
• The DALI line should be wired using standard low voltage installation materials and can handle mains voltage, protecting the device from incorrect wiring.
• The DALI line's wiring topology can be configured as a line, tree, or star.
• Switching inputs are designed for use with line voltage and are galvanically separated from the DALI line.
• Line voltage must be appropriately fused based on the wire size, with only one wire per terminal.
