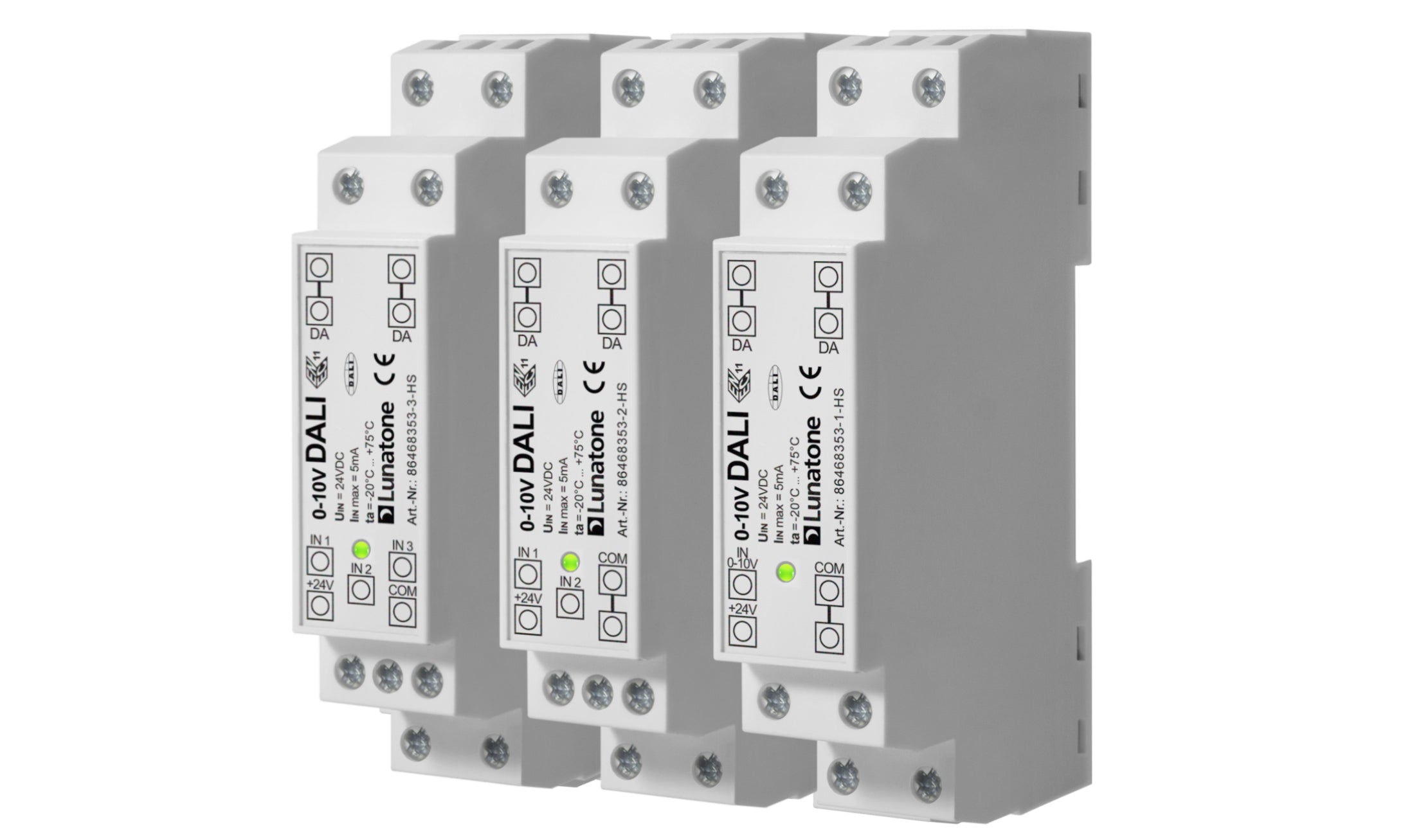

3x0-10V DALI HS 3ch DT6

Overview

• Small interface module for the conversion of 0-10V control signals to DALI dim levels
• Devices with 1, 2 and 3 channels available
• The 0-10V voltage is transformed to a a DALI dim level and DALI-command Off and sent to the defined effective range on the DALI line
• A change on the 0-10V input voltage (<1%) is used as event trigger
• Supply voltage 12V to 24V DC (e.g. 24V/300mA Art.Nr. 24166012-24HS), multiple devices can be supplied by the same supply voltage
• Configuration of effective range and conversion characteristic (conversion curve and behaviour below 1V input voltage) via DALI-Cockpit and DALIUSB-interface
