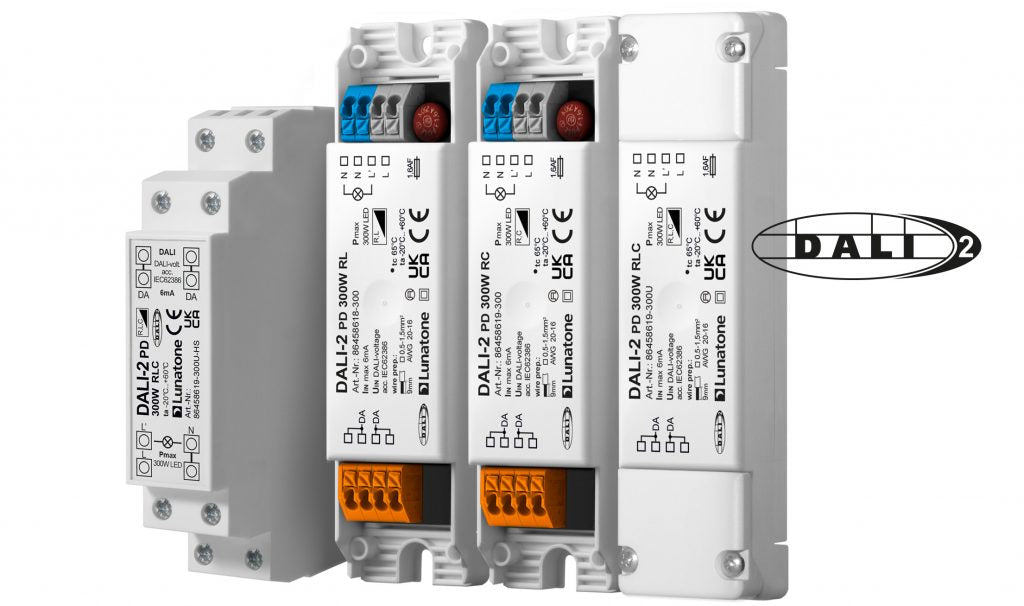

DALI PD 10-300W ab/anschnitt R,L,C

DALI phase dimmer 10-300W (resistive load), leading/trailing edge R,L,C DIN rail

• The DALI PD300 is suitable for integration in protection class II devices, ensuring proper cable relief during installation.
• It serves as an independent control gear, ideal for remote ceiling installations and integration into luminaires.
• When built into protection class II devices, cable relief must be properly maintained.
• The DALI PD300 (HS-type) is also designed for DIN rail mounting, requiring protective enclosures to prevent shock hazards.
• Wiring should be done as a permanent installation in a dry, clean environment.
• Only qualified specialists should handle the installation, and the system must be voltage-free during installation or when replacing luminaires.
•  All national regulations for setting up electrical systems must be followed.
• Connect the power supply terminals L and N to mains voltage as labeled, and attach terminals L' and N, or the terminal with the light bulb symbol, to the load.
• Ensure that the wiring length to the load does not exceed 50 meters.
• Only connect luminaires that fall within the rated power range of the dimmer and are compatible with the load type.
• Pay special attention to the power factor of luminaires, especially for lamps with a rated power below 25W.
