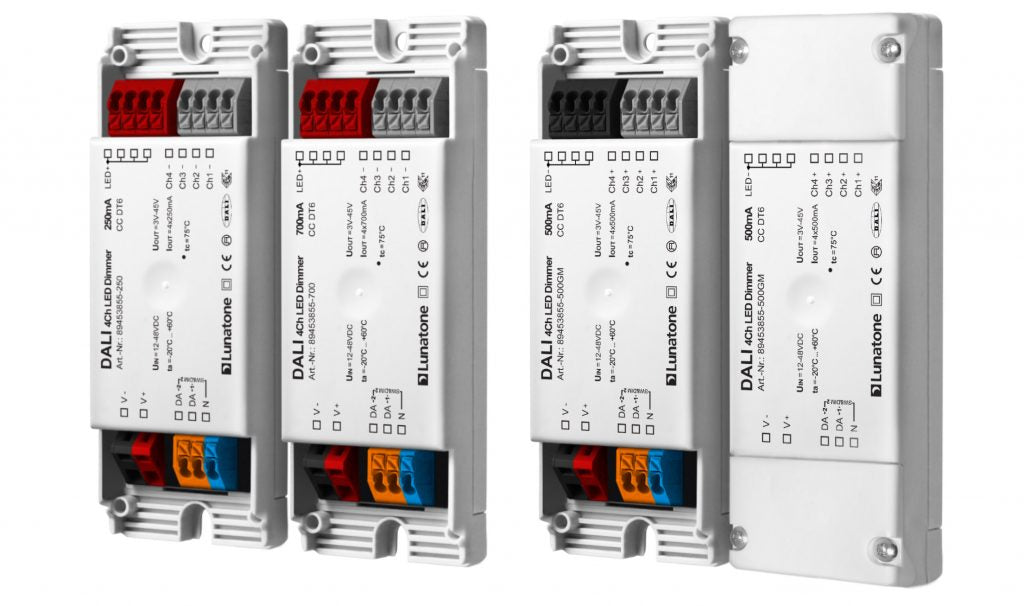

DALI 4Ch CC 350mA gem+
DALI 4Ch CC 350mA gem+
LUNATONE

DALI 4Ch CC 350mA gem+

Product SKU: 89453855-350
UL Listed: Yes

Overview

  • The 4-channel DALI LED Dimmer is designed for constant current LED modules.
  • It supports two operating modes: DT6 for individual channel control using 4 DALI addresses, and Colour&Dim, which uses 2 DALI addresses—one for light level adjustment and one for color adjustment.
  • Additionally, SwitchDim2 mode allows control of light level and color with 2 switch inputs, bypassing DALI.
  • The dimmer offers a dimming range from 0.1% to 100% and comes in versions with a common plus connector for currents up to 500mA or a common minus connector (GM) for currents up to 700mA.
  • It is an independent control gear suitable for integrating into luminaires (Class II) and for remote ceiling installations.
  • The device operates with a supply voltage of 12V to 48V DC and provides an output voltage of up to 45V DC.
Want it delivered by
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
$112.88
$150.50
Notify me When Available
You will receive an email when the product is available.
Wishlist
  • Description

DALI 4Ch LED constant current PWM 350mA com +, Uin 12-48V, Uled 3-45V, SwitchDim2, colour&DIM

  • The DALI 4Ch LED Dimmer is an independent control device, ideal for remote ceiling and luminaire integration.
  • It must be installed with proper cable relief for Class II equipment.
  • Install the dimmer in a dry, clean environment and ensure the system is powered off during installation, which should be done by qualified professionals.
  • Adhere to all national electrical regulations.
  • Connect the V+ and V- terminals to a DC power supply of SELV (Safety Extra Low Voltage) as labeled.
  • The DALI-line connections (DA, DA) are polarity-free, allowing for flexible wiring.
  • This dimmer is designed for ease of use and safety, making it suitable for various lighting setups where reliable and effective control is needed.
