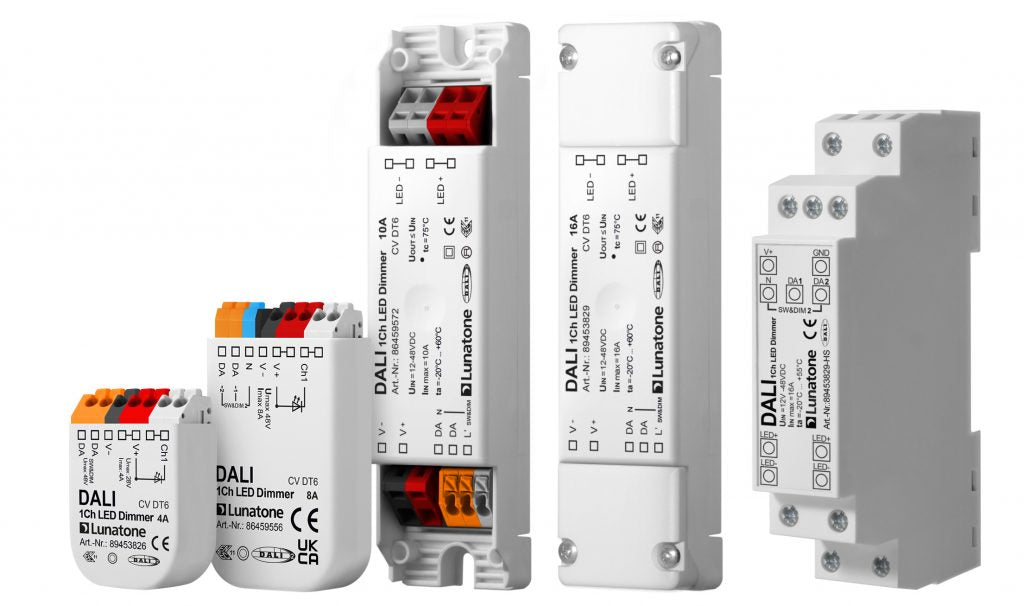

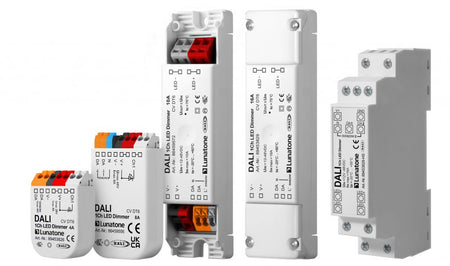

DALI 1Ch LED Dimmer 16A

DALI 1Ch LED constant voltage PWM 16A, Uin 12-48V, Sw&Dim

• The device's output is controlled via its DALI address (Device Type 6).

• Alternatively, it can be managed through one or two switch inputs:

• Sw&Dim: Controls light level. A short press toggles On/Off, while a long press adjusts dimming.

• SwitchDim2: Offers scene selection with a short press (see Table 1, page 9).

• Pressing the SwD1 input for 2 minutes activates the "corridor function," which remains active until the device is power cycled (defaulting to standard SwitchDim mode on power up).

• Holding SwD1 for over 30 seconds allows synchronization of multiple devices in Sw&Dim mode.

• Corridor Function (from FW 4.0):

• This mode provides a staircase function, allowing control via motion sensors.

• When activated, the LED output switches to maximum level.
• After a defined hold-time, it transitions to a second light level for a set period before returning to the base level.
