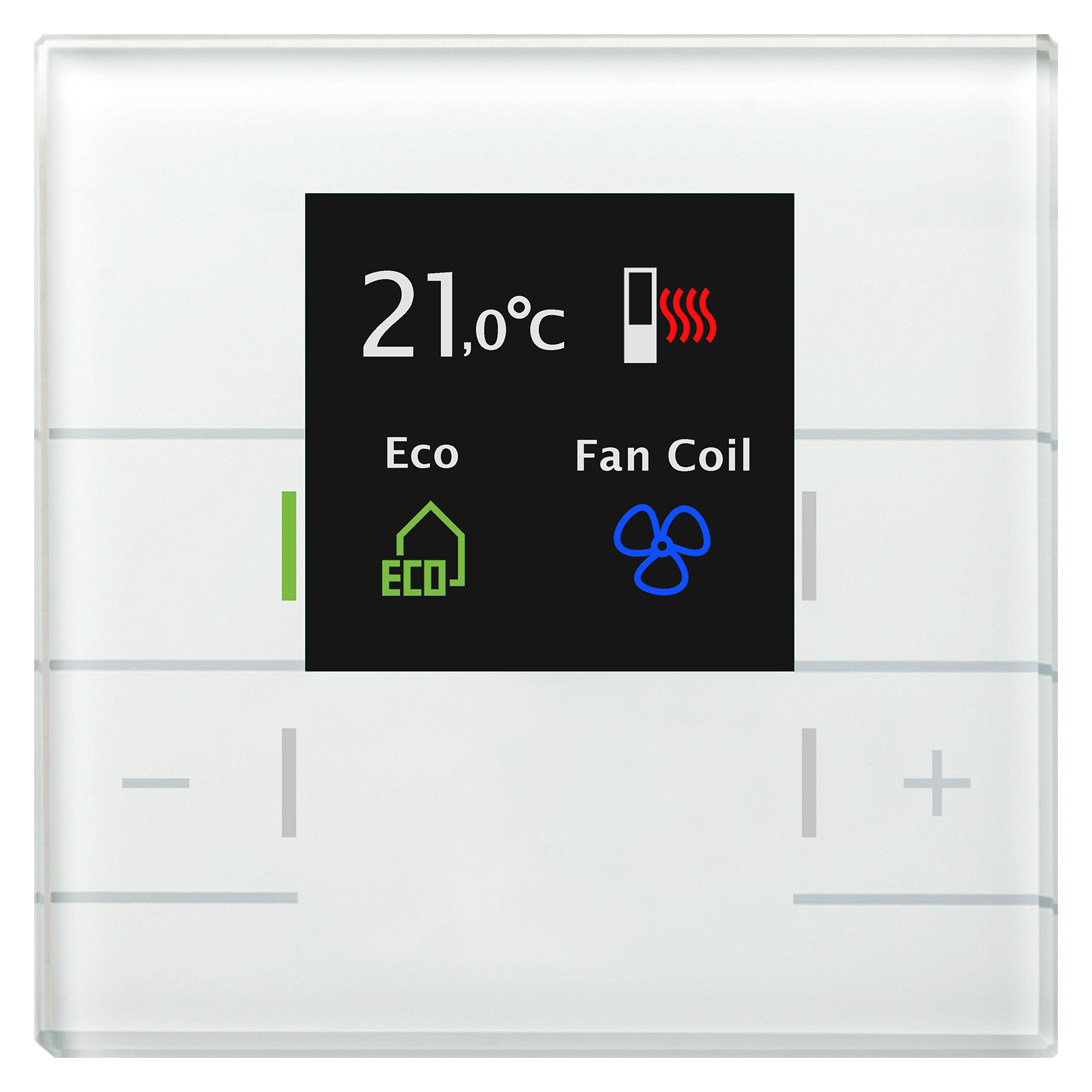

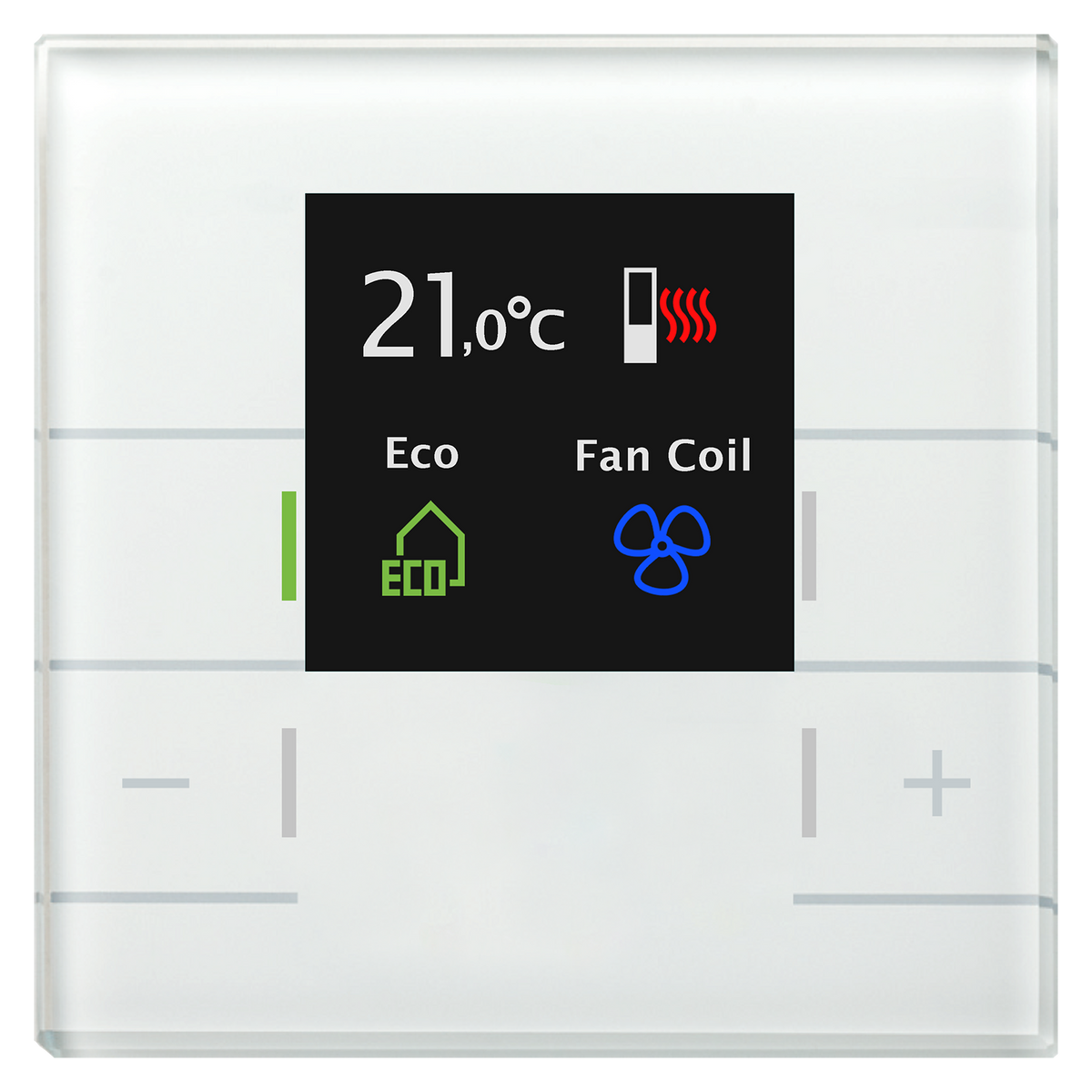

KNX Glas Room Temperature Controller Smart with colour display, White

Product features

• KNX Glas Room Temperature Controller Smart with colour display, White.
• Version with active colour display and 4 sensor surfaces.
• Active colour display for function and status indication.
• Selectable background colour and brightness of the display (white or black).
• Display of set- and actual temperature.
• Room Temperature Controller for rooms, Measurement range -10 ... +50 °C.
• Selectable controller type (2-step, PI, PWM).
• Operation as room temperature extension unit possible.
• Easy setpoint adjustment over separate +/- Push-buttons.
• 1 Bit +/-, 1 Byte or 2 Byte absolute object for setpoint adjustment.
• Setpoint storage in the event of a bus power failure.
• Temperature min/max memory, messages and Frost/heat protection alarm.
• Operation mode change via Bit/Byte object.
• Ventilation control with manual and automatic operation.
• 14 Byte object for plain text diagnosis.
• Installation in an installation box using the included installation frame.
• Recommended installation height: 1.60 m.
• Dimensions (H x W): 92 x 92 mm.
• Integrated Bus coupler.
• 3 year warranty.
