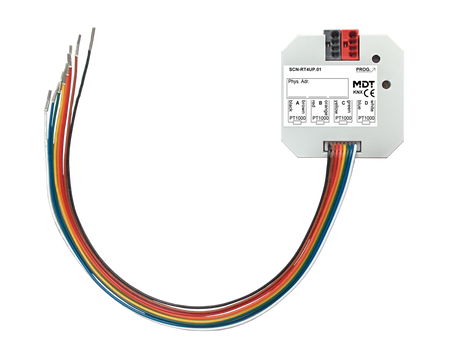

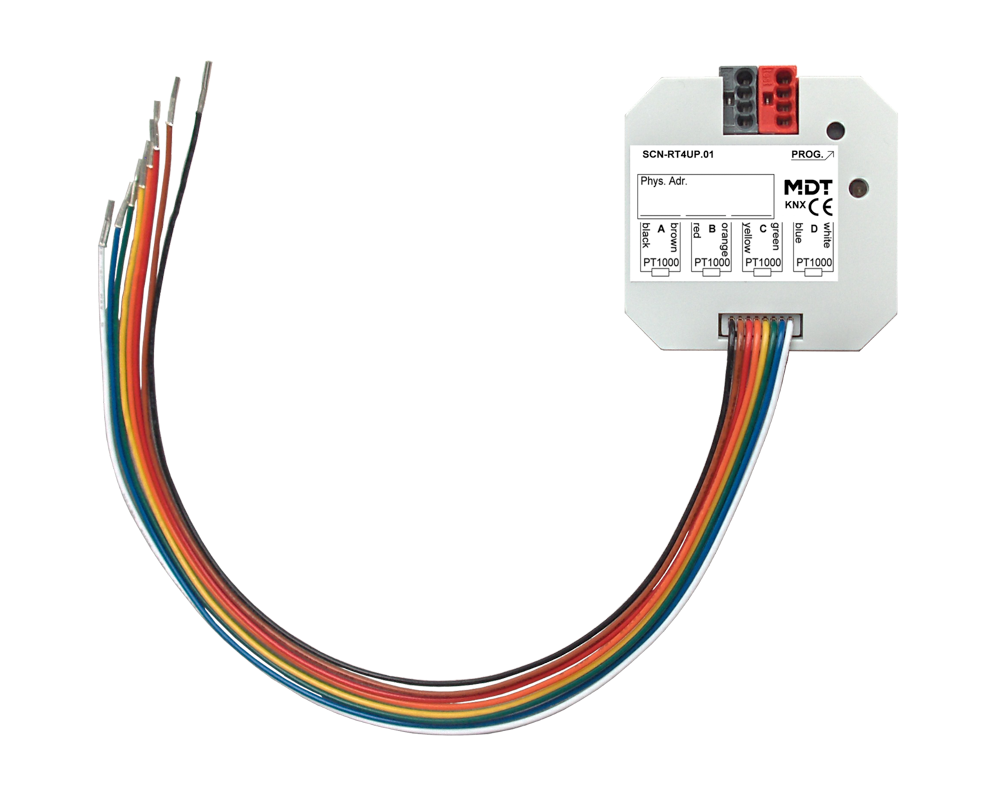

KNX Temperature Controller/Sensor 4-channel, flush mounted

Product features

• KNX Temperature Controller/Sensor 4-channel, flush mounted.
• Version to measure the inside/outside temperature.
• Installation in an installation box.
• Selectable controller type (2-step, PI, PWM) or sensor operation.
• Temperature measurement over external PT1000 sensor.
• Temperature min/max memory, messages and Frost/heat protection alarm.
• Cyclic sending, selectable.
• Day-/night-/frost-/heat protection mode, cooling function.
• Status via HVAC and RHCC objects.
• Operation mode change via Bit/Byte object.
• Setpoint adjustment via visualisation, e.g MDT VisuControl.
• Installation in an installation box.
• Dimensions (H x W x D): 41 x 41 x 12 mm.
• 3 year warranty. Accessories.
• Temperature sensor PT1000 Standard, strap on installation or for ceiling installation.
