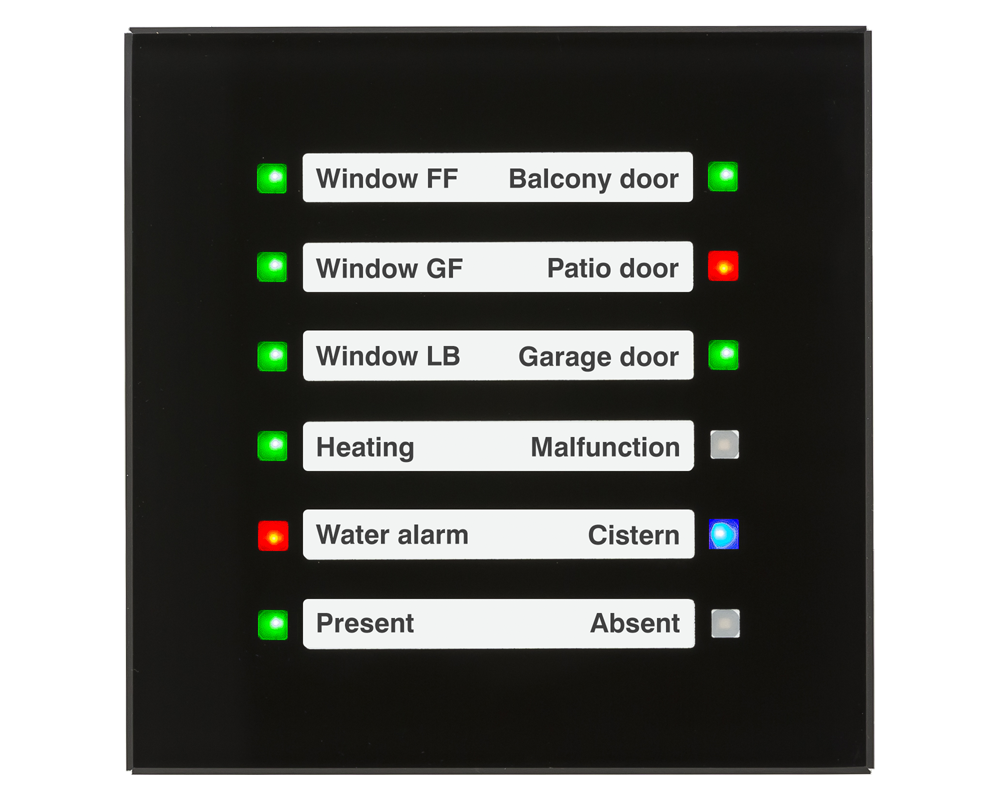

KNX Glass LED Indicator, Black

Product features

• KNX Glass LED Indicator, Black.
• Version with 12 RGB-LEDs.
• With black housing rear part.
• 12 switchable RGB status LEDs.
• Labelling foil to insert under the glass surface.
• 3 Objects per LED.
• 5 possible states per LED (Value=0, Value=1, 2 Priorities object, Object failure).
• 8 logic blocks each with 8 inputs.
• 4 Modules to compare telegrams.
• 2 Brightness levels.
• Day/Night function.
• Switch off/reduction of brightness.
• Present/absence object.
• Failure monitoring of the objects with an alert function.
• Object with reporting function (e.g. absence or open window).
• Installation in an installation box using the included installation frame.
• Dimensions (H x W): 92 x 92 mm.
• Integrated Bus coupler.
• 3 year warranty.
