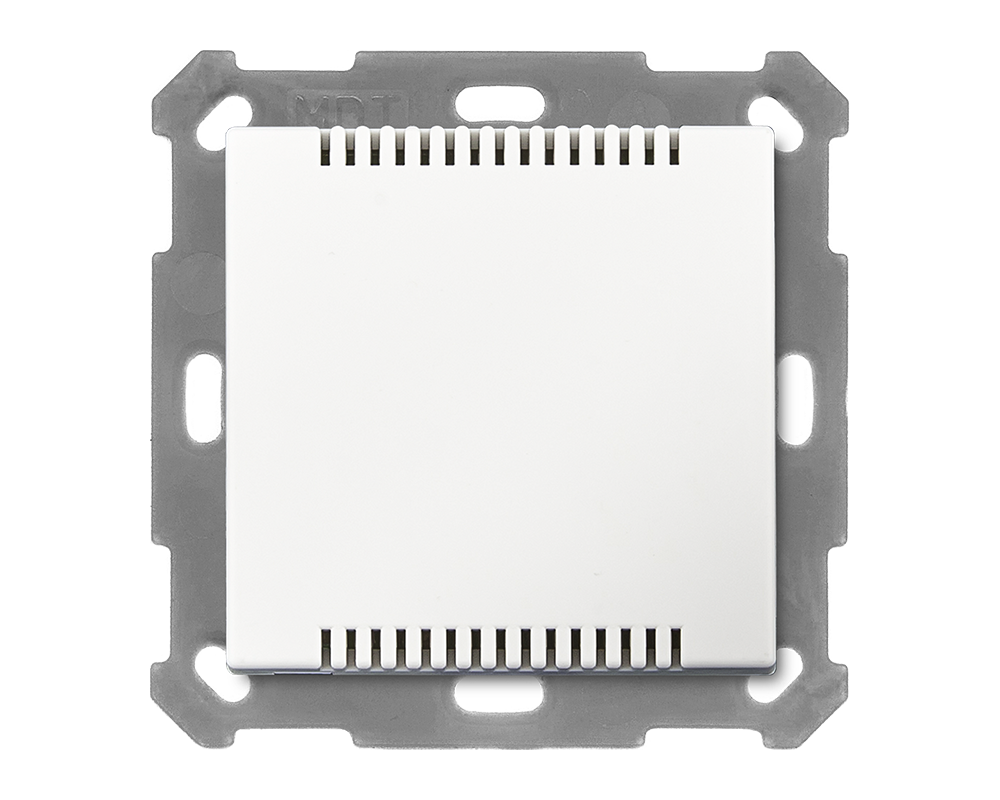

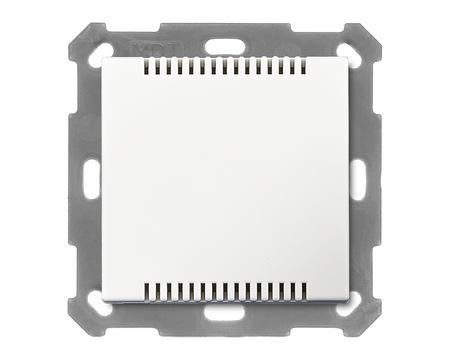

KNX CO2 / VOC Combi Sensor 55, White glossy finish

Product features

• KNX CO2 / VOC Combi Sensor 55, White glossy finish.
• Version with 2 Sensors.
• Suitable for 55 mm switch ranges e.g. MDT assortment 55, GIRA Standard 55, E2, E22, Event, Esprit, BERKER S1, B3, B7, JUNG A 500, A PLUS, A CREATION, AS 500, A 550, A FLOW or MERTEN 1M, M-Smart, M-Plan, M-Pure.
• Combi Sensor to measure the CO2 and Mixed gas concentration (VOC), the room temperature and the relative humidity.
• Upper and lower threshold value selectable per measured value.
• Integrated room temperature controller (2-step, PI, PWM).
• Air quality control function selectable as step-/ PI-controller for CO2-/ or VOC-sensor.
• 4-step controller with 1 Bit outputs or 1 Byte output with selectable thresholds.
• Adjustable PI controller, external setpoint shift.
• Air quality status indication light for CO2 or VOC concentration with 4 colour channels and adjustable output objects (1-bit / scenes / RGB / HSV).
• Day/Night function.
• Installation in an airtight flush mounted installation box using the included installation frame.
• Supply voltage via KNX bus, no auxiliary voltage required.
• Integrated Bus coupler.
• 3 year warranty.
