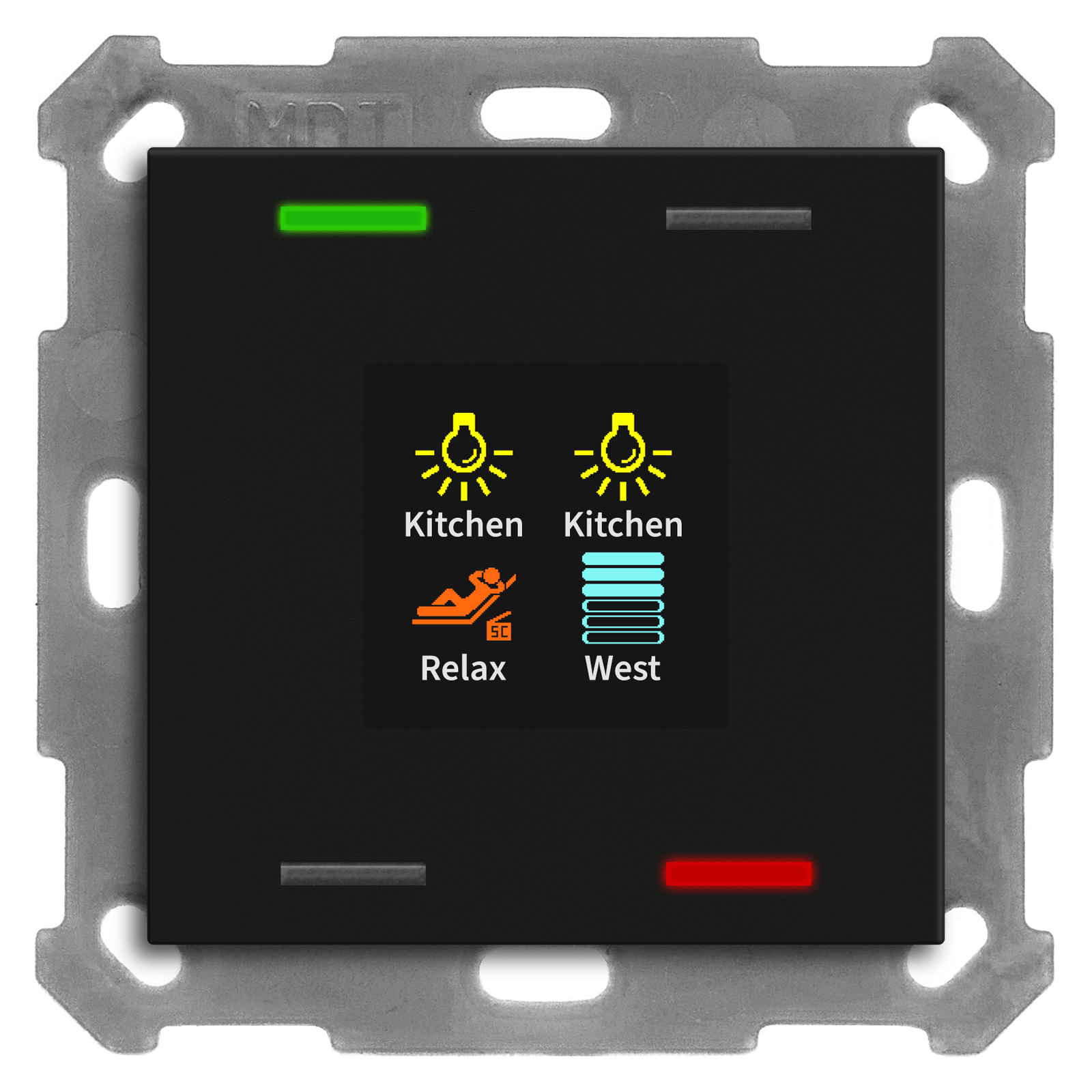

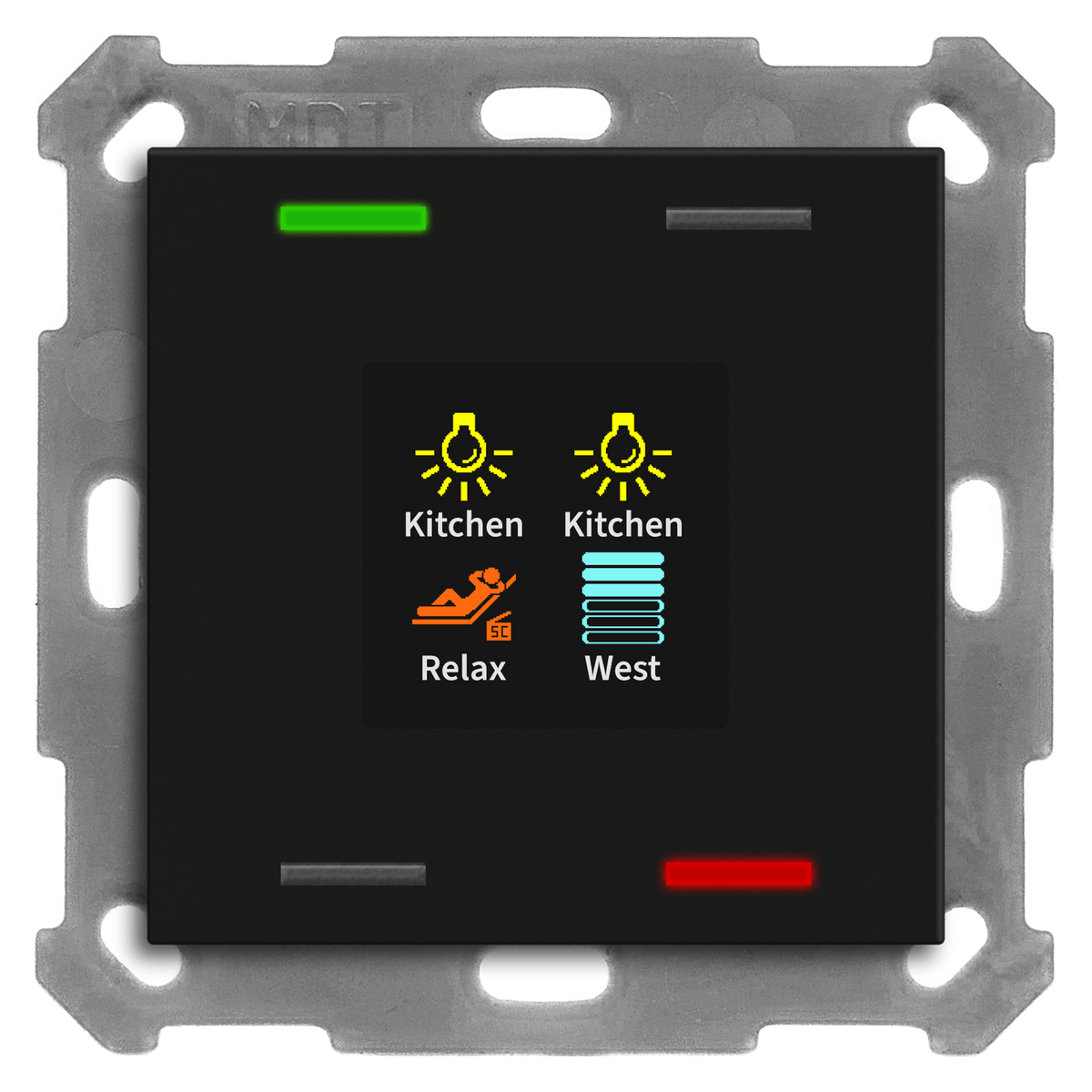

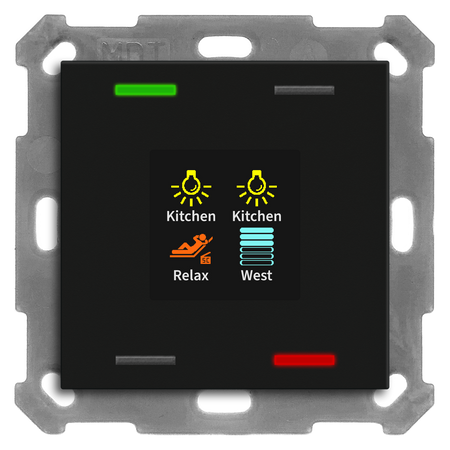

KNX Push Button Smart 55 4 gang, with colour display, Black matt

Product features

• KNX Push Button Smart 55 4 gang, with colour display, Black matt.
• Version with 4 Push-buttons.
• Suitable for 55 mm switch ranges e.g. MDT assortment 55, GIRA Standard 55, E2, E22, Event, Esprit, BERKER S1, B3, B7, JUNG A 500, A PLUS, A CREATION, AS 500, A 550, A FLOW or MERTEN 1M, M-Smart, M-Plan, M-Pure.
• Active colour display for function and status indication.
• Selectable background colour and brightness of the display (white or black).
• Display brightness adjustable over brightness- and day/night object.
• Display of inside-/outside temperature and time of day.
• Multitouch-function, sends up to 4 values on the same or different objects.
• Innovative group control with long/extra long button press.
• Singular and double Push-button operation for switching, dimming, shutters, values.
• Adjustable symbols and texts for each button/function.
• Short/Long button press with 2 objects.
• Installation in an installation box using the included installation frame.
• Recommended installation height: 1.05 ... 1.20 m.
• Integrated Bus coupler.
• No additional power supply required.
• 3 year warranty.
