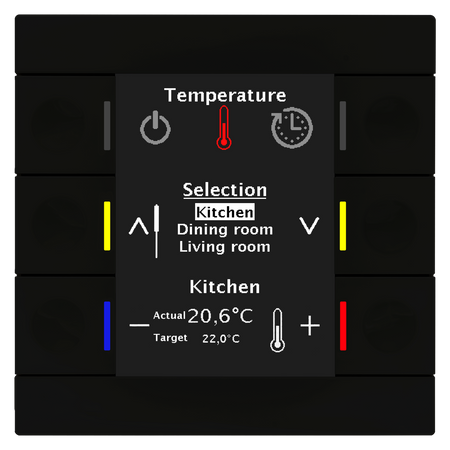

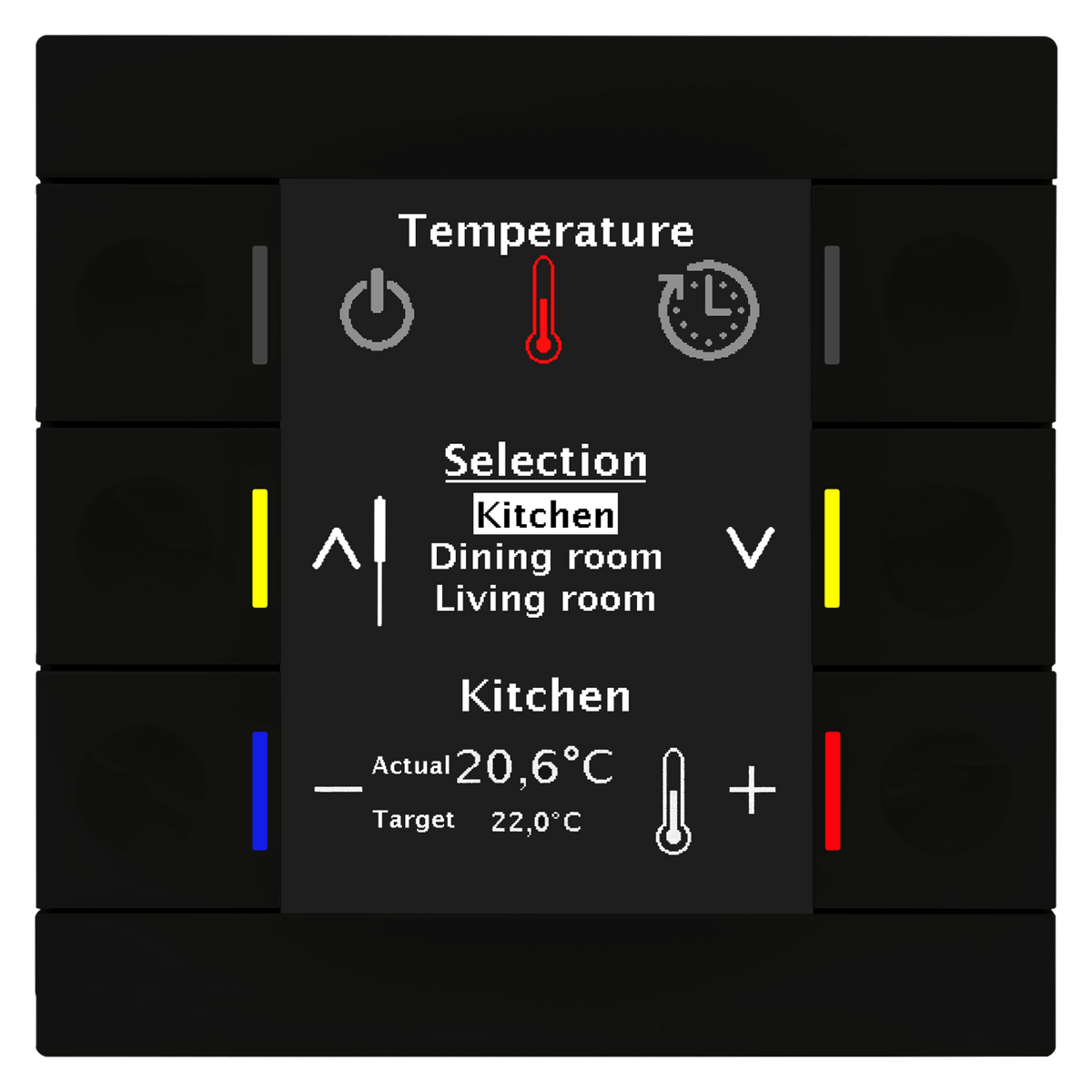

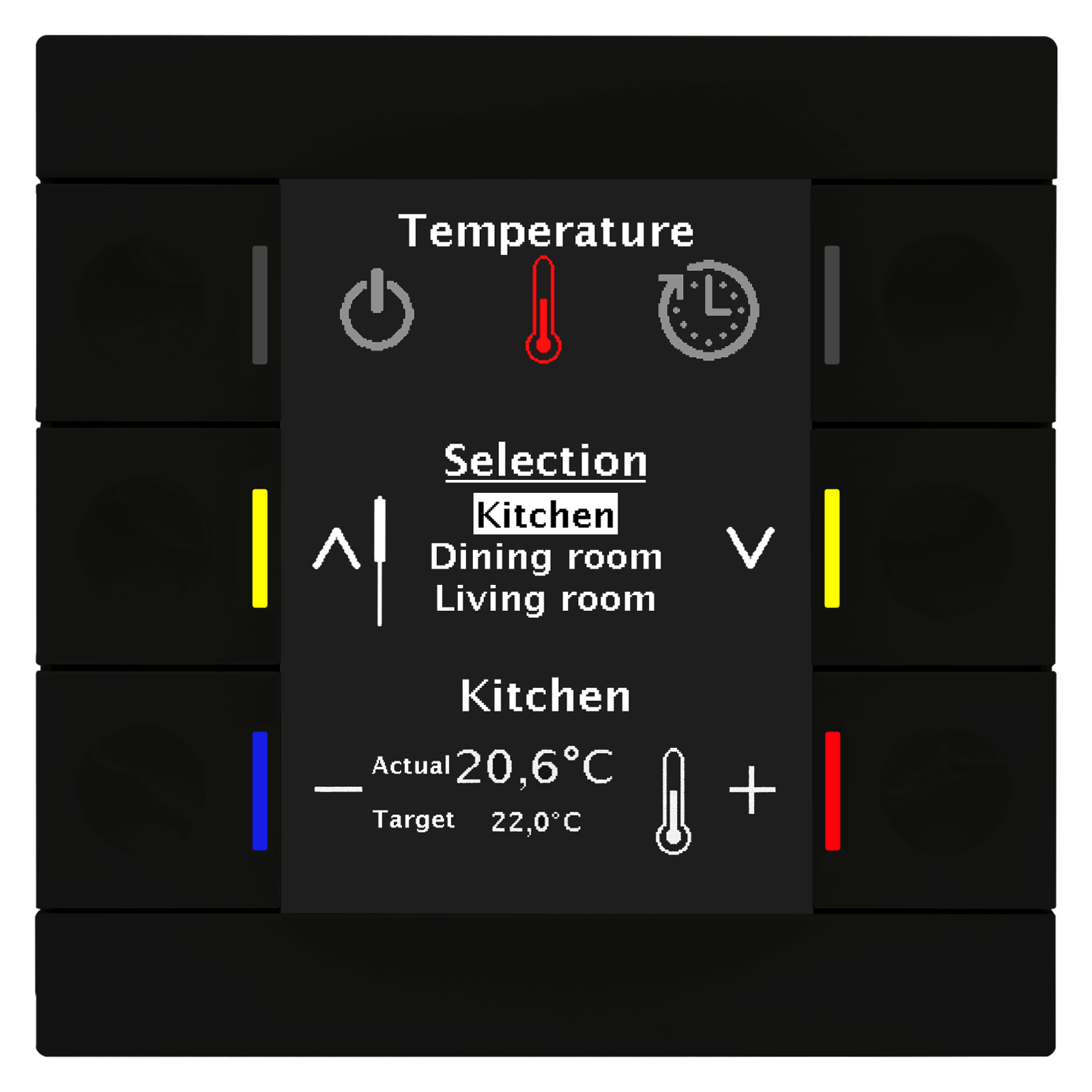

KNX Central Operation Unit Smart 86 with colour display, Plastic, Black matt finish

Product features

• Large, active colour display (automatic brightness adjustment).
• Four direct operating functions for frequently used functions.
• 20 functions via menu and time switch (e.g. dimming/ blinds/ switching/ sending values/ scenes/ temperature setpoints).
• Code lock with 4-6 digits, to lock and unlock the device or alarm activation.
• Daily-/weekly-/astro switch function (20 channels each with 8 switching times).
• Holiday function with time frame activation.
• Automatic bank holiday calculation.
• Comfortable room temperature controller with temperature sensor.
• Ventilation control with manual and automatic operation.
• Display of inside-/outside temperature, setpoint value and time of day/date.
• Display of status information (1 Bit) and notification (14 Byte).
• 6 status LEDs independently controllable.
• 6 logic blocks each with 4 inputs.
• No additional power supply required.
• Installation in an installation box using the included installation frame.
• Dimensions (H x W): 86 x 86 mm.
• Recommended installation height: 1.60 m. Integrated Bus coupler.
• 3 year warranty.
