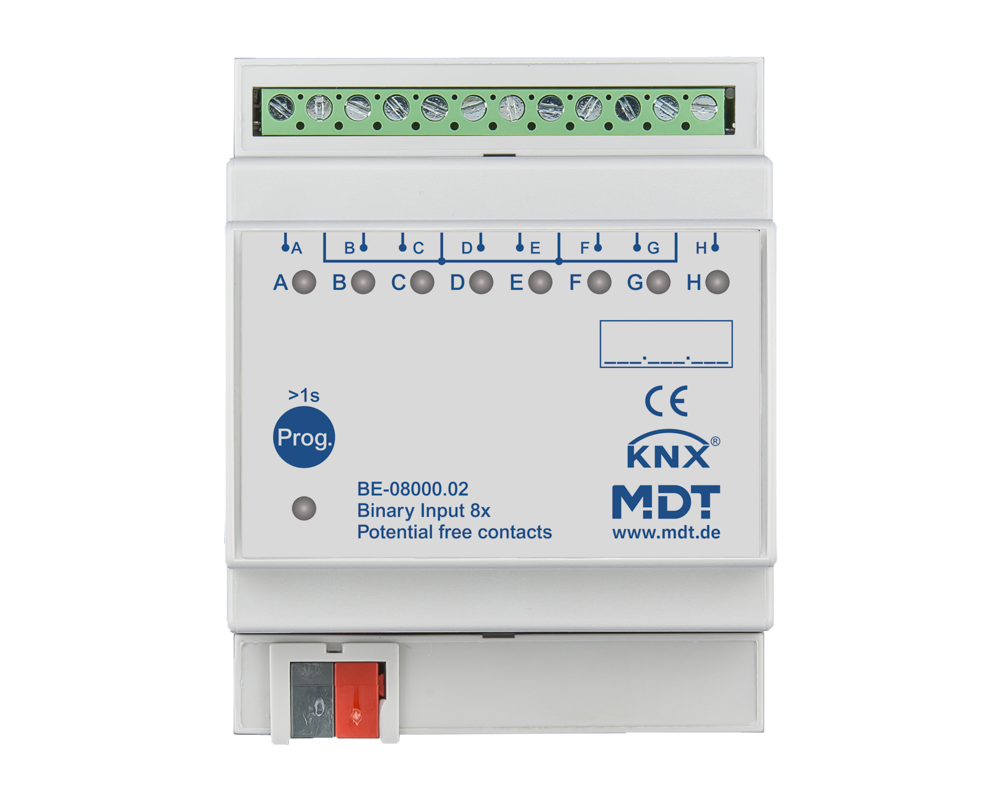

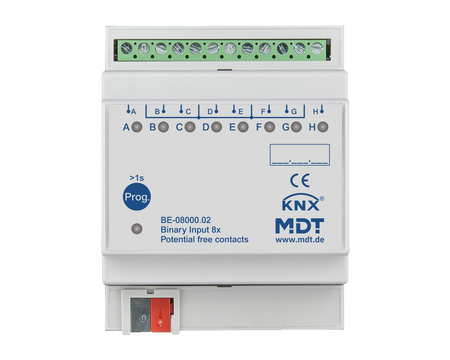

KNX Binary Input 8-channel, 4 SU MDRC, Potential free version

Product features

• KNX Binary Input 8-channel, 4 SU MDRC, Potential free version.
• Version to connect potential free contacts.
• LED indicator for each channel, Max. cable length 100 m.
• To connect Push-buttons, switches, window contacts.
• Multitouch-function, sends up to 4 values on the same or different objects.
• Innovative group control with long/extra long button press.
• 4 integrated logic modules, e.g., to evaluate the inputs (closed window or send a second object).
• NO- and NC operation, contact status send.
• Dimmer- and shutter function for singular- and double Push-button operation.
• Sending of values, forced operation.
• Scenes and blocking object for each channel.
• Short/Long button press with 2 objects.
• Pulse and switch counter with extensive counter functions (suitable for 30 ms S0 pulse, e.g Eltako DSZ ).
• Cyclic sending, sending after reset.
• Internally generated 12 V contact voltage.
• 3 year warranty.
