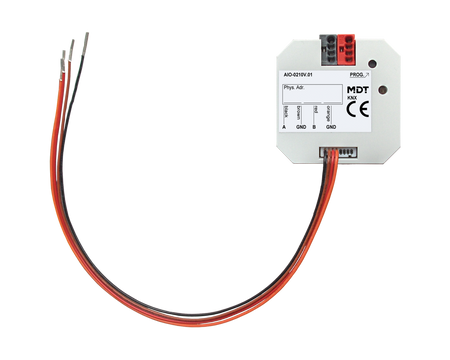

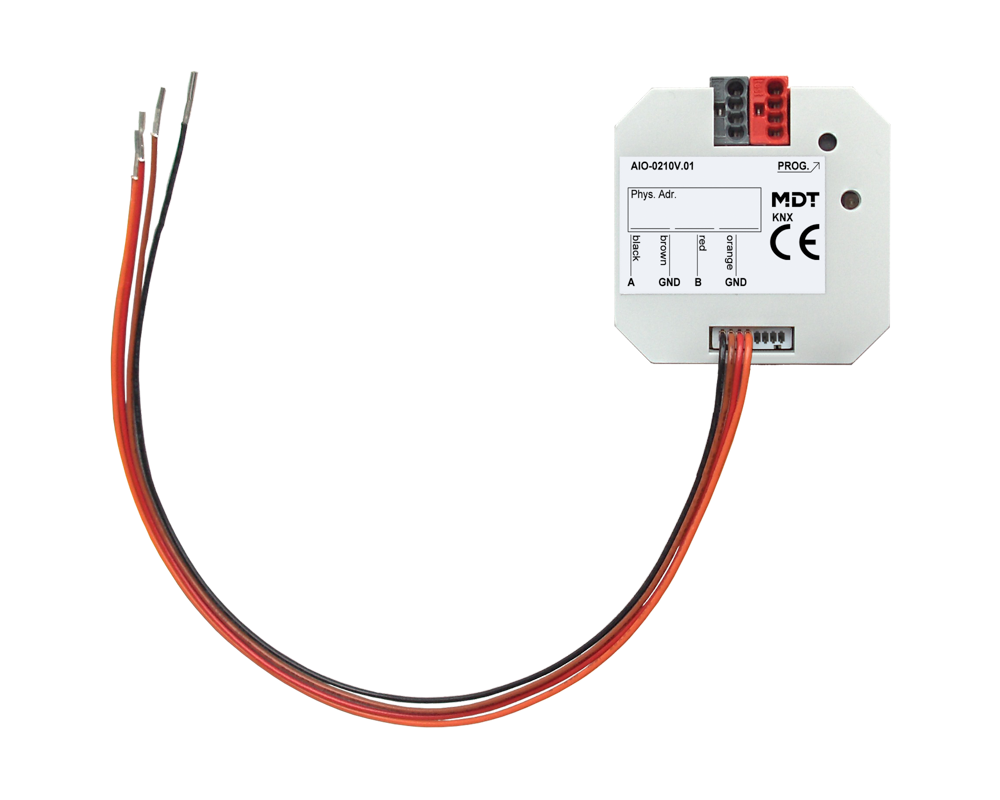

KNX Analog I/O 2-channel, flush mounted, 0 - 10 V, switchable In-/Output

Product features

• Each channel can be independently configured (in-/output).
• In-/output galvanically isolated from the KNX Bus. In-/output have a common GND.
• Voltage for output operation is generated in the actuator.
• No external power supply required.
• Input mode: Sensor type 0-10 V / 2-10 V or 0-20 mA / 2-20 mA (selectable), measured value scaling, adjustable data point types, min/max values, wire break detection, threshold value- and step control function.
• Output mode: 0-10 V, selectable data point type, control input via 1 bit / 1 byte / 2 bytes, lock function, emergency mode, Day/Night function to limit the control value.
• Installation in an installation box.
• Dimensions (H x W x D): 41 x 41 x 12 mm.
• Fast application download (long frame support as of ETS 5).
• 3 year warranty.
