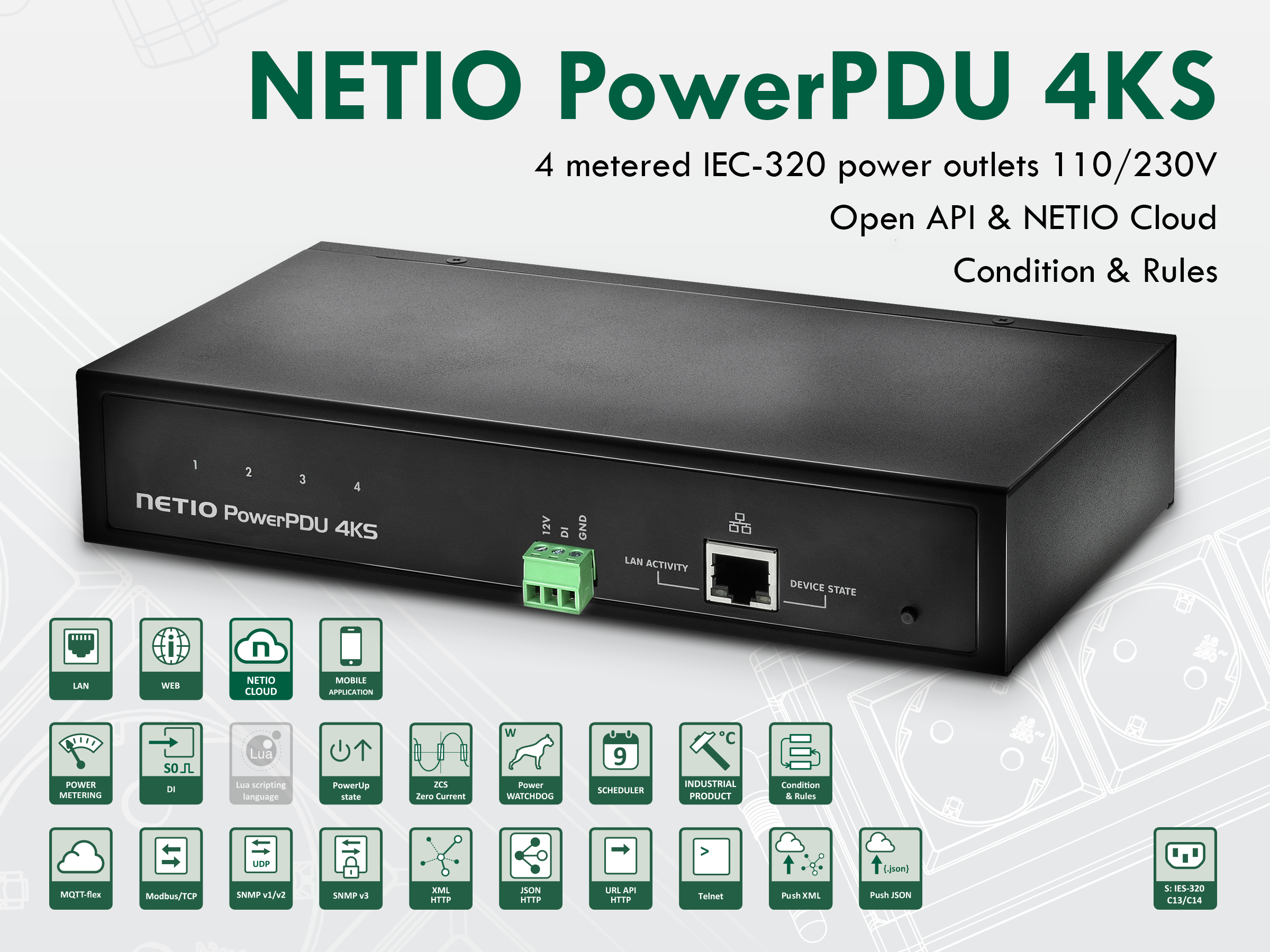

PowerPDU 4KS US, metering

The NETIO Mobile 2 app controls each output individually over LAN (local network) or the NETIO Cloud service.

NETIO Cloud is a TLS-secured service for controlling the outputs from anywhere (Web or Open API).

Open API allows controlling the outputs over the network using various protocols (http XML/JSON, Modbus/TCP, MQTT, SNMP, Telnet and more... ).

AV drivers make it easy to connect NETIO sockets to professional Audio/Video systems such as Neets, CRESTRON, Control4 and more.

Professional product

NETIO PowerPDU 4KS is suitable for industrial applications.

The product works in a wide temperature range (–20°C to +65°C), supports firmware upgrades over the web, remembers the last socket states before being powered off, and its relays switch at zero current.

A power-on delay can be configured for each output.

In this way, the outputs can be switched on in a sequence after a power outage.

Open API: Supported M2M protocols

The open API can use one protocol at a time, chosen from among the supported M2M protocols:

• Modbus/TCP                        AN27, AN22
• MQTT-flex                            AN40
• Telnet                                    AN10
• http URL API                        AN19, AN29
• JSON over HTTP (default)  AN21, AN30, AN42
• http Push JSON
• http Push XML
• XML over HTTP                   AN20, AN31
• SNMP v1                             AN11, AN41
• SNMP v3

The SNMP protocol can be always used in parallel to outher APIs.

Regardless of the Open API used, the device can be always controlled from its web interface and from the NETIO Cloud service.

The customer may use one Open API protocol and the NETIO Cloud service simultaneously.
