DALI 4Ch CC 700mA gem-

DALI 4Ch LED constant current PWM 700mA com -, Uin 12-48V, Uled 3-45V, SwitchDim2, colour&DIM

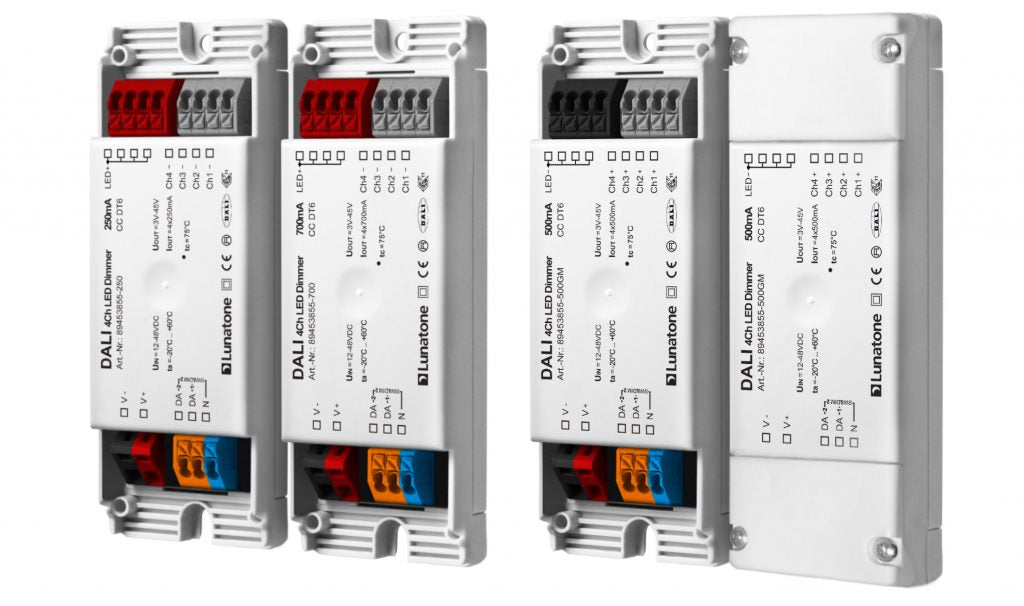

The DALI 4Ch LED Dimmer is an independent control gear, it is suitable for remote ceiling and integration iluminaires.

Ensure proper working cable relief for installation in protection class II equipment.

• The wiring should be carried out as a permanent installation in a dry and clean environment.
• Installation may only be carried out in a voltage-free state of the system and by qualified specialists.
• National regulations for setting up electrical systems must be followed.
• Connect the terminals V+ and V- to a DC supply voltage of category SELV (Safety Extra Low Voltage) according to their label.
• Connect only one wire on each terminal, if twin ferrules are used take care to the maximum wire size.
• The DALI wiring can be realised with standard low-voltage installation material.
• No special cables are required.
• The DALI line may be routed together with the mains voltage (in one cable or as single wires in a tube)
