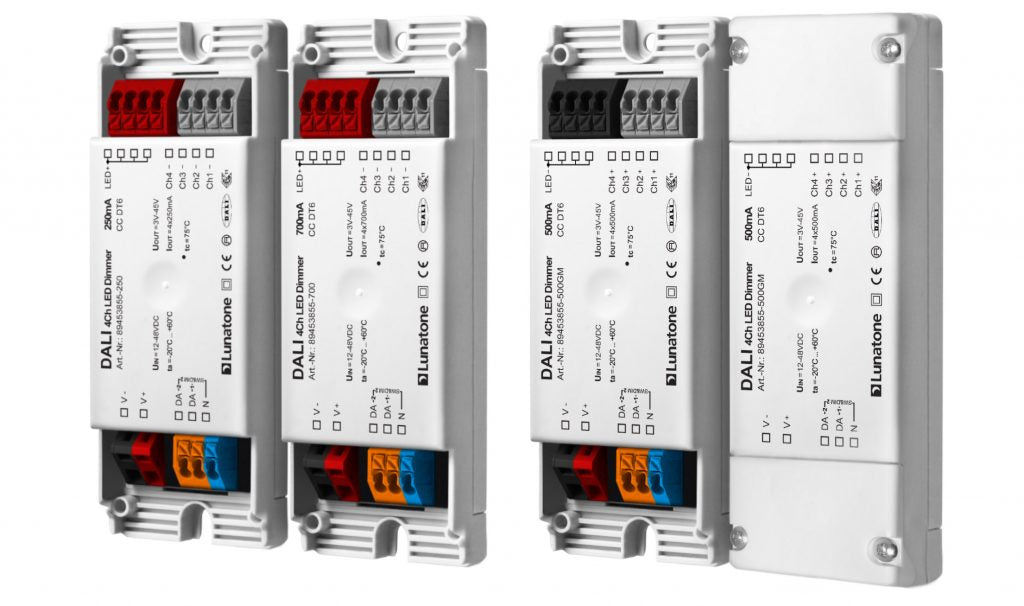

DALI 4Ch CC 700mA gem+

DALI 4Ch LED constant current PWM 700mA com +, Uin 12-48V, Uled 3-45V, SwitchDim2, colour&DIM

The DALI 4Ch LED Dimmer is a standalone control device designed for use in ceiling and luminaire installations.

It is essential that the installation occurs in a dry, clean environment by qualified professionals and with the system powered off to ensure safety.

Adhere to all relevant local electrical regulations during installation.

For proper operation, connect the V+ and V- terminals to a DC power supply of the Safety Extra Low Voltage (SELV) category, following the provided labels.

The DALI-line connections (DA, DA) are polarity-free, allowing for flexible wiring.

When operating in Sw&Dim2 mode, both inputs must be connected to the same electrical phase to function correctly.

The DALI interface is engineered to handle mains voltage, offering built-in protection against potential wiring errors.

This feature ensures the device remains safe and functional even if incorrect connections are made.

Additionally, the DALI wiring can be set up using various topologies, including line, tree, or star configurations, providing versatility in how the dimmer integrates into different lighting setups.
