DALI 4Ch CC 500mA gem+

Overview

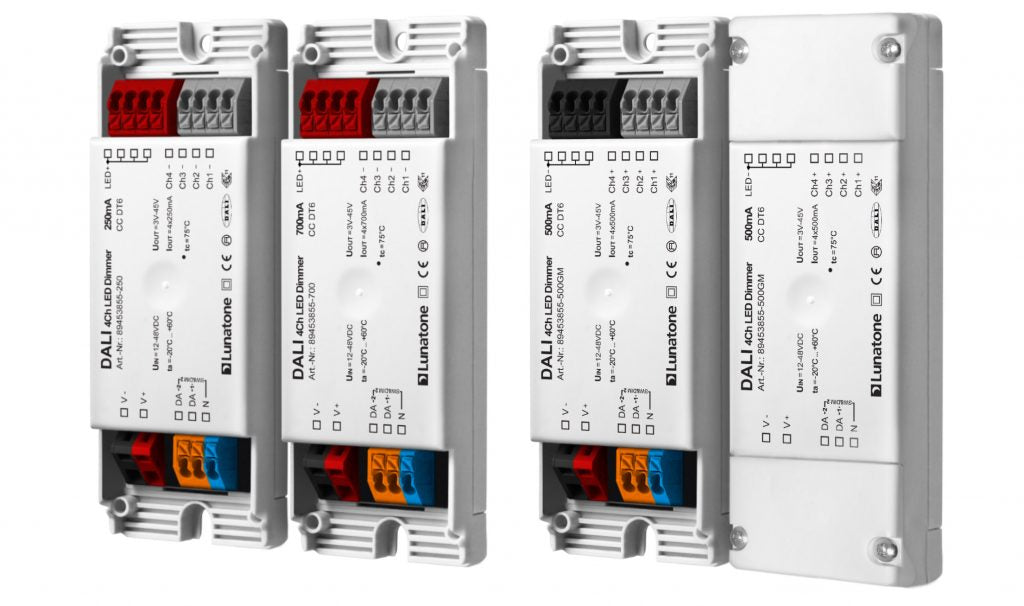

• The 4-channel DALI LED Dimmer is designed for constant current LED modules.
•  It supports two operating modes: DT6 for individual channel control using 4 DALI addresses, and Colour&Dim, which uses 2 DALI addresses—one for light level adjustment and one for color adjustment.
•  Additionally, SwitchDim2 mode allows control of light level and color with 2 switch inputs, bypassing DALI.
• The dimmer offers a dimming range from 0.1% to 100% and comes in versions with a common plus connector for currents up to 500mA or a common minus connector (GM) for currents up to 700mA.
• It is an independent control gear suitable for integrating into luminaires (Class II) and for remote ceiling installations.
• The device operates with a supply voltage of 12V to 48V DC and provides an output voltage of up to 45V DC.
• This flexibility makes it a versatile choice for various lighting applications, ensuring effective control and integration in different setups.
