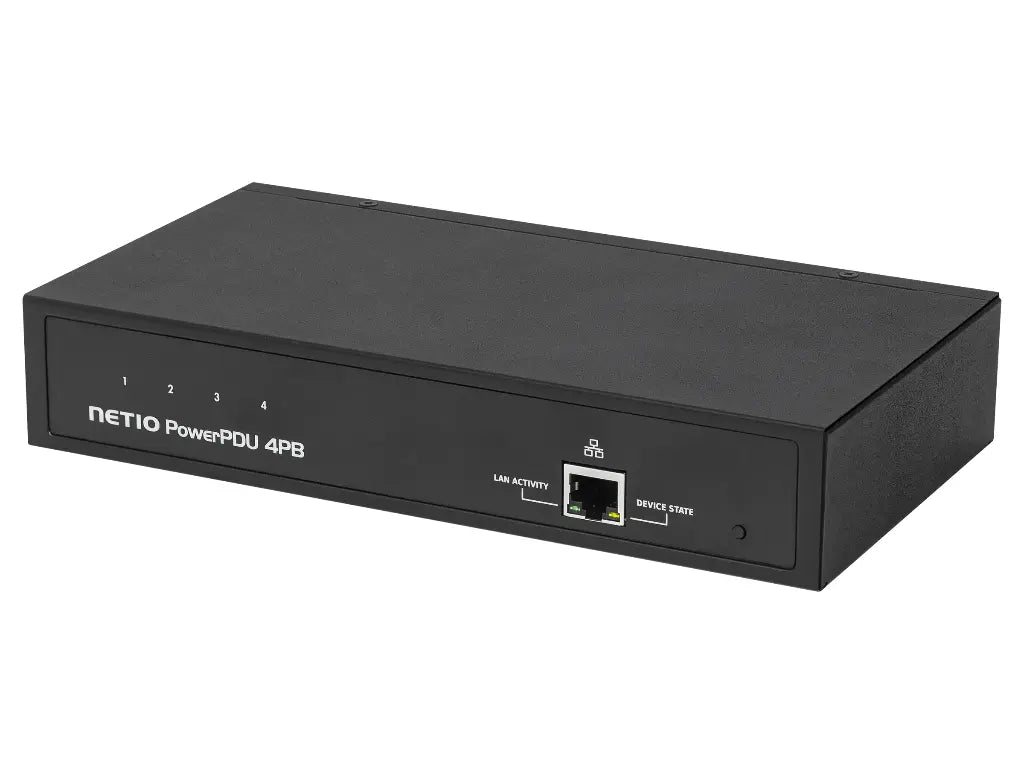

PowerPDU 4PB US, non metering

NETIO PowerPDU 4PB can be configured with a web browser (allows output control, connection to NETIO Cloud, Open API communication settings, etc.).

Each output can be turned off and on individually.

Ready-made AV drivers make it simple to connect the NETIO PDU to professional Audio/Video systems such as BrightSign, Crestron, Control4, Atlona, Utelogy, Qsys, RTI, SAVANT, SKAARHOJ and more.
Thanks to the Open API, integration with third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy.

With the NETIO Cloud service, the outputs can be controlled from anywhere.

The NETIO Cloud service, provided for a fee, uses SSL security and servers in Europe.

The NETIO Mobile 2 app controls each output individually over LAN (local network).

The Power-Up sequence or power-up delay can be configured for each output.

Mechanical button (dry contact) or an external temperature sensor can be connected to the green DI input.

By pressing a button or a temperature value, the defined output(s) can be switched using C&R (Condition & Rules) conditions.

Typical applications

1. Several PowerPDU 4PB units are typically used in IT data-centers for electricity distribution in a 19" rack (cabinet) with our rack holders.
2. Vertical or horizontal montage is available.
3. Saving energy in meeting rooms (Scheduler switches equipment on/off at predefined time).
4. Controlling the power (to TV sets, audio systems, lighting) from various AV systems in stores, smart homes, museums, digital signage applications.
