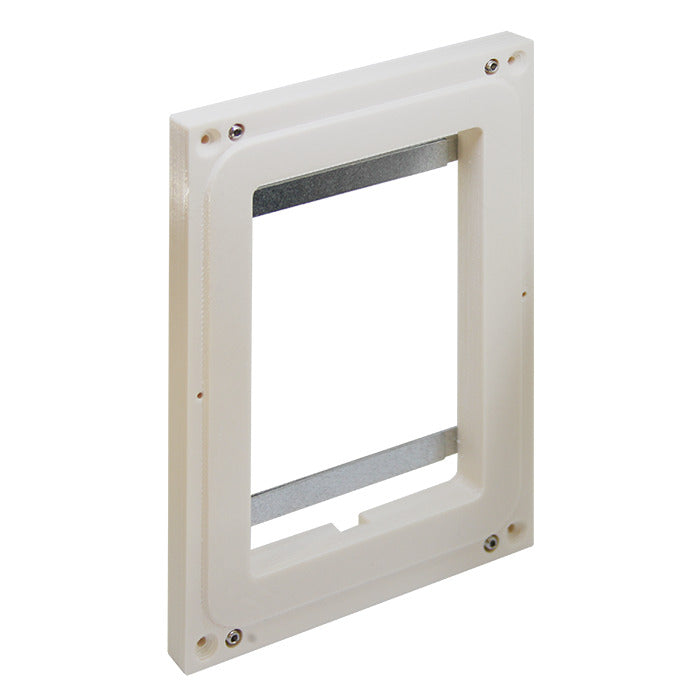

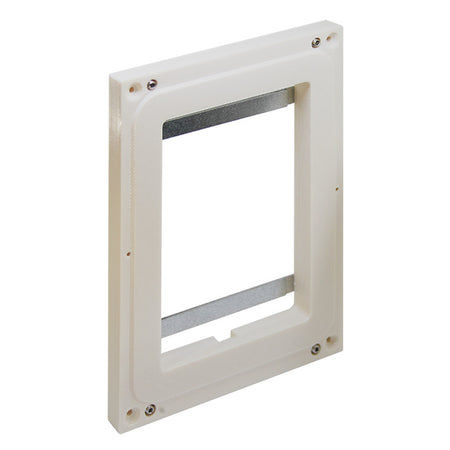

Flush mounting adapter for VERSO 2 / VERSO+IP 2

Cut an opening in the wall and drill and countersink the holes for the mounting screws as per the dimensions shown in the diagram.
2. Screw the backplates to the wall. The backplates must overlap the wall opening by 20 mm approx.
3. Place the adapter into the opening. Use a level tool to align the adapter horizontally or vertically, then screw the mounting guide to the wall.
4. Use the supplied Allen key to adjust the four blind set screws until the screw tips reach the backplates.The adapter surface must be flush with the wall.
5. Gently screw the adapter to the backplates (1) and remove the mounting guide (2). If
required, adjust the blind set screws again.
6. Apply finishing plaster to the marked areas in order to fill the drilling holes and gaps (1).
Once the plaster is dry, proceed with the painting of the wall (2). Avoid painting the inner sides of the adapter.
7. Insert the removal screw into the Iddero VERSO / VERSO+IP (1); the screw will be held in place magnetically.

Finally (2), make all connections and place the device in the adapter; the device will be fixed to the metal brackets magnetically.
