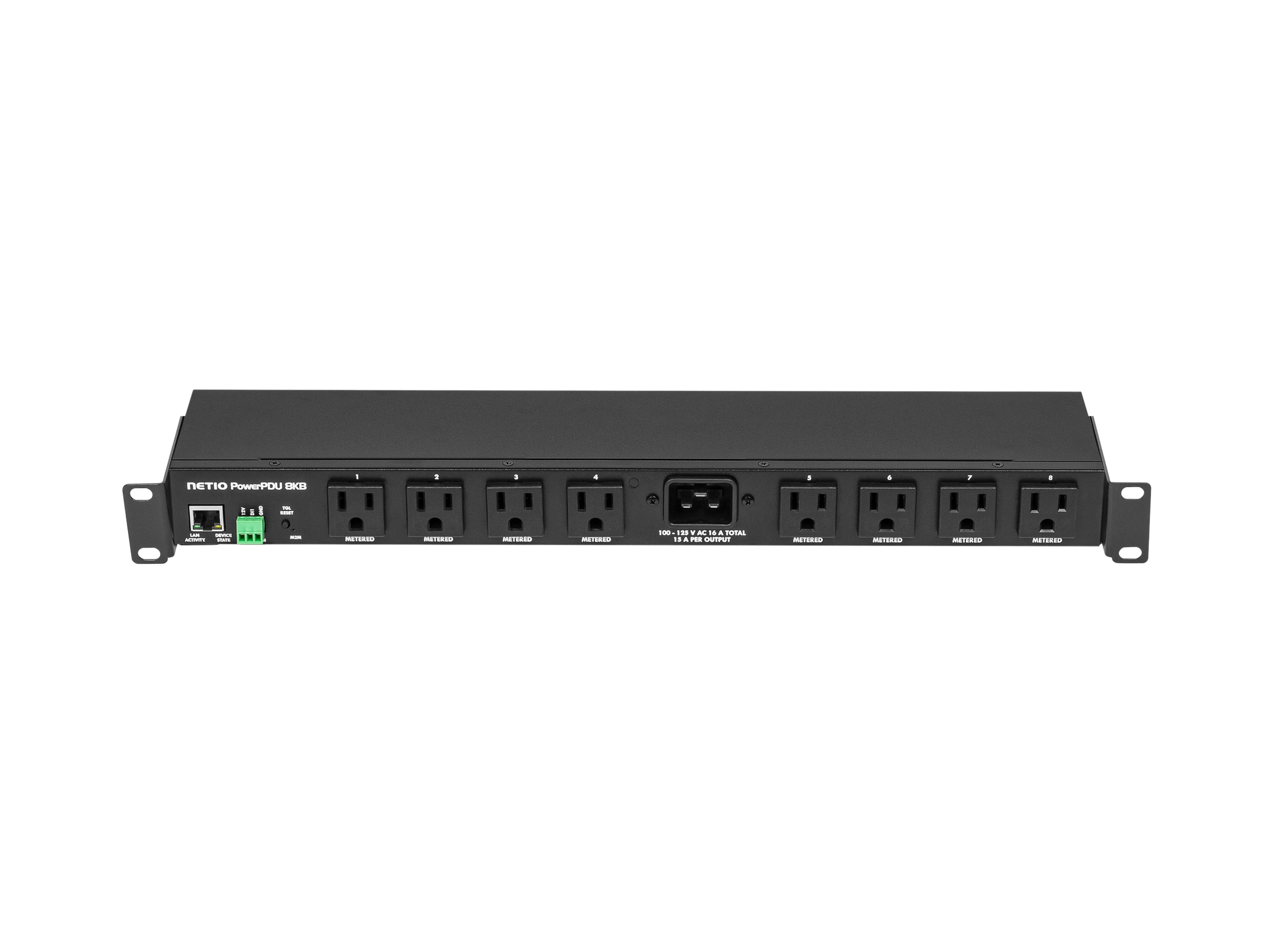

PowerPDU 8KB US, full metering

NETIO PowerPDU 8KB can be configured with a web browser (allows output control, connection to NETIO Cloud, Open API communication settings, etc.).

Each output is separately metered and can be turned off and on individually.

Ready-made AV drivers make it simple to connect the NETIO PDU to professional Audio/Video systems such as BrightSign, Crestron, Control4, Atlona, Qsys, Kramer, RTI, SAVANT, SKAARHOJ, Utelogy and more.
Thanks to the Open API, integration with third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy.

With the NETIO Cloud service, the outputs can be controlled from anywhere.

The NETIO Cloud service, provided for a fee, uses SSL security and servers in Europe.

The NETIO Mobile 2 app controls each output individually over LAN (local network).

The PowerUp sequence or power-up delay can be configured for each output.

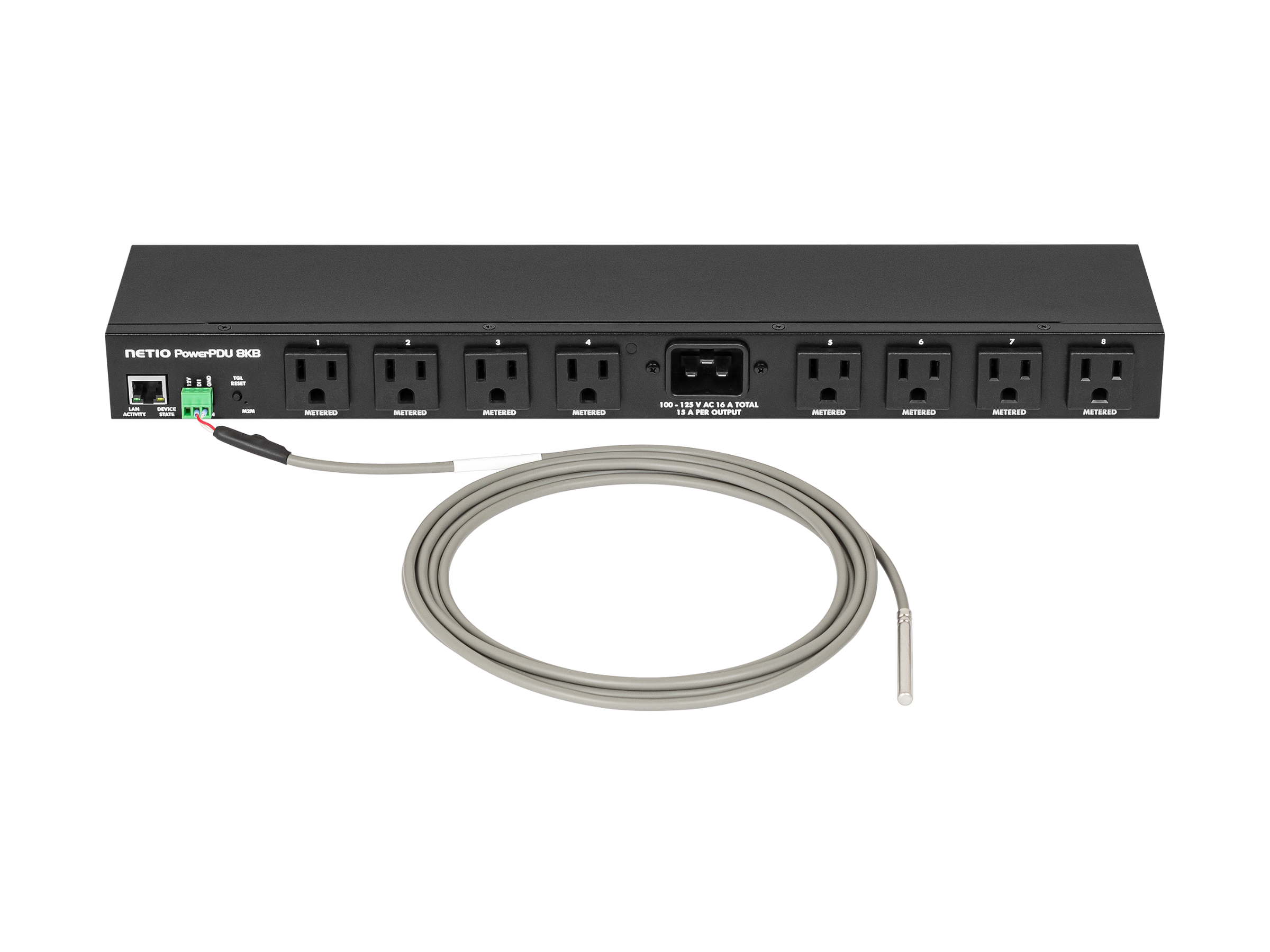

Mechanical button (dry contact) or an external temperature sensor can be connected to the green DI input.

By pressing a button or a temperature value, the defined output(s) can be switched using C&R (Condition & Rules) conditions.

Typical applications

1. The PowerPDU 8KB can be used for power balancing due to energy metering on each output.
2. Several PowerPDU 8KB units are typically used in IT data-centers for electricity distribution in a 19" rack (cabinet). Vertical or horizontal montage is available.
3. With using external T1 temperature sensor can be used thermostat feature to ativate additional cooling in case of too high temperature.
4. High temperature email alerting via NETIO Cloud can be realized in case of high temperature with external T1 temperature sensor.
5. Saving energy in meeting rooms (Scheduler switches equipment on/off at predefined time).
6. Controlling the power (to TV sets, audio systems, lighting) from various AV systems in stores, smart homes, museums, digital signage applications.
